Hydraulic vibroflot Equipment for sale

Hydraulic vibroflot Equipment for sale

Hydraulic vibroflot Equipment for sale

Product Details:

Place of Origin: china
Brand Name: zealchon
Certification: iso
Model Number: zcq300

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 20000 per set
Packaging Details: wooden box
Delivery Time: 7days
Payment Terms: L/C, Western Union
Supply Ability: 100 per set / month
Contact Now
Detailed Product Description
Vivration Force: 208 KN Max. Speed:: 1450 R/min
Max. Amplitude: 17.2 Mm

Product type


Now the main production:



30KW type vibrator,

45KW type vibrator,

55KW type vibrator,

75KW type vibrator,

100KW type vibrator,

130KW type vibrator,

150KW type vibrator,

180KW type Vibro device.



Vibroflot Soil Compactors


Quality engineering for the most challenging stone column and sand compaction Vibroflot applications. Go deeper and build wider columns now!



Our Hydraulic Vibroflot is a deep vibration technology that packs loose sand or gravel more densely, increasing the density of the soil and its load bearing capacity. Hydraulic Vibroflots are powered by our power packs, and therefore more reliable and efficient than electrically powered equipment. The Vibroflot can be used in tandem where high efficiency is required. The two primary deep vibration techniques are Vibro Compaction and Vibro Replacement. The V180 and V230 models suit differing applications and soil types.



VIBRO COMPACTION

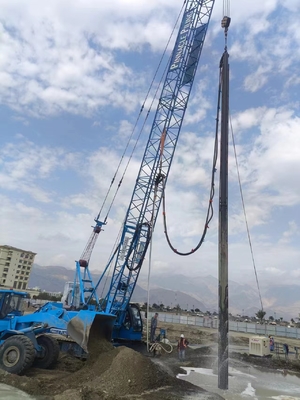

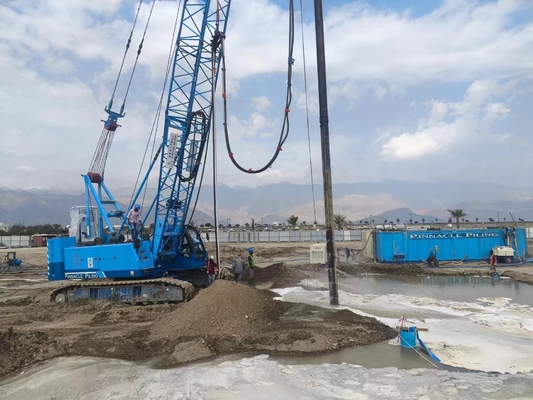

Vibro Compaction is a deep compaction technique for densifying granular soils with less than 10 – 15% silt present. This method is popular for improving reclaimed land. Under the influence of simultaneous vibration and saturation, loose sand and or gravel particles are repacked into a denser state and lateral confining pressure within the soil mass is increased. The Vibroflot is normally suspended from a standard crawler crane or a piling rig.


VIBRO REPLACEMENT

Vibro Replacement is a technique used in soils that do not respond well to vibration alone. (too stiff, more than 15% silt). The improvement is achieved by creating columns of either crushed stone or concrete (which can be reinforced). The process enables increased load bearing, reduces settlement and even improves the shear resistance of the ground being treated. Stone columns are typically constructed with a bottom feed tube that deposits gravel from a hopper right at the tip of the vibroflot.



Hydraulic vibroflot Equipment for sale





ZCQ series variable frequency electric drive Vibroflot technical parameters



Hydraulic vibroflot Equipment for sale





Factory introduction:



we are located in the historic city of China - the ancient capital of Xi'an Chanba New Area, location and convenient transportation, adjacent to China's largest inland port - Xi'an International Port District and a number of Expressway, exit from the motorway just a few hundred meters. Established in 1987, is set research and development, production, sales, promotion as one of the weak foundation and construction machinery are widely used trenchless technology engineering company. Enterprises always adhere to the quality first, the credibility of the first, with technical superiority, strong professional strength and excellence and pioneering spirit of forging ahead in Vibroflot development, production and sales, always in the same industry-leading level.
Enterprise since its inception, with its own tenacious struggle, flexible and efficient management system and a high level of technical research and development, from weak to strong, continue to occupy the domestic market and exported to overseas, sales rose, after twenty years of effort, It has become a domestic and international Vibroflot production and construction technology leader.



Hydraulic vibroflot Equipment for sale
