|Place of Origin:||China|
|Minimum Order Quantity:||1 set|
|Packaging Details:||wooden box|
|Payment Terms:||L/C, T/T, Western Union|
|Rated Power:||180||Rotating Speed:||1450|
|Current Rating:||256||Vibration Frequency:||24|

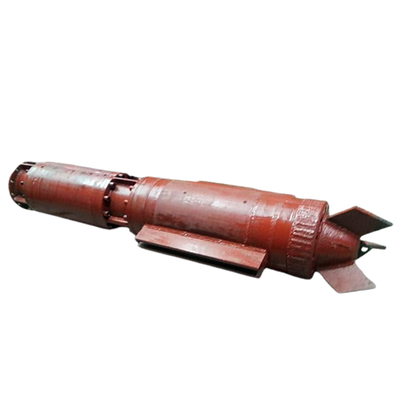

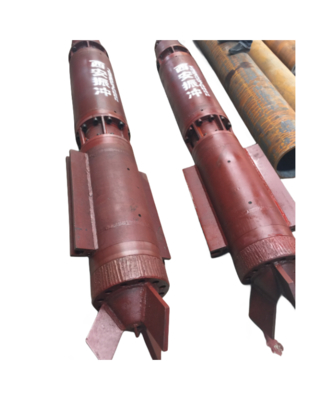

ZCQ180 Vibroflot Equipment for Vibroflotation stone piles for Ground Improvement Engineering

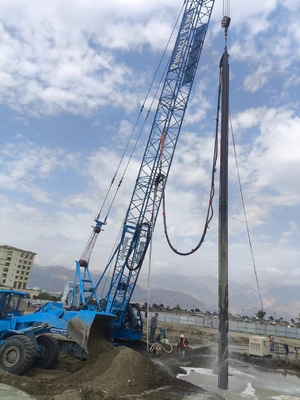

Vibro Compaction is a deep compaction technique for densifying granular soils with less than 10 – 15% silt present. This method is popular for improving reclaimed land. Under the influence of simultaneous vibration and saturation, loose sand and or gravel particles are repacked into a denser state and lateral confining pressure within the soil mass is increased. The Vibroflot is normally suspended from a standard crawler crane or a piling rig.

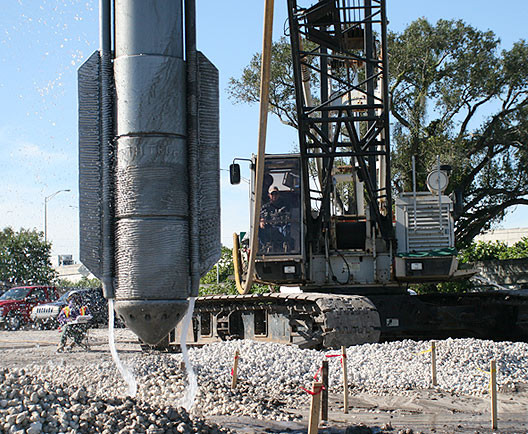

Vibro Replacement is a technique used in soils that do not respond well to vibration alone. (too stiff, more than 15% silt). The improvement is achieved by creating columns of either crushed stone or concrete (which can be reinforced). The process enables increased load bearing, reduces settlement and even improves the shear resistance of the ground being treated. Stone columns are typically constructed with a bottom feed tube that deposits gravel from a hopper right at the tip of the vibroflot.
ZCQ series variable frequency electric drive Vibroflot technical parameters
|Rotating speed||r/mim||1450 (1950)||1450 (1950)||1450 (1950)||1450 (1950)||1450 (1950)|
|Empty vibration amplitude||mm||≥18||≥16||≥15||≥15||≥16|
|Empty LO current||A||≤35||≤40||≤50||≤60||≤70|
|The outer diameter of the body||mm||351||377||426||426||426|
|The total mass||kg||1000||1350||1800||1950||2200|
we are located in the historic city of China - the ancient capital of Xi'an Chanba New Area, location and convenient transportation, adjacent to China's largest inland port - Xi'an International Port District and a number of Expressway, exit from the motorway just a few hundred meters. Established in 1987, is set research and development, production, sales, promotion as one of the weak foundation and construction machinery are widely used trenchless technology engineering company. Enterprises always adhere to the quality first, the credibility of the first, with technical superiority, strong professional strength and excellence and pioneering spirit of forging ahead in Vibroflot development, production and sales, always in the same industry-leading level.
Enterprise since its inception, with its own tenacious struggle, flexible and efficient management system and a high level of technical research and development, from weak to strong, continue to occupy the domestic market and exported to overseas, sales rose, after twenty years of effort, It has become a domestic and international Vibroflot production and construction technology leader.

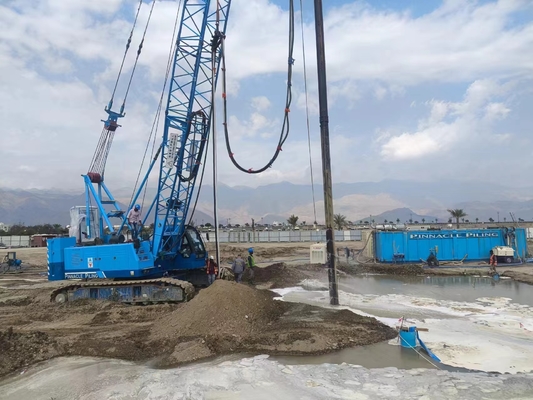

Previous project pictures
China Sinopec Hainan commercial crude oil reserve base project
HZMB Island tunnel project
China Sinopec Caofeidian crude oil commercial reserve base library project
Companies based in China, the world. Actively explore the international market, international sales companies are mainly concentrated in Africa, the Middle East and Asian countries, including: Benin, Sri Lanka, Indonesia, Malaysia, Algeria and other countries, and high customer credibility and visibility.
1, Chinese Embassy in Benin project equipment procurement negotiations
2,Indonesia Port and foundation construction of offshore Vibro
