Place of Origin: | China |
Brand Name: | zealchon |
Certification: | ISO CE |
Model Number: | ZCQ100kw |
Minimum Order Quantity: | 1 set |
---|---|
Price: | $25000 |
Packaging Details: | wooden box |
Delivery Time: | 7days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 100sets/month |
Rated Power: | 100KW | Rotating Speed: | 1450 (1950) |
---|---|---|---|
Current Rating: | 196A | Vibration Frequency: | 24HZ |
Moment: | 78N.M | Exciting Force: | 190-350 |

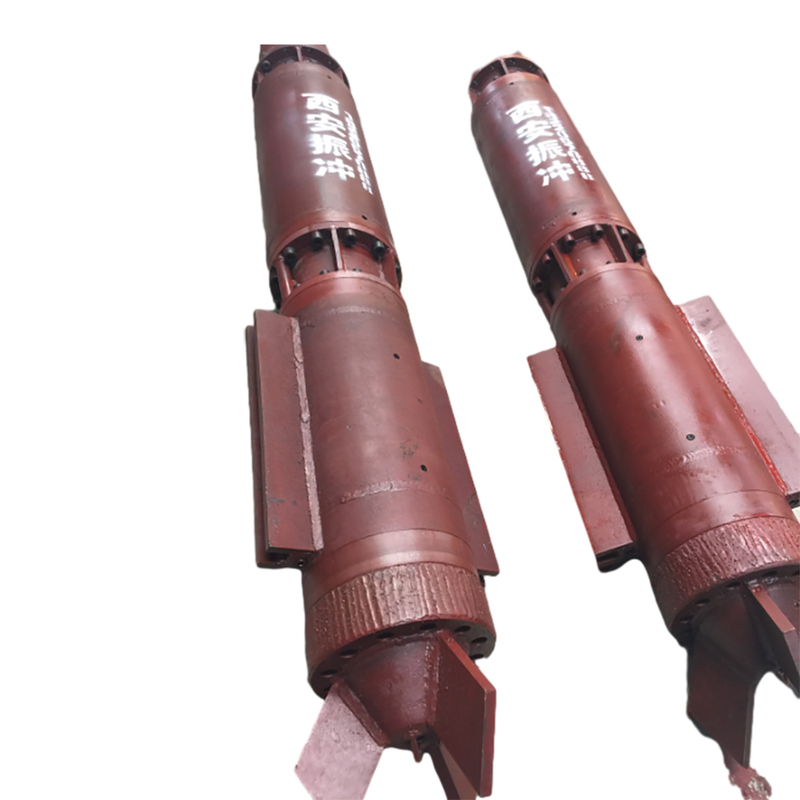

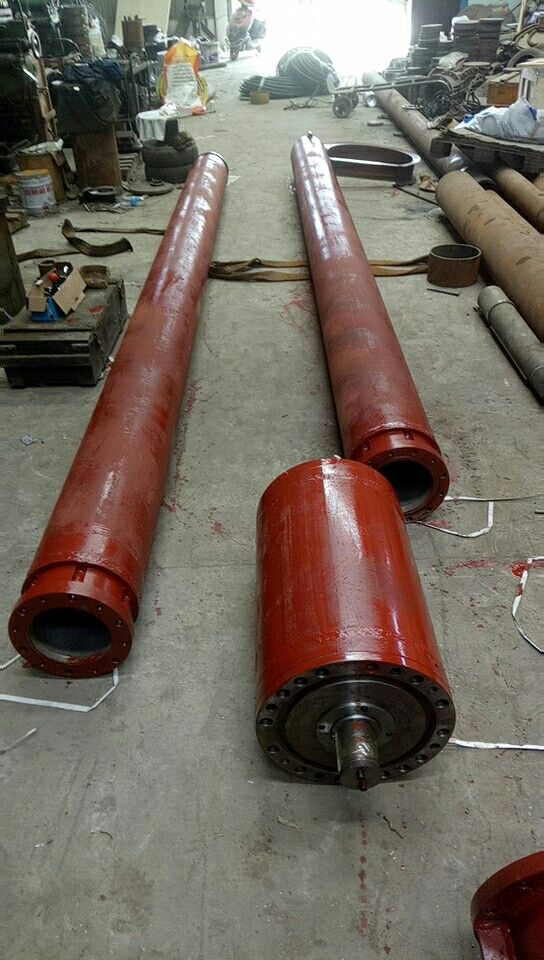

ZCQ100kw Electric vibroflot for Factory Large Construction Site Electric Vibroflotation Machine
Method of vibrating infusion (referred vibroflotation) is the use of in situ ground vibration system fast gravel pile reinforcing soft foundation approach. Since the Chinese use of this method of construction since the early seventies, civil construction range from a single progressive development of industrial building foundation treatment, dam treatment, thermal power plant based on the railway embankment and station, highway roadbed and field stations , station construction, port terminals, storage tanks and defense facilities of the airport runway.
Vibro single 30KW from the beginning, developed to 30KW, 45KW, 55 KW, 75KW, 100 KW, 130KW, 150KW, 180KW and other models complete specifications of products, can meet the basic construction almost ground under various conditions.
Construction depth for a few meters starting from the initial period of development to the present 20-30 meters.
Construction area from the beginning of the coast, along the river to today's east Heilongjiang, Xinjiang, Tibet, south of Hainan Island, Guangdong, Inner Mongolia and north to the Gobi desert.
Vibroflotation after decades of development, it has been widely used in China on the basis of treatment.

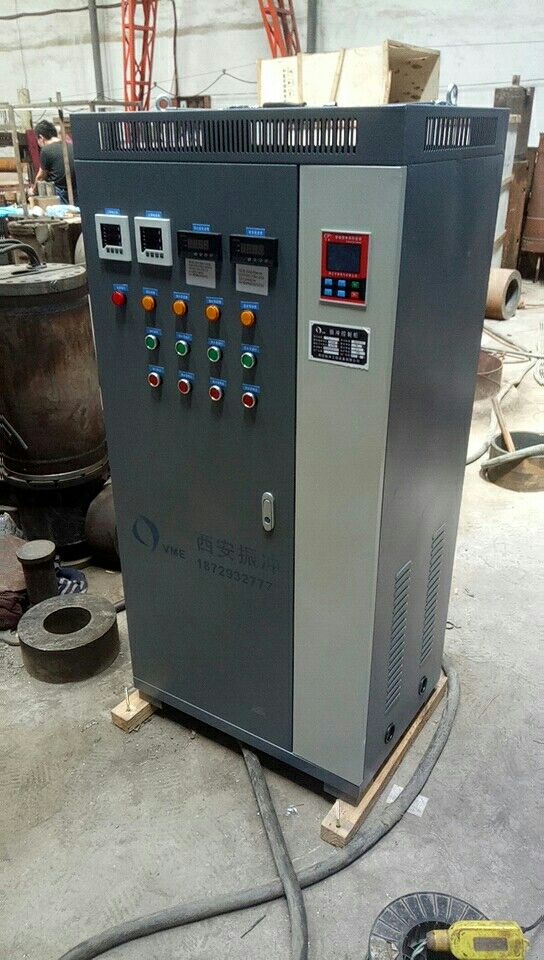

ZCQ series variable frequency electric drive Vibroflot technical parameters
specification | ZCQ45 | ZCQ55 | ZCQ75 | ZCQ100 | ZCQ130 | ||
Vibro Motor |
rated power | kw | 45 | 55 | 75 | 100 | 130 |
Rotating speed | r/mim | 1450 (1950) | 1450 (1950) | 1450 (1950) | 1450 (1950) | 1450 (1950) | |
Current Rating | A | 86 | 110 | 150 | 196 | 256 | |
Vibration move machine body |
Vibration frequency | HZ | 24 | 24 | 24 | 24 | 24 |
Moment | N.m | 47 | 56 | 69 | 78 | 88 | |
Exciting force | kN | 110-200 | 130-235 | 180-325 | 190-350 | 210-380 | |
Empty vibration amplitude | mm | ≥18 | ≥16 | ≥15 | ≥15 | ≥16 | |
Empty LO current | A | ≤35 | ≤40 | ≤50 | ≤60 | ≤70 | |
The outer diameter of the body | mm | 351 | 377 | 426 | 426 | 426 | |
Body length | mm | ≤2230 | ≤2465 | ≤2600 | ≤2750 | ≤2860 | |
The total mass | kg | 1000 | 1350 | 1800 | 1950 | 2200 |

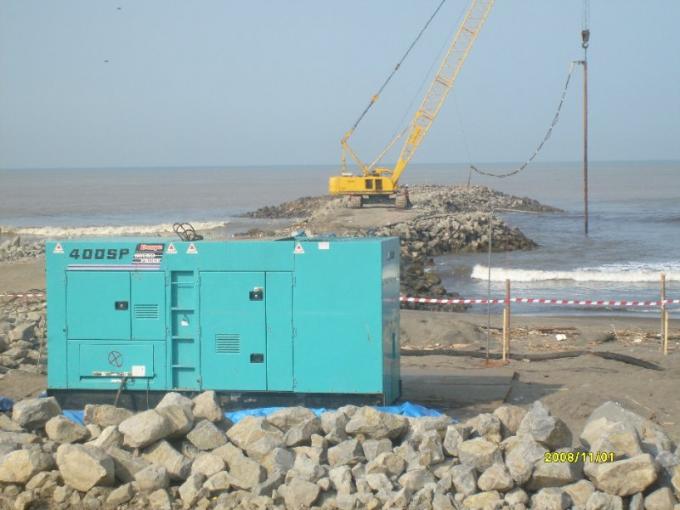

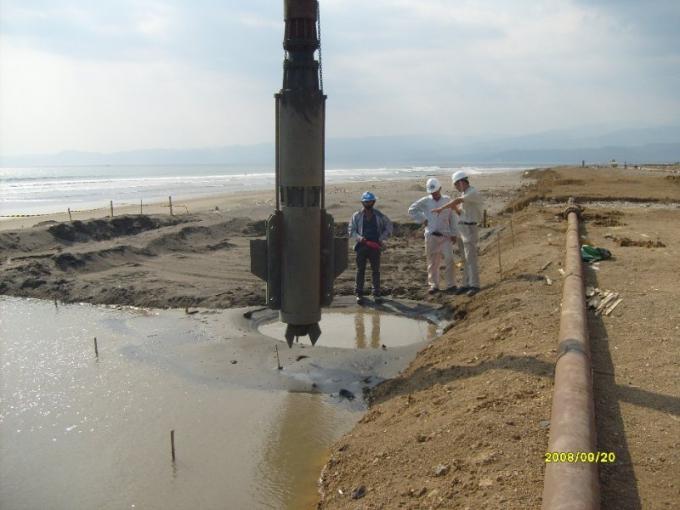

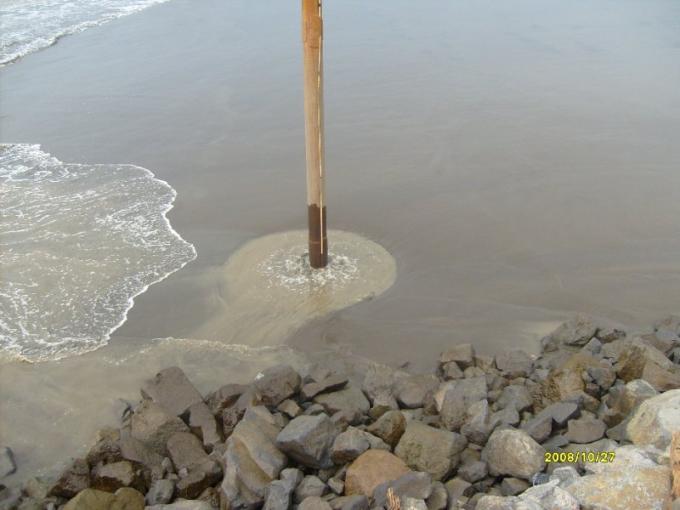

Previous project pictures
China Sinopec Hainan commercial crude oil reserve base project
HZMB Island tunnel project
