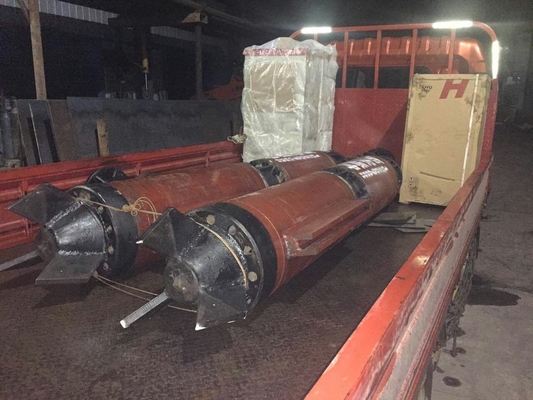

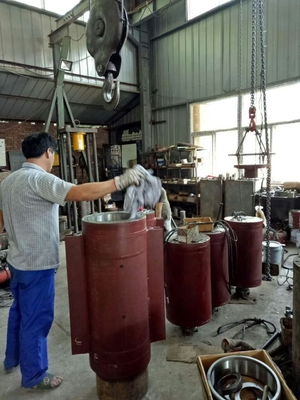

ZCQ75 Earth Tech Vibro replacement for Vibroflot Equipment for stone columns

ZCQ75 Earth Tech Vibro replacement for Vibroflot Equipment for stone columns

    • ZCQ75 Earth Tech Vibro replacement for Vibroflot Equipment for stone columns
    • ZCQ75 Earth Tech Vibro replacement for Vibroflot Equipment for stone columns
    • ZCQ75 Earth Tech Vibro replacement for Vibroflot Equipment for stone columns
    • ZCQ75 Earth Tech Vibro replacement for Vibroflot Equipment for stone columns
    • ZCQ75 Earth Tech Vibro replacement for Vibroflot Equipment for stone columns
    • ZCQ75 Earth Tech Vibro replacement for Vibroflot Equipment for stone columns
  • ZCQ75 Earth Tech Vibro replacement for Vibroflot Equipment for stone columns

    Product Details:

    Place of Origin: China
    Brand Name: zealchon
    Certification: ISO CE
    Model Number: ZCQ75

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: $25000
    Packaging Details: wooden box
    Delivery Time: 7days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100sets/month
    Contact Now
    Detailed Product Description
    Rated Power: 75KW Rotating Speed: 1450 (1950)
    Current Rating: 150 Vibration Frequency: 24
    Moment: 69 Exciting Force: 180-325

    Product Description



    Application


    Mixed and fine-grain soils frequently have an insufficient bearing capacity and stiffness. Should the fine grain share be around 5% higher, an adequate self-compaction is no longer to be expected. This is where the vibro replacement compacting comes into question as an improvement. This process is also suitable for the improvement of coarse-grain backfills comprising rubble, slag or overburden.



    A special area of application are vibro drain columns. Flotation is dispensed with hereby. The column then merely acts as a drain.



    ZCQ75 Earth Tech Vibro replacement for Vibroflot Equipment for stone columns



    ZCQ75 Earth Tech Vibro replacement for Vibroflot Equipment for stone columns







    Function

    The vibro replacement

    In most cases, a bottom feed vibrator is used, with which a coarse-grain fill material is discharged at the tip of the vibrator with compressed air support. The vibrocats with a leader that have been designed by Keller provide an additional pull-down pressure to be applied when the vibrator is being lowered and is compacting.

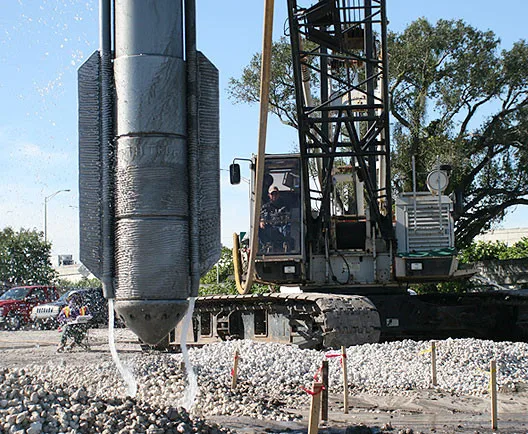

    In vibro replacement compacting, the work is carried out in alternate steps. The gravel or crushed stones that are discharged from the vibrator hub are compacted and displaced into the soil at the side. This results in the formation of replacement columns that bear the loads in connection with the soil. The creation parameters are digitally recorded in the device.









    ZCQ75 Earth Tech Vibro replacement for Vibroflot Equipment for stone columns



    ZCQ series variable frequency electric drive Vibroflot technical parameters







    specification ZCQ45 ZCQ55 ZCQ75 ZCQ100 ZCQ130
    Vibro
    Motor
    rated power kw 45 55 75 100 130
    Rotating speed r/mim 1450 (1950) 1450 (1950) 1450 (1950) 1450 (1950) 1450 (1950)
    Current Rating A 86 110 150 196 256
    Vibration
    move
    machine
    body
    Vibration frequency HZ 24 24 24 24 24
    Moment N.m 47 56 69 78 88
    Exciting force kN 110-200 130-235 180-325 190-350 210-380
    Empty vibration amplitude mm ≥18 ≥16 ≥15 ≥15 ≥16
    Empty LO current A ≤35 ≤40 ≤50 ≤60 ≤70
    The outer diameter of the body mm 351 377 426 426 426
    Body length mm ≤2230 ≤2465 ≤2600 ≤2750 ≤2860
    The total mass kg 1000 1350 1800 1950 2200
