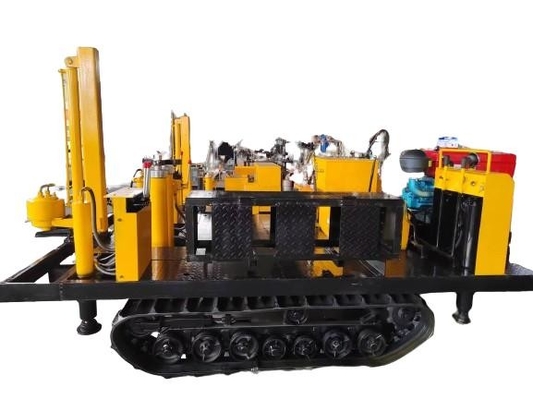

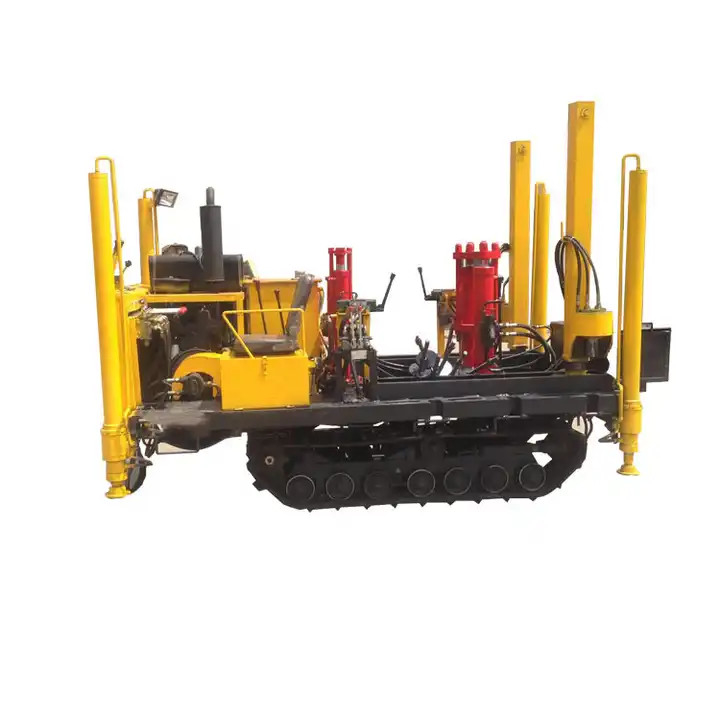

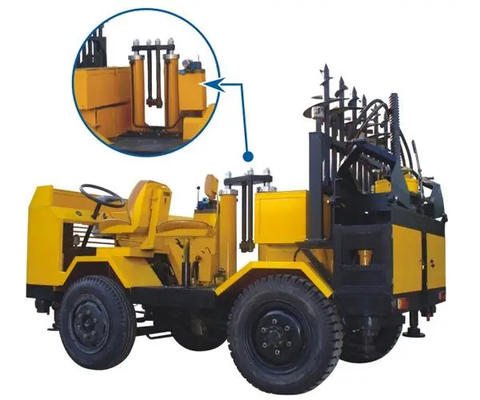

DYLC Geotechnical site investigation rigs for static cone penetrometer with 200 kN pushing capacity

DYLC Geotechnical site investigation rigs for static cone penetrometer with 200 kN pushing capacity

    • DYLC Geotechnical site investigation rigs for static cone penetrometer with 200 kN pushing capacity
    • DYLC Geotechnical site investigation rigs for static cone penetrometer with 200 kN pushing capacity
  • DYLC Geotechnical site investigation rigs for static cone penetrometer with 200 kN pushing capacity

    Product Details:

    Place of Origin: China
    Brand Name: zealchon
    Certification: CE
    Model Number: DYLC

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 10000-12000 usd
    Packaging Details: wooden box
    Delivery Time: 7 days
    Payment Terms: L/C, D/P, T/T, Western Union
    Supply Ability: 100 sets/ month
    Contact Now
    Detailed Product Description
    Power(diesel Engine): 13.2 Drilling Depth: 130
    Max Drilling Diameter: 480 Driving Pipe: 53x59x4200

    Product Description



    Application of drilling rig





    1. Applied for general investigation, geophysical exploration, highway, building construction and blast-hole drilling etc.



    2. with hydro-automatic feeding device, and high drilling efficiency.

    3. Designed with hydro-chucking unit instead of slips to ensure drilling from stop when changing pipes.
    4. Close levers, convenient to operate, safe and reliable operations.

    5. Crawler type, suitable for rugged venue operations, very easy to move and transport;
    6. Light in weight, easy disassembling for transportation and applicable to working conditions in plain and mountain areas.







    Specification of drilling rig





    Model Items Unit Specification
    1 structure / Rotary
    2 power(diesel engine) kW 13.2
    3 Working dimension mm 3250x1400x7000
    4 weight kg 2300
    5 Drilling depth m 130
    6 Max drilling diameter mm Ø480
    7 Driving pipe/drill pipe mm 53x59x4200 /Ø50
    8 Drill bits mm Ø75- Ø220
    9 rotary speed r/min 142;285;570
    10 Hoisting machine Diameter of roll mm Ø140
    Single ling lifting speed m/min 0.41;0.82;1.64
    Max.single line hoisting capactiry t 0.96
    coiling length m 27
    Steel wire rope mm Ø9.3
    11

    Twoer



    Rate load t 3
    Effective height m 6.5
    Model lift and telescopic hydraulic tower
    12 Water fault Max.lifting capacity t 4
    Diameter of rubber duct mm Ø38
    13 Mud pump model / BW95A
    Flow L/min 95
    pressure m 1.5
    Reciprocating frequency Times/min 93







    Packaging & Shipping

    DYLC Geotechnical site investigation rigs forstatic cone penetrometer with 200 kN pushing capacityDYLC Geotechnical site investigation rigs forstatic cone penetrometer with 200 kN pushing capacityDYLC Geotechnical site investigation rigs forstatic cone penetrometer with 200 kN pushing capacity
