Name: XU-100 XU-100 Alloy Coating Composition Anaysis Energy Dispersive X-ray Fluorescence Analyzer
Brand: Xian Zealchon Electronic Technology Co., Ltd.
SKU: XU-100
Price: 14600 USD
Availability: InStock

Home Products analyzer

XU-100 XU-100 Alloy Coating Composition Anaysis Energy Dispersive X-ray Fluorescence Analyzer

Product Details:

Place of Origin:	China
Brand Name:	zealchon
Certification:	ISO
Model Number:	XU-100

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	$14600
Packaging Details:	wooden box
Delivery Time:	7days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100sets/month

Contact Now

Detailed Product Description

Thickness Plating Element Analysis Range:	From Li(3)-U(92),23coatings And 24 Elements Can Be Analyzed	Element Analysis:	EFP
Software Element Analysis Range:	Cl(11)-U(92)	Analysis Time:	1-30s
Collimator Standard:	ф0.1mm，ф0.2mm，ф0.5mm

Product Description

Specification

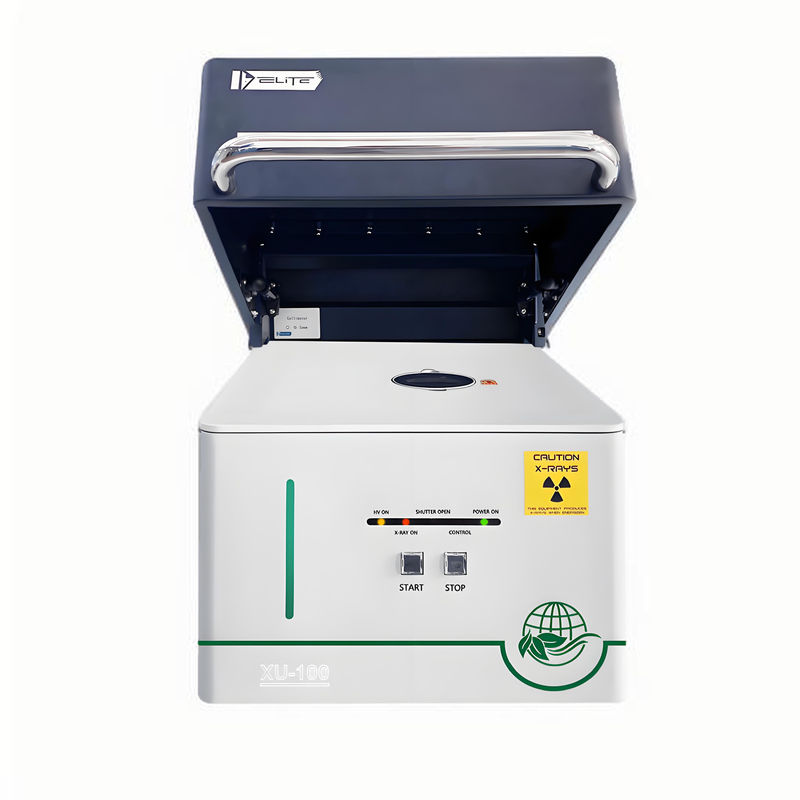

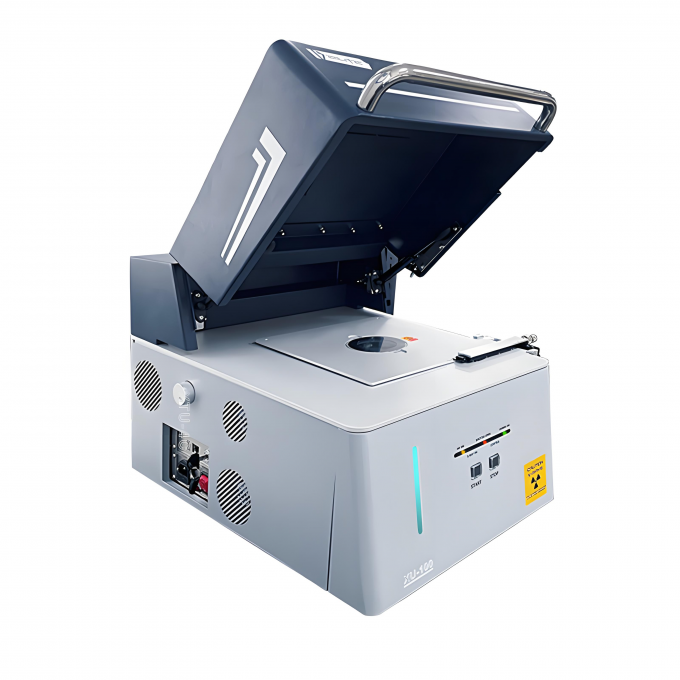

XU-100 is a cost-effective spectrometer with compact design and excellent performance, which is widely used in coating thickness analysis.Equipped with micro-focusingX-ray generator and vertical optical path system, together with zoom ranging device and powerful EFP software, and a bottom-up measuring and C slot open housing design, it can conduct non-destructive detection for complex surface shapes even groove parts effectively and accurately.
The lowest detect limitation goes to 0.005μm, and the measuring distance range from 0-30mm.

item	value
Warranty	1 year
Customized support	OEM
Place of Origin	China
	Shaanxi
Brand Name	zeaclchon
Model Number	XU-100
Power	Electronic
Detector:	Si-Pin145Kev±5
Testable Elements:	Any 20 Elements from whole elements (Na~U)
Detection limit:	100ppm Best substance effect
High Voltage:	0~50KV/0~1MA
Main Structure:	High-strength metal frame and industry plastic shell
Product name	coating thickness analysis
Application	coating thickness analysis
Usage	Coating thickness
Weight	30kg
