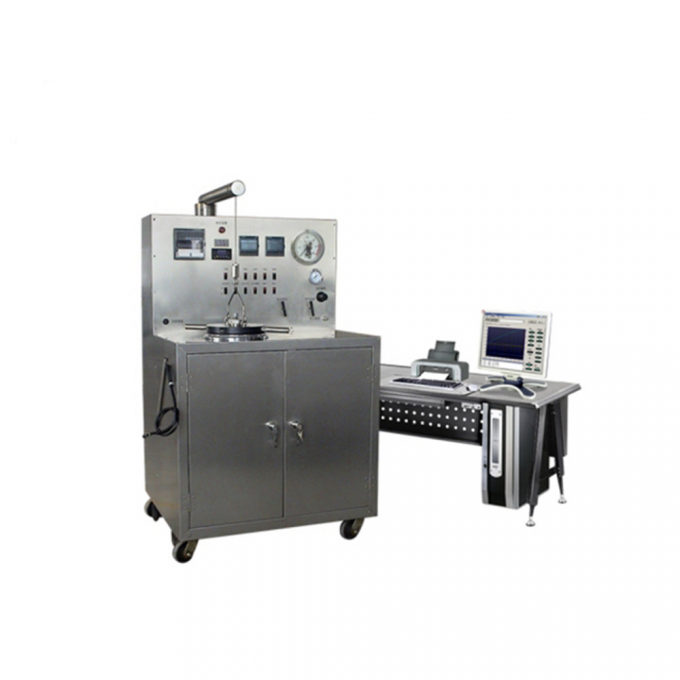

8040D Desktop HPHT Consistometer for Testing the Thickening Time of Slurry

Product Details:

Place of Origin:	China
Brand Name:	zealchon
Certification:	CE ISO
Model Number:	8040D

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	$54000
Packaging Details:	wooden box
Delivery Time:	7days
Payment Terms:	L/C, Western Union, MoneyGram, T/T
Supply Ability:	100sets/month

Contact Now

Detailed Product Description

Maximum Temperature Reaches:	315℃	The Highest Working Pressure:	275Mpa
Rotary Speed Of Slurry Cup:	150r/min	Heater Power:	4000W
Rated Frequency:	VAC220±10% 50/60HZ

Product Description

Specification

8040 Desktop High temperature high pressure HTD8040D HPHT Consistometer for Testing the Thickening Time of Slurry
HPHT Consistometer is designed to measure cement thickening time according to API Specification 10. it is necessary to measure cement slurry thickening time for preparing 1st or 2nd well cementing. As for relative technical requirements and operating procedures, you can refer to RP-10B in API Specification10. HPHT Consistometer has wide pressure and temperature range.

The instrument has compact structure and small volume which can be put on the working table of common labs. The autoclave body is made of high-strength alloy materials and its main control and executive unit are made of exported components( Germany, Japan and USA and so on).

It can finish most of API required HPHT experiments. It operates easy and all control valve and switch are all on front panel, so you can read out temperature and consistency easy on it. Pressure shows on pressure gauge.Temperature controller controls rise speed of cement slurry automatically. When temperature reaches what you need, it can keep constant temperature.Pressure relief valve and Air-Driven Hydraulic Pump can control pressure. Temperature and consistency valve can be drew by system pen recorder.

Temperature controller on instrument panel can display real temperature in the autoclave.

You can choose 5270 PC data collector and control system to put testing structure into PC and collect, save and copy experiment data. Consistency of cement slurry is got by standard spring ‘s force. When slurry cup rotates at required rotary speed, blade under cement slurry applies to standard spring connected to blade. instrument will cut off heater automatically, power off drive motor, open cooling water automatically and terminate the time. instrument sounds the alarm to tell operators that experiment is over.

Feature

comply with the requirements 10 of API spec.;

Through the ISO9001 quality certification;

The number type intelligence temperature the controller and number temperature show;

The machine body adopts a special metal alloy manufacturing;

Maximum temperature reaches 315℃;

The highest working pressure275Mpa;

Adopt High-Power heating apparatus;

The machine is hard enduring use convenience;

The main control and the implementation of all components adopt imported;

With magnetic drives, easy maintenance;

Kettle body can get a fast cooling;

The kettle body sealing adopts high-temperature o-rings and special metal ring, to ensure the seal ;

Draw temperature and dense degree with a type record instrument number;

Optional HTD5270 data acquisition and control system based on computer, through the communication port 1 test data

real-timeacquisition, storage and printing .

item	value
Warranty	1 year
Certification	ISO
Customized support	OEM
Place of Origin	China
	Shaanxi
Brand Name	Zealchon
Model Number	8040
Power	Electronic
Highest working temperature	315℃
The highest working pressure	275Mpa
Rotary speed of slurry cup	150r/min
Heater power	150r/min
Input Power	5000W
Product name	HPHT cement Consistometer
Warranty	1 Year
Standard	BS.EN.ASTM

Packing & Delivery

a. Inner package: dust-proof plastic bag b. Outer package: standard export wooden case with pallet c. Special package: according to buyer's requirements d. The packages suitable for international transport by sea, by air or by any other delivery methods
