Name: 7720 Portable High temperature high pressure benchtop cement consistometer
Brand: Xian Zealchon Electronic Technology Co., Ltd.
SKU: 7720
Price: 34000 USD
Availability: InStock

Home Products drilling fluid instrument

7720 Portable High temperature high pressure benchtop cement consistometer

Product Details:

Place of Origin:	China
Brand Name:	Zealchon
Certification:	ISO CE
Model Number:	7720

Payment & Shipping Terms:

Minimum Order Quantity:	1 year
Price:	$34000
Packaging Details:	wooden box
Delivery Time:	7days
Payment Terms:	L/C, T/T, Western Union, Western Union
Supply Ability:	100sets/month

Contact Now

Detailed Product Description

The Highest Operating Temperature:	204℃(400℉)	The Highest Working Pressure:	137 Mpa(20000PSI)
Heater Power:	3000W	Rotary Speed Of Slurry Cup:	150r/min
Input Power:	4000 W

Product Description

Specification

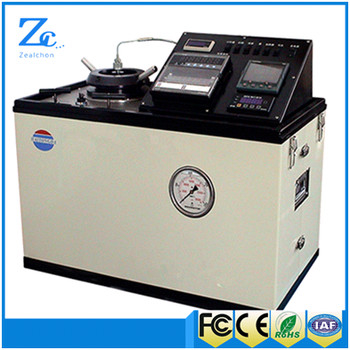

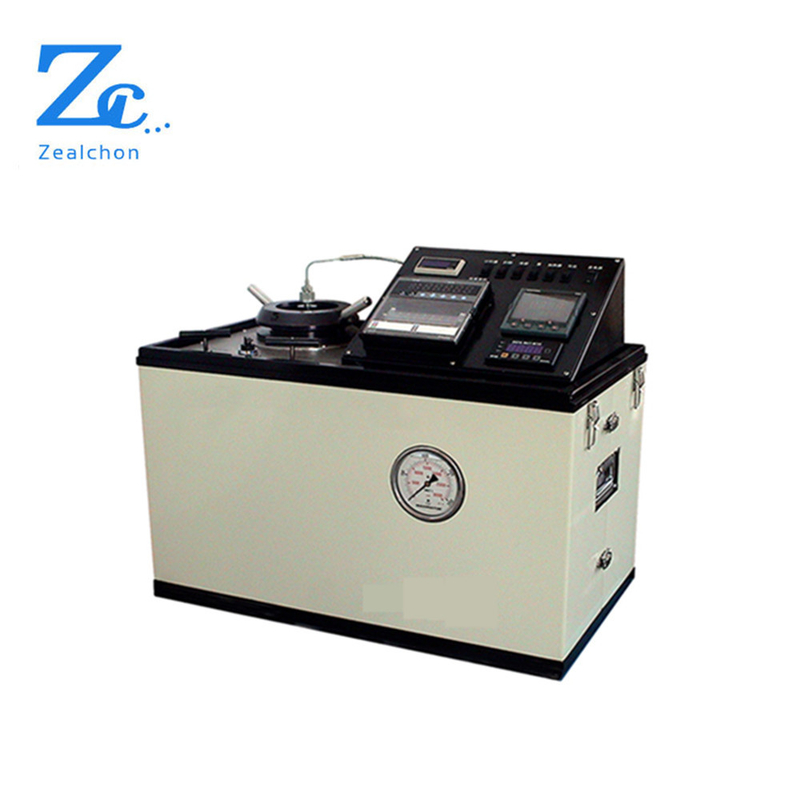

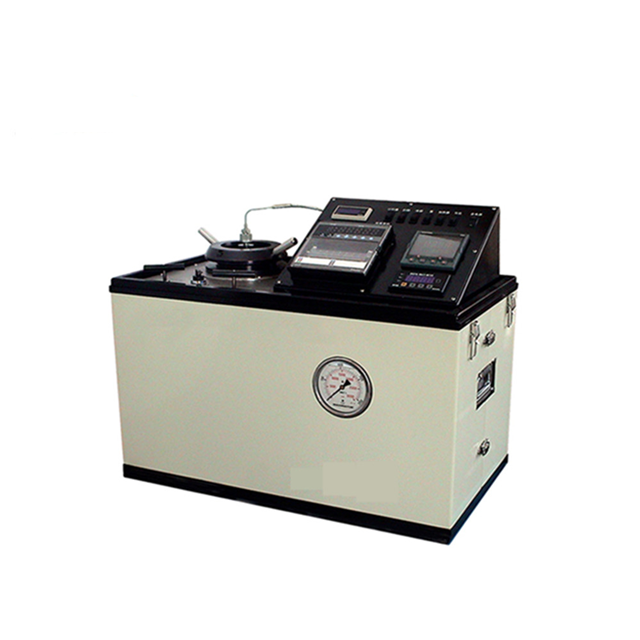

7720 Portable High temperature high pressure benchtop cement consistometer

Application:

7720 has compact design, heats and pressurizes rapidly. Cylindrical slurry cup and fixed mixer are assembled together and put in pressure autoclave. Maximum working pressure is 137 Mpa (20,000psi). Maximum temperature is 204°C(400°F). Air-Driven Hydraulic Pump provides pressure to autoclave. Hydraulic pressure system is composed to fuel tank, piping system, valve and filters.Heat the autoclave through 3000w build-in pipe heater.Programmable temperature controller controls rise speed of temperature automatically.
When slurry reaches expected temperature, controller will keep set temperature. Air-Driven Hydraulic Pump pressurizes. Pressure relief valve and Air-Driven Hydraulic Pump can control pressure. Slurry cup turns at constant speed of 150±15rpm through magnetic drive. Driving torque is passed into permanent magnet inside the autoclave from a group drive magnet outside through rack.

Permanent rare earth magnet can guarantee high torque and long time magnetic field. Viscosity of cement slurry will be recorded on a form through potentiometer in pressure reactor. There’s a standard torsion springs in potentiometer to prevent rotary force in mixer. Rotary force is in proportion to cement slurry’s consistency. All 7720 series slurry’s temperature and consistency are recorded on a paper printer. Automatic consistometer pressure passage is recorded on a paper printer too and with computer data capture interface.

Completely meet American Petroleum Institute norm 10 requests
The number type intelligence temperature the controller and number temperature show
The machine body adopts a special metal alloy manufacturing
The pressure is the biggest to reach to 137 Mpa(20000PSI)
The temperature is the biggest to reach 204℃(400℉)
The machine is hard enduring use convenience
Adopt High-Power heating apparatus
The magnetic force drives device and lower to support workload
The machine body has to cool off device and quickly cool off a machine body
The body is sealed by the general O-ring to compress the sealing
The factory headway goes cement syrup test to ensure to use
Draw temperature and dense degree with a type record instrument number
Have a calculator to connect, can calculator signal the line link electric outlet at the behind up

item	value
Warranty	1 year
Certification	ISO
Customized support	OEM
Place of Origin	China
	Shaanxi
Brand Name	Zealchon
Model Number	7720
Power	Electronic
The highest operating Temperature	204℃(400℉)
The highest working pressure	137 Mpa(20000PSI)
Heater power	3000W
Rotary speed of slurry cup	150r/min
Input Power	4000 W
Product name	pressurized cement consistometer
Warranty	1 Year
Application	cement
Standard	API

Packing & Delivery

a. Inner package: dust-proof plastic bag b. Outer package: standard export wooden case with pallet c. Special package: according to buyer's requirements d. The packages suitable for international transport by sea, by air or by any other delivery methods

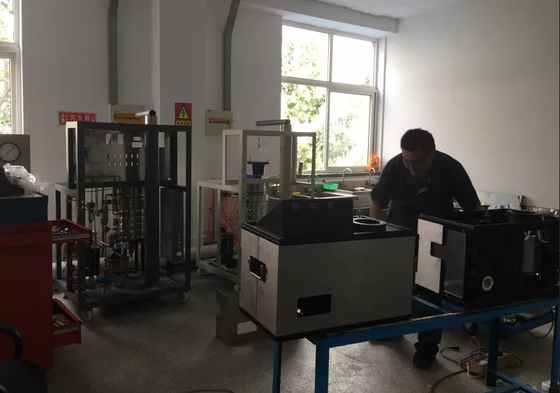

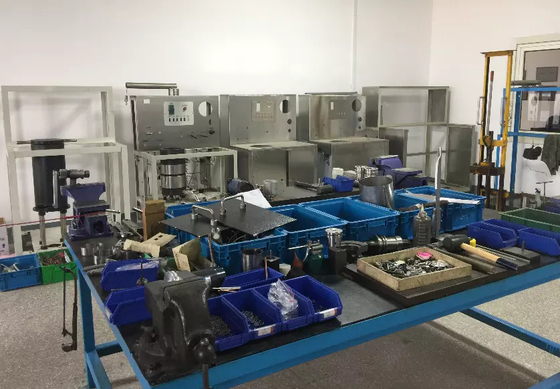

Lab display
