Name: 4-unit API LPLT Filtration Drilling Fluid Tester Filter Press Lab Equipment Analysis Device Slurry Testing
Brand: Xian Zealchon Electronic Technology Co., Ltd.
SKU: SD-4
Price: 2000 USD
Availability: InStock

Home Products drilling fluid instrument

4-unit API LPLT Filtration Drilling Fluid Tester Filter Press Lab Equipment Analysis Device Slurry Testing

Product Details:

Place of Origin:	China
Brand Name:	zealchon
Certification:	ISO CE
Model Number:	SD-4

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	$2000
Packaging Details:	wooden box
Delivery Time:	7days
Payment Terms:	L/C, T/T, Western Union, Western Union
Supply Ability:	100sets/month

Contact Now

Detailed Product Description

Filtration Area:	45.6cm2	Working Pressure:	0.69MPa
Drilling Fluid Cup Extreme Pressure:	1MPa	Drilling Fluid Injection:	240ml
Outline Dimension:	645×150×360mm

Product Description

4-unit API LPLT Filtration Drilling Fluid Tester Filter Press Lab Equipment Analysis Device Slurry Testing

Application:

Under pressure difference, drilling fluid will have filter effect, which means free water of drilling fluid permeate to gaps and

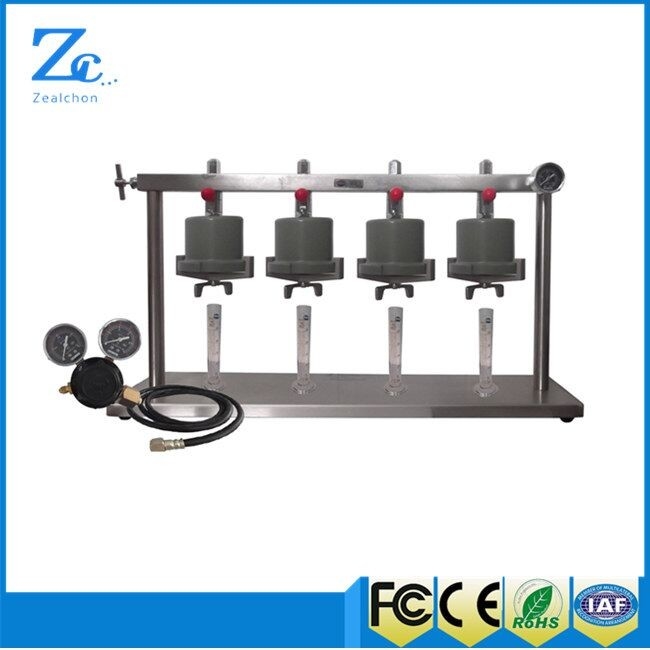

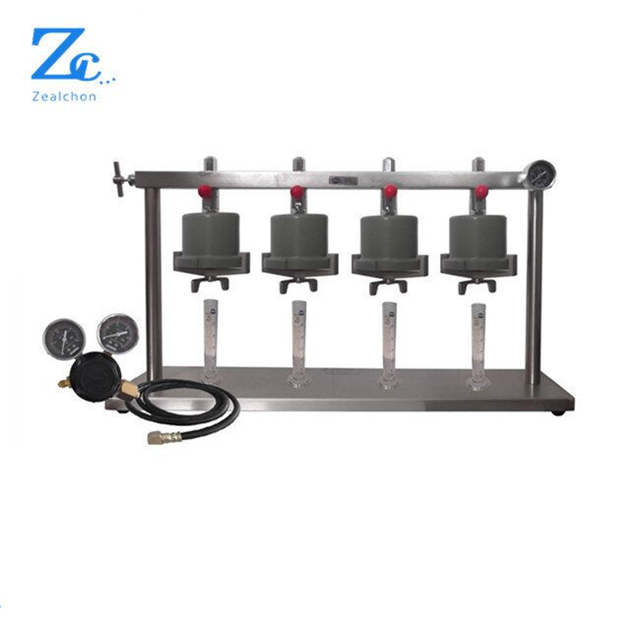

pores of rocks on side wall. Filter press is used to simulate drilling fluid’s filtration and cake’s forming characteristics under static condition. SD4 filter press with many cups can do multi-samples paralleled experiments. It equips aluminium drilling fluid glass, rated working pressure 0.69MPa, effective filtration area 45.6cm2, drilling fluid capacity240ml. And it equips pump air source supply. You can choose low-pressure pipe manifold with nitrogen gas cylinder for labs.

Parameter

Name	Configuration
multi MP filter press	Four sets of aluminum drilling fluid cup
Filtration area	45.6cm2
Working pressure	0.69MPa
Drilling fluid cup extreme pressure	1MPa
Drilling fluid injection	240ml
Outline Dimension	645×150×360mm
Package Size	730×420×255mm
Net Weight	11.3kg

Package & Delivery

Lab display

Certifications

Contact Details

Xian Zealchon Electronic Technology Co., Ltd.

Contact Person: Miss. Elieen Liang

Tel: 86--15091779716
