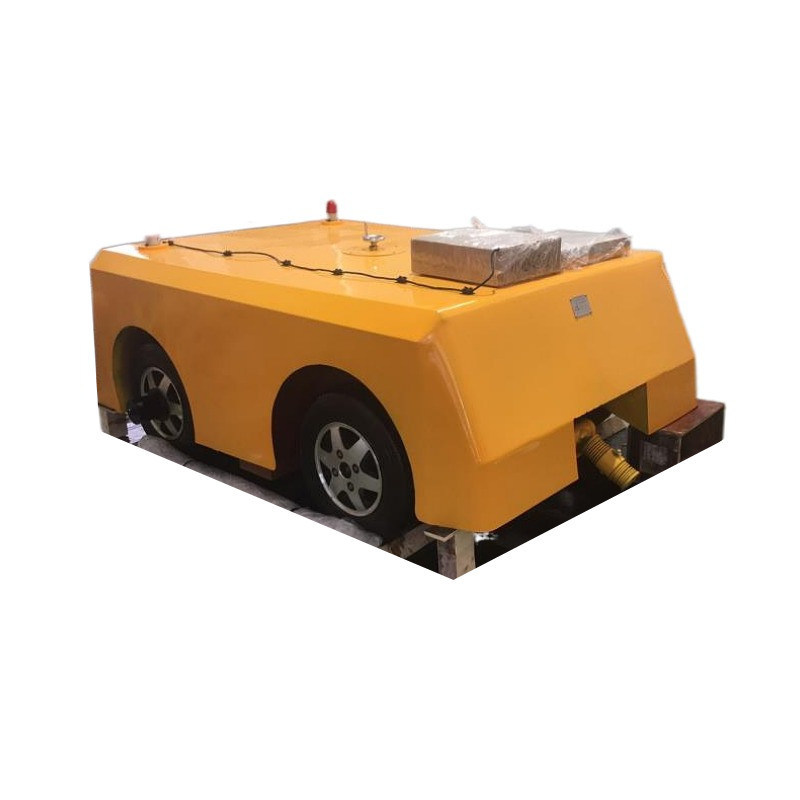

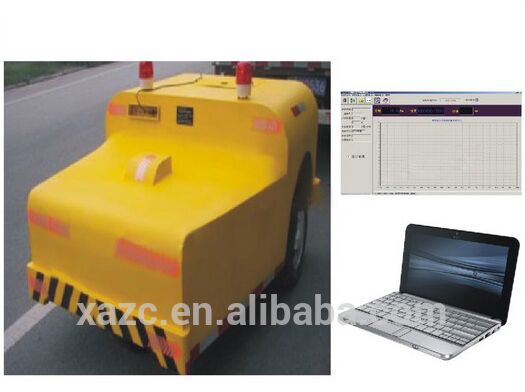

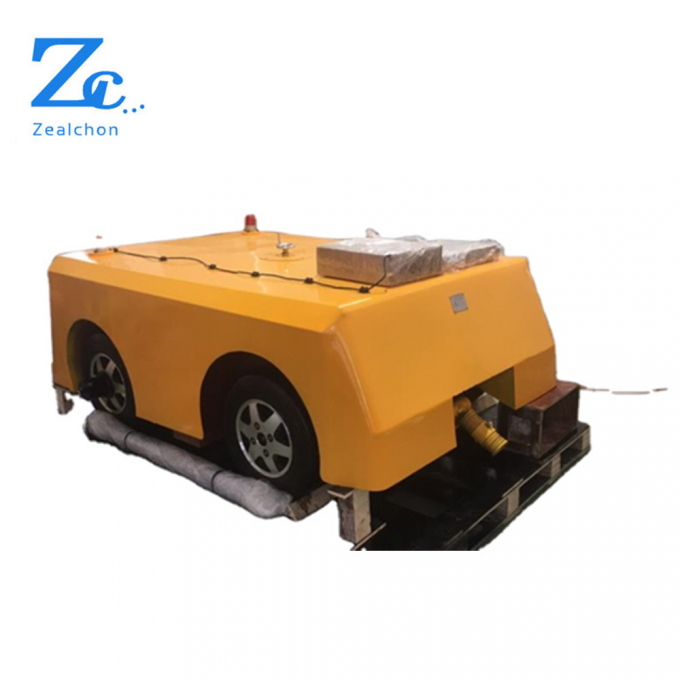

Name: B004 Electronic Power Vehicle Mounted Laser Pavement Road Surface Roughness Meter IRI
Brand: Xian Zealchon Electronic Technology Co., Ltd.
SKU: B004
Price: 19000 USD
Availability: InStock

Home Products subgrade and pavement testing machine

B004 Electronic Power Vehicle Mounted Laser Pavement Road Surface Roughness Meter IRI

Product Details:

Place of Origin:	China
Brand Name:	zealchon
Certification:	CE ISO
Model Number:	B004

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	$19000
Packaging Details:	wooden box
Delivery Time:	7days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100sets/month

Contact Now

Detailed Product Description

Detection Speed:	20 Km/h - 100 Km/h	Continuous Measurable Distance:	> 50 Km
Minimum Sampling Interval:	10 Mm	Sensor Precision:	0.1 Mm
System Power Supply:	DC 12 V

Product Description

B004 Road and Electronic Power Vehicle-mounted laser road flatness tester

Application:

Base performance

1. Measure the measurable indicators of flatness:

The international roughness index IRI

Flatness sigma (can be reduced turbulence value)

2. The output:

Various indicators, road & pile number range, mileage,the ultra left the picture right classification number, can set a variety of data, curve, and the original data.

3. The general technical characteristics:

Detection speed: 20 km/h - 100 km/h

Continuous measurable distance: > 50 km

Minimum sampling interval: 10 mm

Sensor precision: 0.1 mm

The number of operators (including the driver) : 1-2 people

Operating temperature: 0 ℃ to 50 ℃

System power supply: DC 12 V

Between the bottom of the laser sensor and the clear distance pavement: 100 mm (testing)

Detection range: TRI: 0-100 m and other detection distance can be set

Test repeatability: Deviation factor: CV < 3%

Parameter

Detection speed	20 km/h - 100 km/h
Continuous measurable distance	> 50 km
Minimum sampling interval	10 mm
Sensor precision	0.1 mm
The number of operators (including the driver)	1-2 people
Operating temperature	0 ℃ to 50 ℃
System power supply	DC 12 V
Between the bottom of the laser sensor and the clear distance pavement	100 mm (testing)
Detection range: TRI	0-100 m and other detection distance can be set
Test repeatability	Deviation factor: CV < 3%

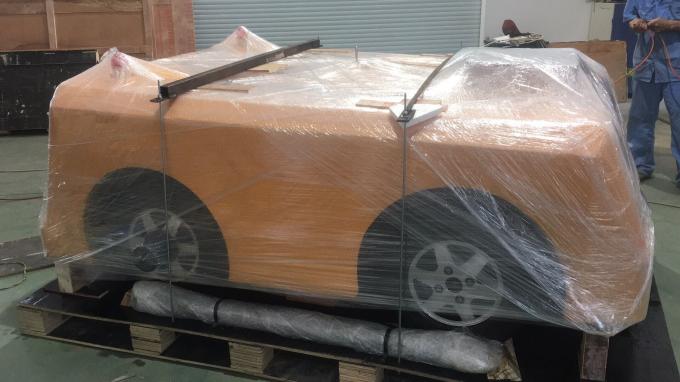

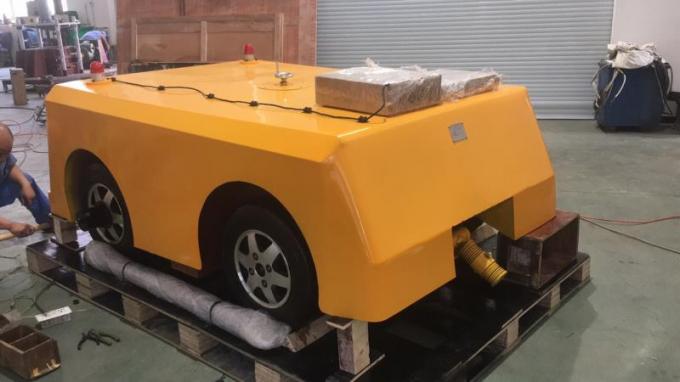

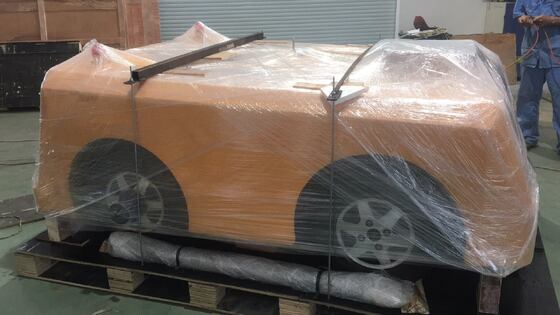

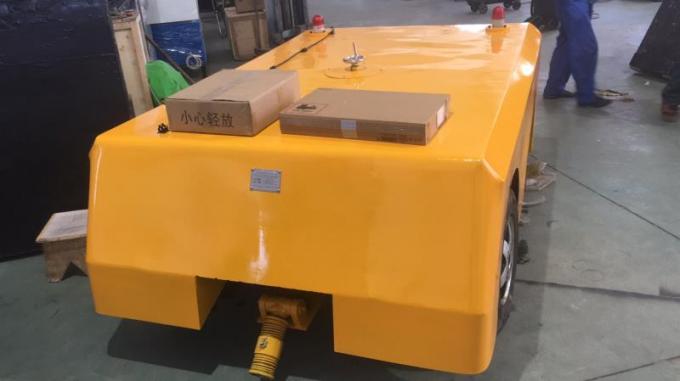

Package & Delivery

Xi 'an Zealchon electronic technology co., LTD, located in new technology industry development zone in Xi'an, an ancient city in China. It covers an area of 7500 square meters of building area. Zealchen specialize in civil engineering research and experimental apparatus; another is the semiconductor laser research and development.On one hand, currently based on civil experimental instrument research, the research team is founded by the personnel who come from Chang 'an university, Xi 'an polytechnic university, Xi 'an petroleum university, which has the top technology in this expertise. In addition, its research and development has accomplished a series of leading domestic and international standards, first-class technology of asphalt and asphalt mixture, road, bridge deck, geotechnical, structural testing instruments, even more, some of the products fill the blank of similar equipment at home and abroad, won national, ministerial, provincial awards.

Our technical support team, marketing, and web development teams make their homes in china as well, and are dedicated to providing comprehensive customer support and services.
