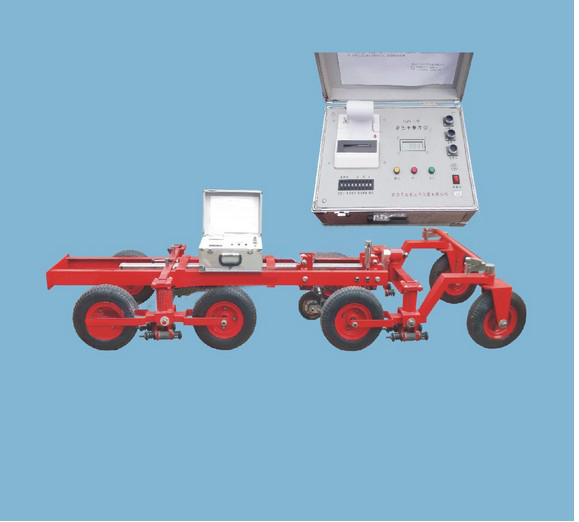

B002 Continuous Eight wheels Profilometer
Application:
Continuous flatness gauge is used to measure the σof surface roughness , expressed in mm, calculatio
interval length is 1000 m and printing results is convenient (less than 100 m press close button to print the results).
specification:
Parameters | Details |
Flatness meter testing baseline length | 3 m error: ± 1% |
Sensors | 0-25 mm ± 0.01 mm |
Working environment | - 10℃~+ 40℃ |
Sampling spacing | 0.1 m |
The maximum speed | 25 km/h |
Appearance size | 4061 * 600 * 600 (mm) |
Elongation | 4061 mm |
Shorten | 2450 mm |
Voltage | 12 V Built-in battery, work for 12 h |
Apparatus, weight | 235 kg |
Controller weight | 6 kg, can be used in setting road number, pile number of mileage number |
Sampling interval | 0.1 m error: 0.1 mm |
Resolution | 0.01 mm |
Out-of-tolerance setting | 0-15 mm k + k - positive and negative value H,unit,mm;cumulative value s,unit,cm2 |
Service:
1. Warranty 1 year of replacement and return.
1, Providing factory visit and study, technical training
2, 24-hour technical support by e-mail or phone
3, Providing laboratory construction program design guidelines
4, Providing product design and OEM service
