LA-3A Digital Photoelectric Colorimeter Portable Spectrophotometer

LA-3A Digital Photoelectric Colorimeter Portable Spectrophotometer

    • LA-3A Digital Photoelectric Colorimeter Portable Spectrophotometer
    • LA-3A Digital Photoelectric Colorimeter Portable Spectrophotometer
    • LA-3A Digital Photoelectric Colorimeter Portable Spectrophotometer
    • LA-3A Digital Photoelectric Colorimeter Portable Spectrophotometer
  • LA-3A Digital Photoelectric Colorimeter Portable Spectrophotometer

    Product Details:

    Place of Origin: China
    Brand Name: zealchon
    Certification: CE ISO
    Model Number: LA-3A c

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: $2500
    Packaging Details: wooden box
    Delivery Time: 7days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100sets/month
    Contact Now
    Detailed Product Description
    Colorimetric Optical Structure: 45/0 (45° Ring Illumination, 0° Viewing Angle) Diameter: 11mm
    Wavelength: 400-700nm Spacing: 10nm

    Product Description

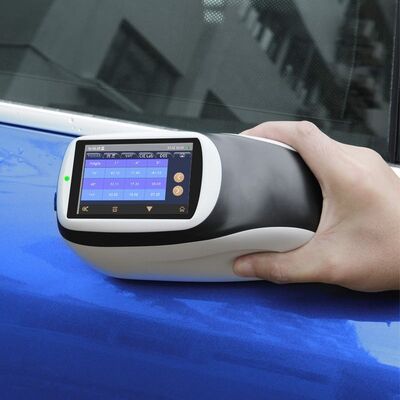

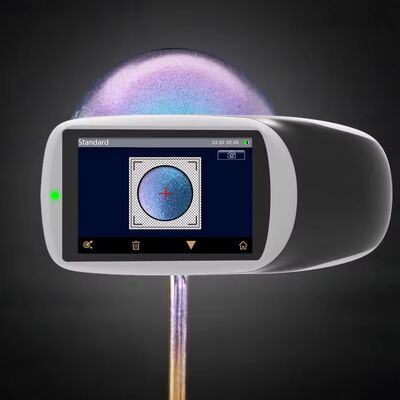

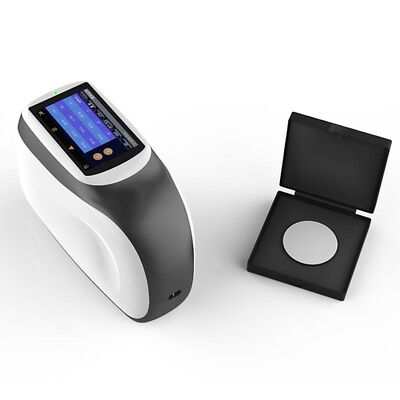

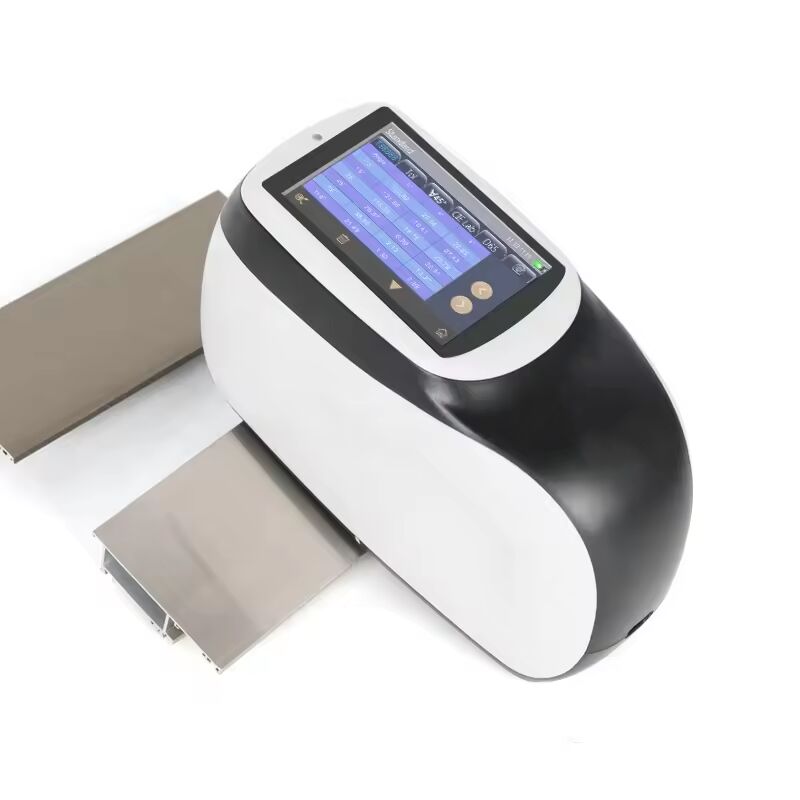

    LA-3A Digital Photoelectric Colorimeter Portable Spectrophotometer
    LA-3A Digital Photoelectric Colorimeter Portable Spectrophotometer
    LA-3A Portable Spectrophotometer Color Difference Detector Colorimeter with UV SCI/SCE BLE

    The LA-3A colorimeter is a compact and lightweight portable colorimeter. The 45/0 geometrical optical structure is consistent with the visual perception color value Z, which can exclude the specular light on the textured surface, and is suitable for the measurement of the brightness factor and chromaticity coordinates of traffic signs, markings, and reflective films.

    ‍LA-3A colorimeter technical parameters

    Colorimetric optical structure 45/0 (45° ring illumination, 0° viewing angle)

    Diameter 11mm

    Wavelength 400-700nm

    Spacing 10nm

    Sensor High sensitivity silicon photodiode

    Lighting source LED

    Repeatability Spectral reflectance: standard deviation within 0.08%

    ΔE*ab 0.03 (after calibration, measure the standard deviation of the white board 30 times with an interval of 5s), the maximum
    value is 0.05

    Inter-stage difference 0.2ΔE* (average measured on 12 BCRA II boards)

    Standard observer 2°; 10°

    Observation light source A, C, D50, D55, D65, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12, CWF, U30.DLF,NBF,TL83,TL84. U35

    Color Space CIE-L*a*b, L*C*h, L*u*v, XYZ, Yxy, Reflectance, Hunter-lab, Munsell MI, CMYK

    Chromaticity index WI (ASTM E313-00, ASTM E313-73, CIE/ISO, AATCC, Hunter, Taube Berger Stensby),
    YI(ASTM D1925,ASTM E313-00,ASTM E313-73),
    Tint (ASTM E313, CIE, Ganz),
    Metamerism Index Milm,
    Color fastness, color fastness, ISO brightness, A density, T density, M density, E density

    Color difference formula ΔE*ab,ΔE*CH,ΔE*uv,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*94,ΔE*00,ΔEab(Hunter),555 hue classification

    Memory 20000

    Display 2.8 inch full color true color screen

    Battery Rechargeable, continuous measurement 20000 times, 7.4V/6000mAh

    Operating temperature 0-45°C, relative humidity 80% or lower (at 35°C), no condensation

    Size 181*73*112mm(L*W*H)

    Weight about 800g (without battery)


    Parameter
    Diameter
    11mm
    Wavelength
    400-700nm
    Spacing
    10nm
    Inter-stage difference
    0.2ΔE* (average measured on 12 BCRA II boards)
    Standard observer
    2°; 10°
    Memory
    20000
    Size
    181*73*112mm(L*W*H)
    Weight
    800g (without battery)
    Colorimetric optical structure
    45/0 (45° ring illumination, 0° viewing angle)
    standard
    ASTM E313-00, ASTM E313-73
    Specification
