B043 Laser Pavement Structure Depth Tester (push type) TD texture depth

B043 Laser Pavement Structure Depth Tester (push type) TD texture depth

    • B043 Laser Pavement Structure Depth Tester (push type) TD texture depth
    • B043 Laser Pavement Structure Depth Tester (push type) TD texture depth
    • B043 Laser Pavement Structure Depth Tester (push type) TD texture depth
    • B043 Laser Pavement Structure Depth Tester (push type) TD texture depth
    • B043 Laser Pavement Structure Depth Tester (push type) TD texture depth
    • B043 Laser Pavement Structure Depth Tester (push type) TD texture depth
    • B043 Laser Pavement Structure Depth Tester (push type) TD texture depth
    • B043 Laser Pavement Structure Depth Tester (push type) TD texture depth
    • B043 Laser Pavement Structure Depth Tester (push type) TD texture depth
    • B043 Laser Pavement Structure Depth Tester (push type) TD texture depth

    Product Details:

    Place of Origin: China
    Brand Name: zealchon
    Certification: ISO
    Model Number: B043

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: $9800
    Packaging Details: wooden box
    Delivery Time: 7days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100sets/month
    Contact Now
    Detailed Product Description
    Power Source:: 12 V Working Hours: 12H
    Laser Sensor: ±20mm ±0.01mm Working Distance: 50mm-120mm
    Test Speed Of Push Style: 3-12km/h

    Product Description
    B043 Laser Pavement Structure Depth Tester (push type) TD texture depth
    B043 Laser Pavement Structure Depth Tester (push type) TD texture depth

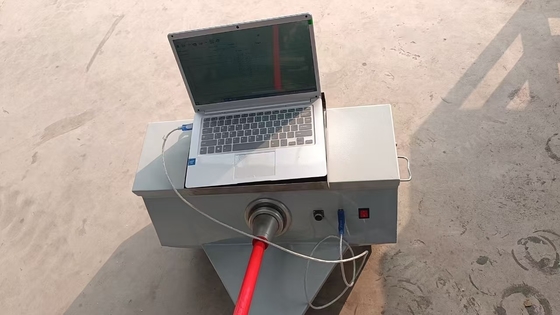

    B043 Laser Pavement Structure Depth Tester (push type)


    1. Automatic data acquisition, transmission, recording and processing with a compute, respectively conducted by specialized software automatic control 2. Power source: 12 v contained power pack and charging storage Working hours: 12H (Also can charge with car cigarette lighter) 3. Laser sensor ±20mm ±0.01mm distinguishability:0.1mm
    Working distance:50mm-120mm distinguishability:0.01mm(linear measurement) 4. Acquisition interval:≤10m 5. Test speed of push style:3-12km/h operating temperature:-10℃-60℃ 6. Set time, the number of roads, the mileage number, pile number, collect depth structure average standard deviation, graphics, the original process data (analysis) automatically.
    Parameter
    Laser sensor
    ±20mm ±0.01mm
    Working distance
    50mm-120mm
    Minimum sampling interval
    10 mm
    Sensor precision
    0.1 mm
    The number of operators (including the driver)
    1-2 people
    Operating temperature
    0 ℃ to 50 ℃
    System power supply
    DC 12 V
    Between the bottom of the laser sensor and the clear distance pavement
    100 mm (testing)
    Detection range: TRI
    0-100 m and other detection distance can be set
    Test repeatability
    Deviation factor: CV < 3%
    Package & Delivery
    B043 Laser Pavement Structure Depth Tester (push type) TD texture depth
    Exhibition
    B043 Laser Pavement Structure Depth Tester (push type) TD texture depth
    Customer Photos
    B043 Laser Pavement Structure Depth Tester (push type) TD texture depth
    Contact Us
    B043 Laser Pavement Structure Depth Tester (push type) TD texture depth
