Product Description
G5 Light and portable model Energy Dispersive XRF Gold tester with Si-Pin detector
Features

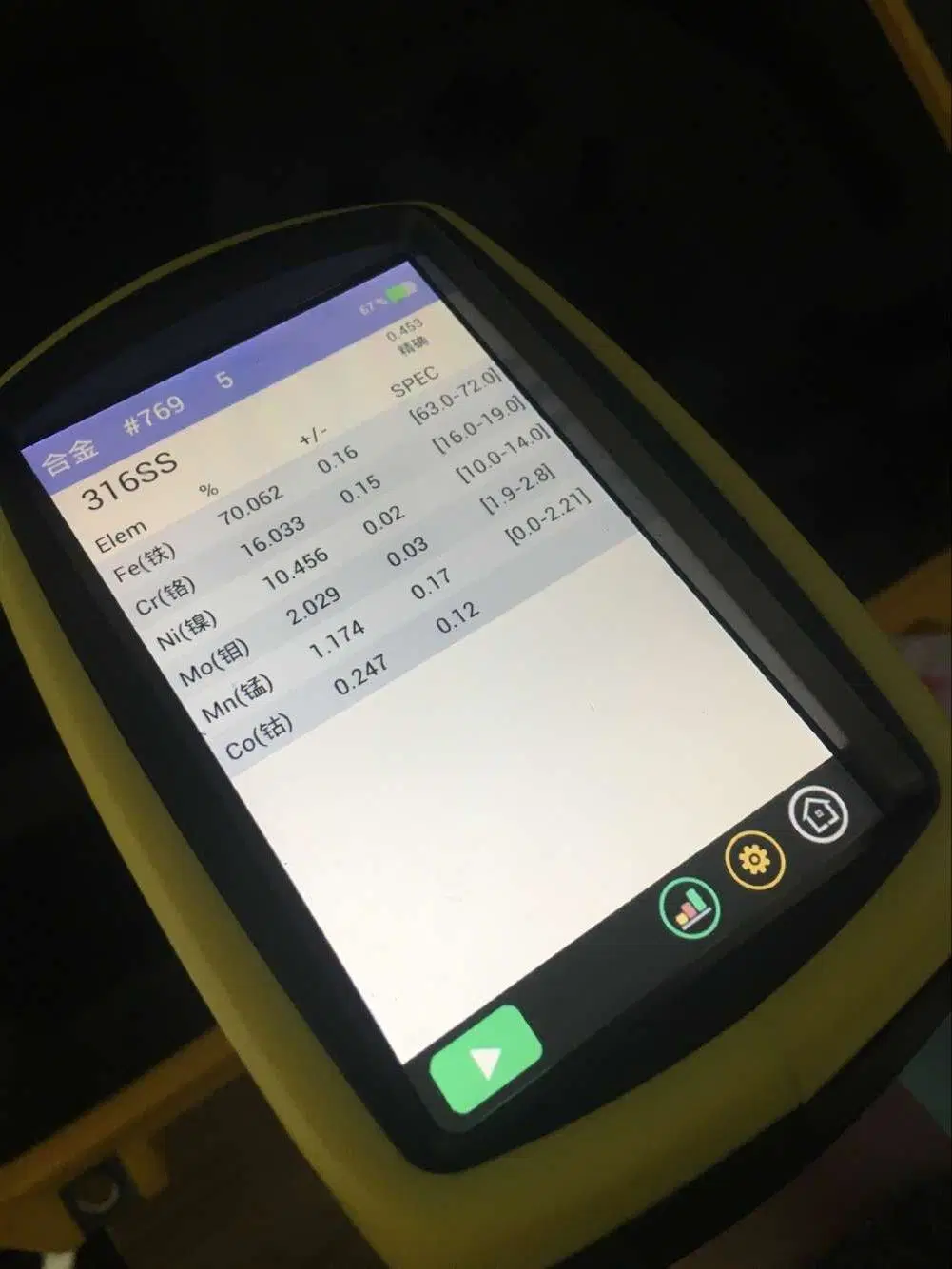

1. Excellent Performance TrueX shows element symbols in both English and Chinese. With high precision, high testing speed and comparable results to even that of laboratory equipment, TrueX displays alloy grade and elements percentage content (up to three decimals) and ppm content in an apparent way.
2. One-touch operation TrueX test lasts only a few seconds and identification of alloy grades takes only 1 or 2 seconds. This facilitates operation by non-technical users.
3. Nondestructive testing (NDT) TrueX test does not damage or have any adverse effect on the use of samples. No damage is foreseen in the entire test process. 4.Drawell analysis software Drawell analysis software is a professional analysis software which enables the users to easily configure passwords, customize analysis reports attached with company LOGO and implement remote control of machine; users can edit alloy grade library, add their own grade number or define their own company's alloy brands; the software also allows automatic calibration of instrument and diagnosis of problems in a remote way; the software can be updated via Internet. 5. Scrap metal recycling and sorting Scrap metal recycling, reuse, and on-site analysis and sorting. TrueX offers a rapid and reliable identification of the scrap metals when scrap metals are transacted between buyers and sellers. TrueX delivers quantitative element analysis of iron alloy, copper alloy, aluminum alloy, copper-iron alloy,lead-tin alloy, mixed alloys, etc, and rapid identification and sorting of these alloys on the site
6. Application fields, safety and standards TrueX is suitable for alloy
material identification (PMI) for incoming inspection;material inventory management;re-inspection of construction materials in petrochemical construction, metal smelting, pressure vessel, power plant, petrochemical industry, fine chemical, pharmaceutical, aerospace and other industries to avoid serious safety accidents resulting from mixed or unqualified materials.
TrueX is in compli Application fields -
Nondestructive, rapid and accurate analysis of alloy elements and alloy grade identification on the site -
Metal identification /scrap metal sorting -
QA/QC management in metal production, processing, casting, etc -
Medicine and biological medicine - Identification of positive materials, oil refining and petrochemical industry - Thermal power plant, hydroelectric power station, nuclear power plant -
Accurate element analysis of raw material and PMI identification so as to meet production needs and ensure security of equipment and materials used in the process.
Specifications
Model: X3G800
Weight: 1.5 kg with batteries
Dimensions: 30cm(L)*23.5cm(W)*9.8cm(H)
Excitation Source: X-ray tube with Ag target; max voltage 50KV
Filters Five (5) available automatic filter positions
Detector: Peltier cooled 10 mm2 Silicon Drift Detector
Power: 2 rechargeable Li-Ion batteries; 6 hours operation per battery; AC adapter is optional
Operating Range: -10°C to 50°C
Computer/Display: with 65,536 colors; back lit; touch screen
Testing Modes Assay and Pass/Fail
Calibrations
Universal (automatically selects proper calibration); Polyethylene plastics; PVC
plastics; Mid-density (glass, ceramics); Alloys; Solders
Data Storage: 16GB standard memory.
Radiation Safety Password protected, No sample (backscatter) shutoff, five minute inactive log-in
Languages Supported: English, Chinese and other 5 languages
Warranty: One year
Standard Accessories
Waterproof Carrying Case
Two (2) Li-ion Batteries
User Interface Guide
Mini USB Cable
316 Stainless Steel Calibration Check Reference Coin
Integrated Wrist Strap
Analyzer Software
Factory Authorized Training and Support

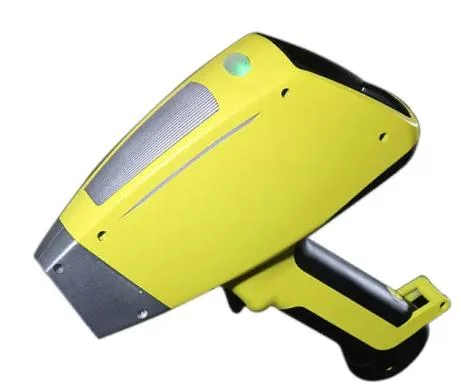

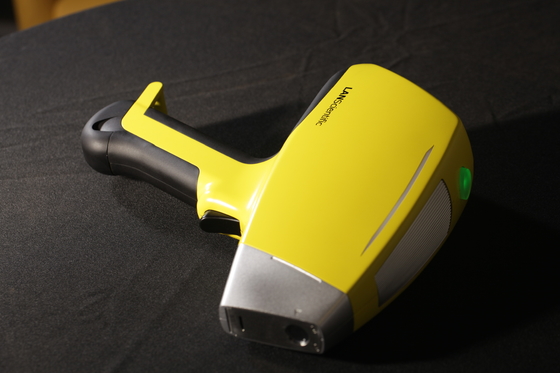

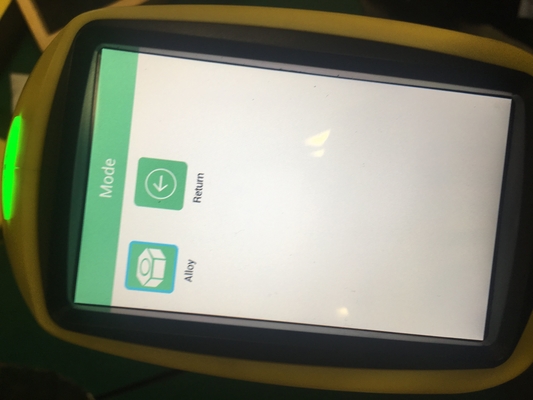

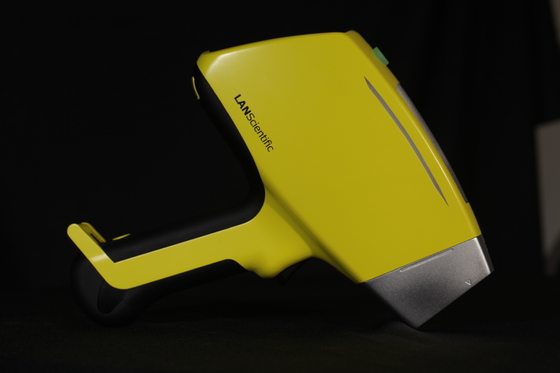

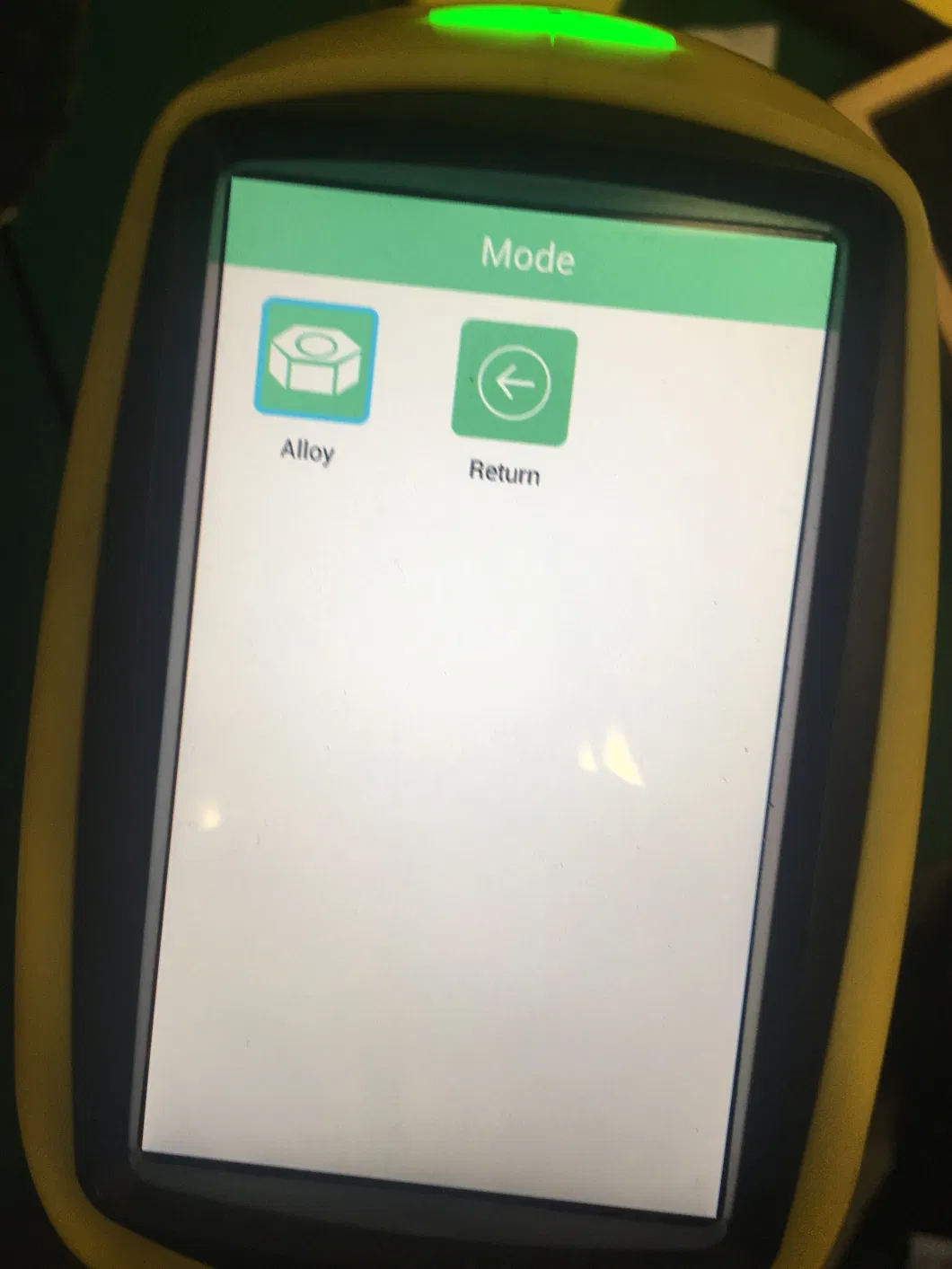

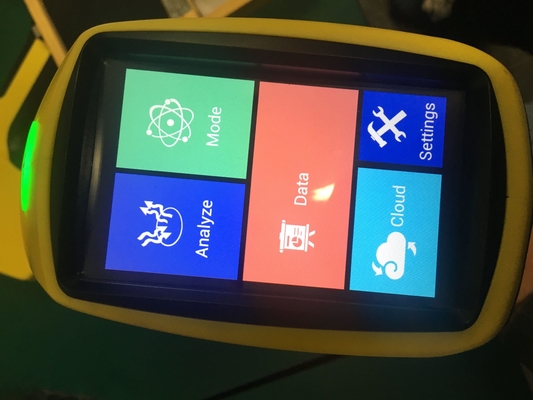

Detailed Photos
Product Parameters
|
item
|
value
|
|
Warranty
|
1 year
|
|
Certification
|
CE
|
|
Customized support
|
OEM
|
|
Place of Origin
|
China
|
|
|
Shaanxi
|
|
Brand Name
|
zealchon
|
|
Model Number
|
Turex 800
|
|
Power
|
Electronic
|
|
Measuring range of elements
|
Mg to U
|
|
.Content range
|
ppm~99.99%
|
|
Testing time
|
3-30 seconds
|
|
Detector
|
25mm2 0.3mil,SDD detector
|
|
.Size
|
234*306*82mm
|
|
.Weight
|
1.9Kg(with battery),1.6Kg(without battery).
|
|
Product name
|
metal alloy analyzer
|
|
Application
|
alloy
|
|
Certificate
|
CE ISO
|
Packaging & Shipping
After Sales Service
