Product Description

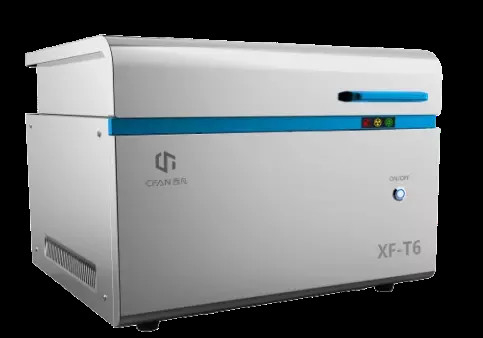

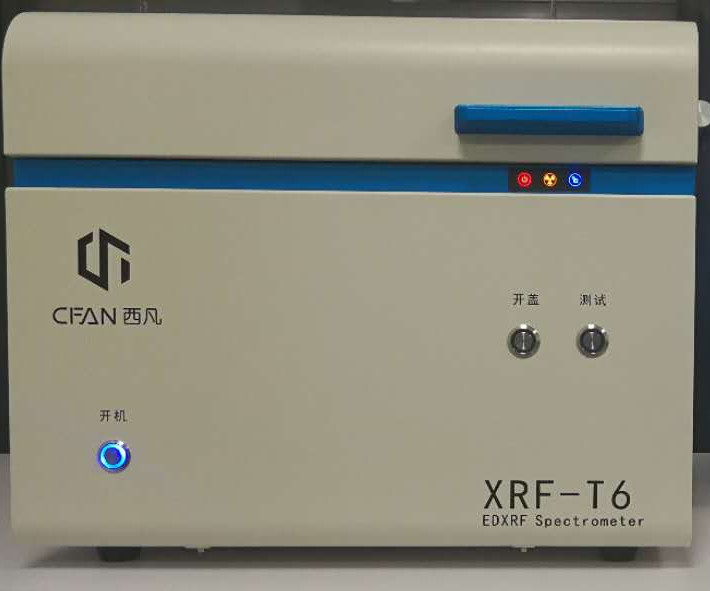

XRF heavy metal RoHS analyzer for materials safety inspect
Industry applications
Energy Dispersive X-ray Fluorescence Spectrometer, XRF for short, is a physical elemental analysis method, which has special technical advantages such as fast, non-destructive, simultaneous analysis of multiple elements, and low analysis cost. It is used in electronic RoHS, electrical appliances, jewelry, toys, clothing, leather, etc. , Food, building materials, metallurgy, geology and mining, plastics, petroleum, chemical, pharmaceutical and other industries are widely used.
XRF-T6 can correspond to IEC62321 for the detection of hazardous substances in electronic and electrical products, ASTM F963-11 for clothing and footwear, toy En-71, etc.
| |
| 1. |
Mearuing range : |
From P-U to U-elements
RoHS regulated harmful element Pb / Hg / Cd / Cr / Br + halogen
Alloy: copper, iron alloy, nickel alloy, tin alloy, titanium alloy, precious metal
Coating: Ag / Sn / Au / Ni—Cu, Cr / Zn / Ni / Ag / —Fe
|
| 2. |
Sample type: |
Solid (plating), liquid (component), |
| 3. |
testing time: |
60s-200s(Software automatic adjustment) |
| 4. |
Camera positioning system: |
5 million true pixels HD positioning system; |
| 5. |
X ray tube: |
Model: KEW
Place of production: Shanghai
Window material: metallic beryllium
Service life: more than 20000 hours
|
| 6. |
Detector: |
Model: X55
Manufacturer: American Amptek
Electric cooling SI-PIN detector
Resolution: 135ev ± 5
1mil beryllium window thickness
|
| 7. |
High voltage power supply: |
Model: X3513
Manufacturer: Xianyang Westman
0-50kev, 0-2mA maximum 50W
|
| 8. |
High voltage protection measures |
Over-voltage protection, self-recovery |
| 9. |

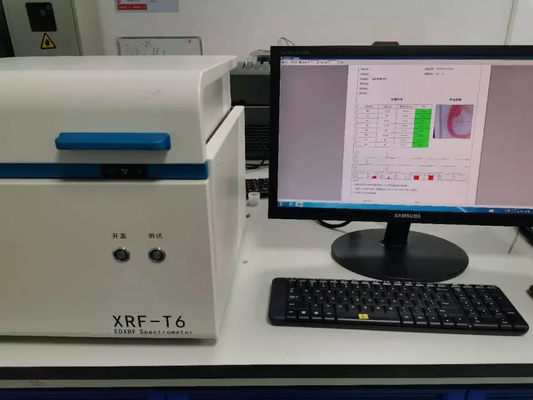

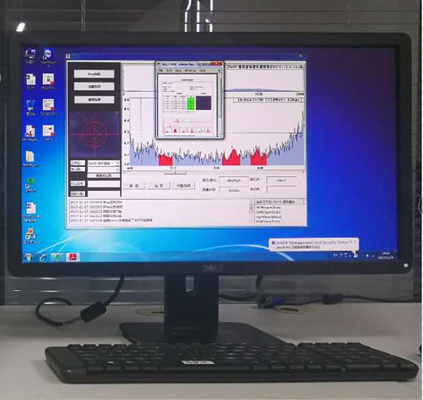

Integrated Industrial Computer:
(Computer All-in-One)
|
2G memory, 1.6G dual-core CPU
Operating system: Genuine Windows7 (no external computer required)
|
| 10. |
Working temperature: |
Temperature: 15-30 ℃; Humidity: ≤75% (non-condensing) |
| 11. |
Input power: |
AC 220V±15%,50Hz |
| 12. |
Instrument size: |
450(L)×410(W)×400(H) |
| 13. |
Test sample cavity size: |
350(L)×300(W)×100(H) |
| 14. |
Radiation Protection Standard: |
Much higher than the national standard GB18871-2002 GBZ115-2002 |
