LA-3A Portable Spectrophotometer Color Difference Detector Colorimeter with UV SCI/SCE BLE

Product Details:

Place of Origin:	China
Brand Name:	zealchon
Certification:	ISO CE
Model Number:	LA-3A

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$1500
Packaging Details:	wooden box
Delivery Time:	7days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100sets/month

Contact Now

Detailed Product Description

Colorimetric Optical Structure:	45/0 (45° Ring Illumination, 0° Viewing Angle)	Diameter:	11mm
Wavelength:	400-700nm	Spacing:	10nm
Inter-stage Difference:	0.2ΔE* (average Measured On 12 BCRA II Boards)	Memory:	20000

Product Description

LA-3A Portable Spectrophotometer Color Difference Detector Colorimeter with UV SCI/SCE BLE

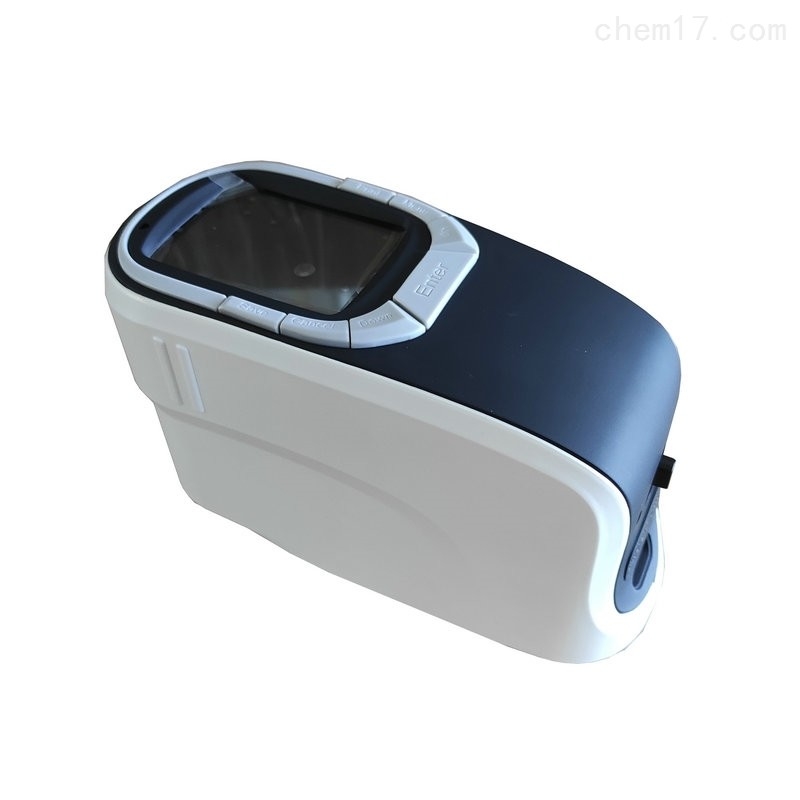

The LA-3A colorimeter is a compact and lightweight portable colorimeter. The 45/0 geometrical optical structure is consistent with the visual perception color value Z, which can exclude the specular light on the textured surface, and is suitable for the measurement of the brightness factor and chromaticity coordinates of traffic signs, markings, and reflective films.

‍LA-3A colorimeter technical parameters

Colorimetric optical structure 45/0 (45° ring illumination, 0° viewing angle)

Diameter 11mm

Wavelength 400-700nm

Spacing 10nm

Sensor High sensitivity silicon photodiode

Lighting source LED

Repeatability Spectral reflectance: standard deviation within 0.08%

ΔE*ab 0.03 (after calibration, measure the standard deviation of the white board 30 times with an interval of 5s), the maximum

value is 0.05

Inter-stage difference 0.2ΔE* (average measured on 12 BCRA II boards)

Standard observer 2°; 10°

Observation light source A, C, D50, D55, D65, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12, CWF, U30.DLF,NBF,TL83,TL84. U35

Color Space CIE-L*a*b, L*C*h, L*u*v, XYZ, Yxy, Reflectance, Hunter-lab, Munsell MI, CMYK

Chromaticity index WI (ASTM E313-00, ASTM E313-73, CIE/ISO, AATCC, Hunter, Taube Berger Stensby),

YI(ASTM D1925,ASTM E313-00,ASTM E313-73),

Tint (ASTM E313, CIE, Ganz),

Metamerism Index Milm,

Color fastness, color fastness, ISO brightness, A density, T density, M density, E density

Color difference formula ΔE*ab,ΔE*CH,ΔE*uv,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*94,ΔE*00,ΔEab(Hunter),555 hue classification

Memory 20000

Display 2.8 inch full color true color screen

Battery Rechargeable, continuous measurement 20000 times, 7.4V/6000mAh

Operating temperature 0-45°C, relative humidity 80% or lower (at 35°C), no condensation

Size 181*73*112mm(L*W*H)

Weight about 800g (without battery)

Parameter

Diameter	11mm
Wavelength	400-700nm
Spacing	10nm
Inter-stage difference	0.2ΔE* (average measured on 12 BCRA II boards)
Standard observer	2°; 10°
Memory	20000
Size	18173112mm(LWH)
Weight	800g (without battery)
Colorimetric optical structure	45/0 (45° ring illumination, 0° viewing angle)
standard	ASTM E313-00, ASTM E313-73
