HTD7720 Portable HPHT Cement Consistometer

Product Details:

Place of Origin:	China
Brand Name:	zealchon
Certification:	ISO CE
Model Number:	HTD7720

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	$37000
Packaging Details:	wooden box
Delivery Time:	7days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100sets/month

Contact Now

Detailed Product Description

Model Number:	7720	Power:	Electronic
The Highest Operating Temperature:	204℃(400℉)	The Highest Working Pressure:	137 Mpa(20000PSI)
Heater Power:	3000W	Rotary Speed Of Slurry Cup:	150r/min

Product Description

Specification

item	value
Warranty	1 year
Certification	ISO
Customized support	OEM
Place of Origin	China
	Shaanxi
Brand Name	Zealchon
Model Number	7720
Power	Electronic
The highest operating Temperature	204℃(400℉)
The highest working pressure	137 Mpa(20000PSI)
Heater power	3000W
Rotary speed of slurry cup	150r/min
Input Power	4000 W

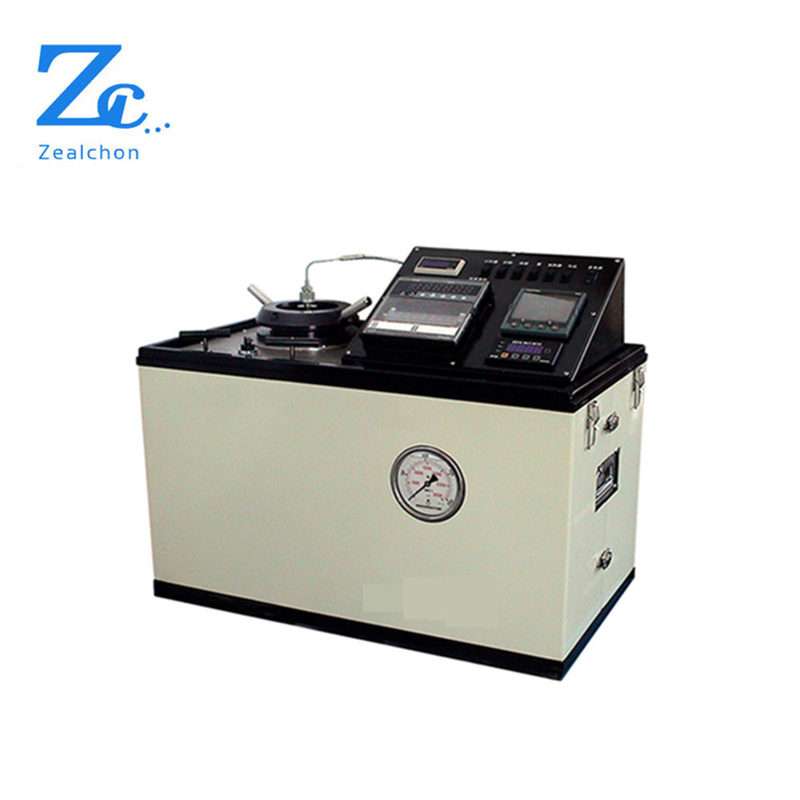

Model HTD7720 Portable HPHT Cement Consistometer
1,Introduction

The Portable HPHT consistometer is used to determine the length of time a given cement slurry remains in a fluid state at a desired temperature and pressure. This data is then used to compare various cements. The tests performed are known as Thickening Time Tests.

Complete details of the procedure are contained in API Spec 10 titled Materials and Testing for Well Cements.

Cement slurry is placed in the consistometer, pressure and temperature are increased according to the API schedules, or the specific schedules desired by the user, and the consistency of the slurry is recorded as a function of time. An automatic shut-down feature cools the instrument, and shuts down the heater and motor upon completion of the test.

Features and Benefits * Programmable temperature controller

* Rugged design

* Easy to operate

* Recorder for both viscosity and temperature

* Magnetic drive system to reduce maintenance

* Adjustable alarm for viscosity levels

* Slurry container rotation at 150 rpm

Package & Delivery

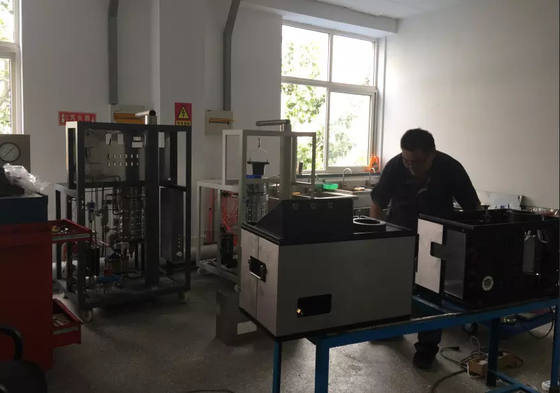

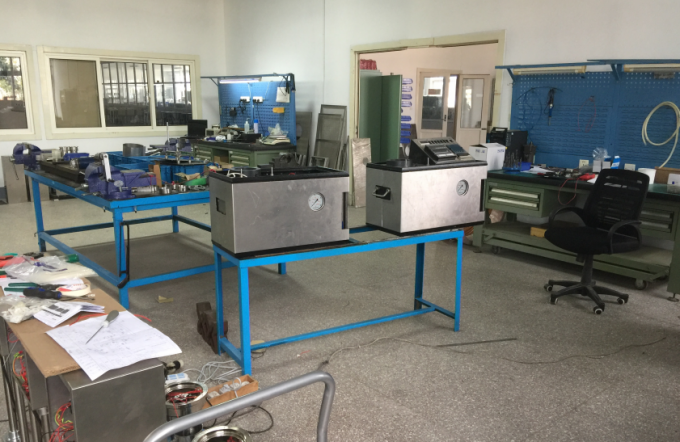

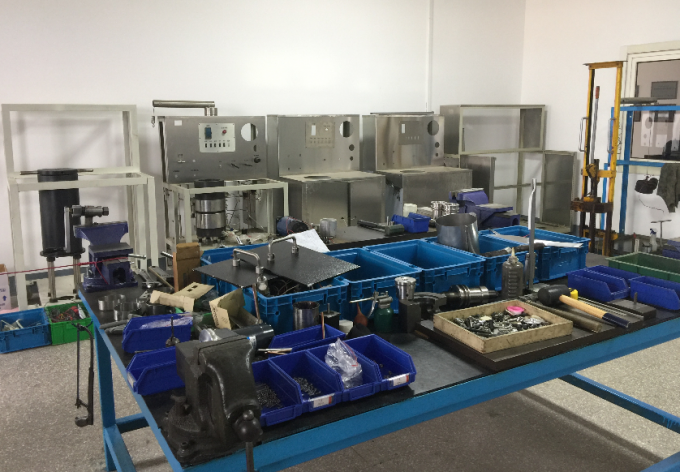

Lab display
