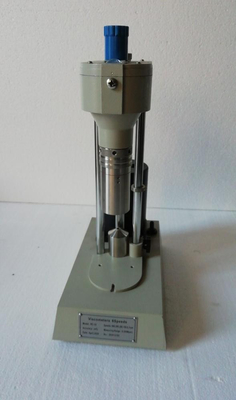

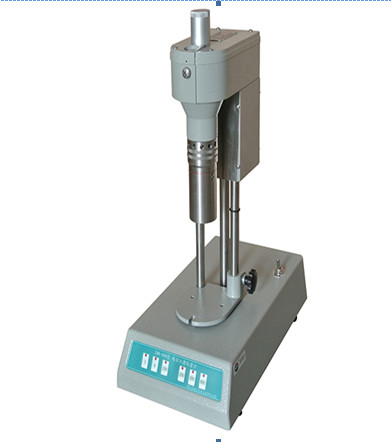

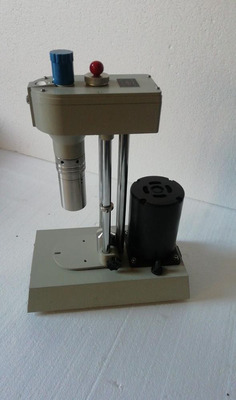

Model ZNN-D6B Mechanical pointer type six-speed rotational viscometer

Model ZNN-D6B Mechanical pointer type six-speed rotational viscometer

    • Model ZNN-D6B Mechanical pointer type six-speed rotational viscometer
    • Model ZNN-D6B Mechanical pointer type six-speed rotational viscometer
    • Model ZNN-D6B Mechanical pointer type six-speed rotational viscometer
    • Model ZNN-D6B Mechanical pointer type six-speed rotational viscometer

    Product Details:

    Place of Origin: China
    Brand Name: zealchon
    Certification: iso ce
    Model Number: ZNN-D6B

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: $1500
    Packaging Details: wooden box
    Delivery Time: 3days
    Payment Terms: L/C, D/P, Western Union, T/T
    Supply Ability: 100sets/month
    Contact Now
    Detailed Product Description
    ZNN-D6: F1 Torsion Spring Measuring Assembly/ F0.2 Torsion Spring Measuring Assembly(Optional Accessories) Rated Frequency: AC110/220V±5% 50/60Hz
    Motor Power: 50W Environmental Temperature: ≥20±5
    Motor Speed: 720r/min Speed Range: 3,6,100,200,300,600r/min

    Product Description
    Model ZNN-D6B Mechanical pointer type six-speed rotational viscometer
    Model ZNN-D6B Mechanical pointer type six-speed rotational viscometer


    ZNN-D6B is manufactured to test rheological parameters in accordance with API. It can measure various rheological parameters. Draw rheological diagram according to multi-point measurement value, determine fluid model of liquid in the flow process, then select suitable formula and measure non-Newtonian fluid model. Meanwhile, it can test yield point, gel strength, consistency coefficient and flow behavior index and so on. The instrument applies to research and analysis of drilling fluid rheological parameters. Easy operation and accurate testing can meet safe and quick drilling requirements.

    Product Paramenters
    ZNN-D6
    F1 Torsion spring measuring assembly/ F0.2 Torsion spring measuring assembly(Optional accessories)
    Rated Frequency
    AC110/220V±5% 50/60Hz
    Motor power

    50W
    Environmental Temperature

    ≥20±5
    Environment humidity
    45%RH~60%RH
    Motor speed

    720r/min
    Speed range
    3,6,100,200,300,600r/min
    Velocity-gradient

    5,10,170,340,511,1022 S-1
    Measuring accuracy
    0~25 mPa·s±1 mPa.s(Newtonian fluid)
    25 mPa·s ±4% (Newtonian fluid)
    Viscosity measurement range
    Newtonian fluid0~300mPa.s (F1Measuring assembly) 0~60mPa.s (F0.2Measuring assembly)
    Non-Newtonian fluid:0~150 mPa.s (F1Measuring assembly) 0~30 mPa.s (F0.2Measuring assembly)
    Shearing stress: 0~153.3Pa (F1Measuring assembly) 0~30.7Pa (F0.2Measuring assembly)
    Outline Dimension
    285×150×410mm
    Package Size
    620×300×490mm
    Net Weight

    7.35kg
    Package & Delivery
    Model ZNN-D6B Mechanical pointer type six-speed rotational viscometer
    Lab display
    Model ZNN-D6B Mechanical pointer type six-speed rotational viscometer
    Exhibition
    Model ZNN-D6B Mechanical pointer type six-speed rotational viscometer
