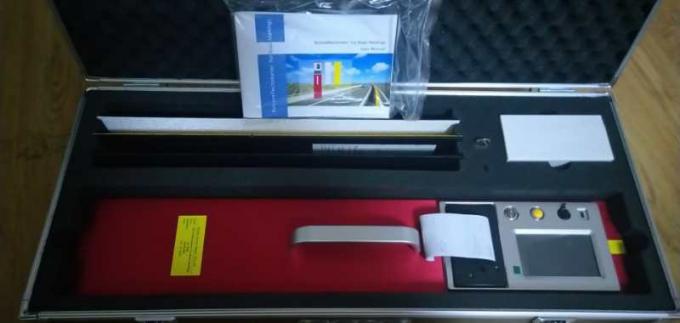

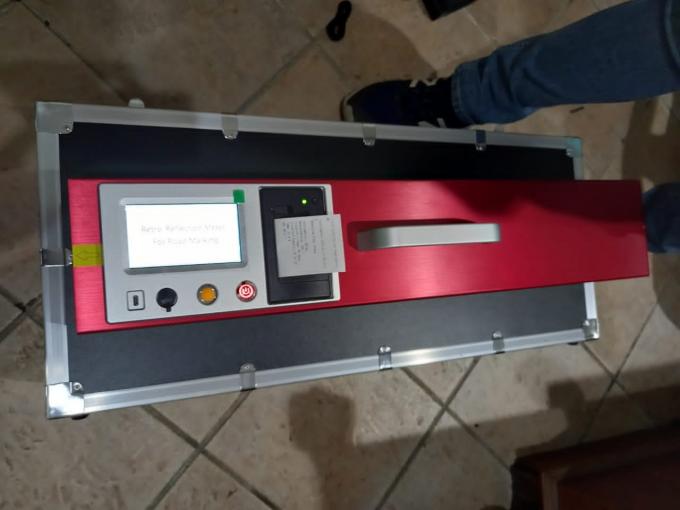

B047 Horizontal Retroreflectometer Road marking reflecting measuring instrument retroreflectometer

B047 Horizontal Retroreflectometer Road marking reflecting measuring instrument retroreflectometer

    • B047 Horizontal Retroreflectometer Road marking reflecting measuring instrument retroreflectometer
    • B047 Horizontal Retroreflectometer Road marking reflecting measuring instrument retroreflectometer
    • B047 Horizontal Retroreflectometer Road marking reflecting measuring instrument retroreflectometer
    • B047 Horizontal Retroreflectometer Road marking reflecting measuring instrument retroreflectometer
  • B047 Horizontal Retroreflectometer Road marking reflecting measuring instrument retroreflectometer

    Product Details:

    Place of Origin: China
    Brand Name: zealchon
    Certification: ISO CE
    Model Number: B047

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: $3800
    Packaging Details: wooden box
    Delivery Time: 7days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100sets/month
    Contact Now
    Detailed Product Description
    Measurement Items: Retroreflection Coefficient: Mcd.m -2 .lx -1 Measurement Value Range: 0-4000
    Observation Angle: 1.05° Incident Angle: 88.76°
    Complementary Angle: 1.24° Color Temperature Of Light Source: 2856K±50k

    Product Description
    B047 Horizontal Retroreflectometer Road marking reflecting measuring instrument retroreflectometer
    B047 Horizontal Retroreflectometer Road marking reflecting measuring instrument retroreflectometer
    This LA-302D marking retroreflective coefficient measuring instrument is a portable field measuring instrument used to measure the retroreflective characteristics of road markings. The characteristic researched by LA-302D instrument is mainly to simulate the brightness of road markings visible to the driver under the illumination of motor vehicle headlights at night, and the measured parameter is the retroreflective coefficient of night light.Functional characteristics:
    Support fast measurement (retroreflective coefficient value measured within 3 seconds)
    Support simple calibration procedure
    Large battery capacity, long standby time, and supports fast charging
    Support high-brightness LCD transparent touch screen, the operation interface can be seen clearly under light
    Support multiple measurements to calculate the average
    Support real-time broadcast of measurement data
    Support real-time broadcast on the spot, and directly print out the test
    results on the spot through the printer
    Use the touch keyboard to input English and characters
    Support real-time display of on-site temperature and humidity
    English menu operation mode can be opened to foreign customers to facilitate their use
    Support smart standby management, the system automatically enters sleep state when there is no operation
    Portable instrument with small dimensions and light weight
    Support for calibrating two colors at one time before testing in the same field environment, no need to calibrate each time you test or encounter different colors

    Technical parameters

    Measurement items: retroreflection coefficient mcd.m -2 .lx -1
    Measurement value range: 0-4000
    Observation angle: 1.05°
    Incident angle: 88.76°, complementary angle is 1.24°
    Color temperature of light source: 2856K±50k
    Measuring area of
    light hole: 340mmx95mm
    Repeatability measurement error: ≤3%
    Continuous working time of battery: >48h
    Data storage space: 8GB
    Built-in battery capacity: 13Ah
    Charging power supply: DC 8.4V
    Use environment temperature: -15℃~+40℃
    Use environment humidity: <98%, no condensation
    Whole machine volume: 700mmX135mmX115mm
    Parameter
    Measurement items: retroreflection coefficient
    mcd.m -2 .lx -1
    Measurement value range
    0-4000
    Observation angle
    1.05°
    Incident angle
    88.76°
    complementary angle
    1.24°
    Color temperature of light source
    2856K±50k
    Measuring area of light hole
    340mmx95mm
    Data storage space
    8GB
    Built-in battery capacity
    13Ah
    Charging power supply
    DC 8.4V
    Use environment temperature
    -15℃~+40℃
