Industry applications
Energy Dispersive X-ray Fluorescence Spectrometer, XRF for short, is a physical elemental analysis method, which has special technical advantages such as fast, non-destructive, simultaneous analysis of multiple elements, and low analysis cost. It is used in electronic RoHS, electrical appliances, jewelry, toys, clothing, leather, etc. , Food, building materials, metallurgy, geology and mining, plastics, petroleum, chemical, pharmaceutical and other industries are widely used.
XRF-T6 can correspond to IEC62321 for the detection of hazardous substances in electronic and electrical products, ASTM F963-11 for clothing and footwear, toy En-71, etc.

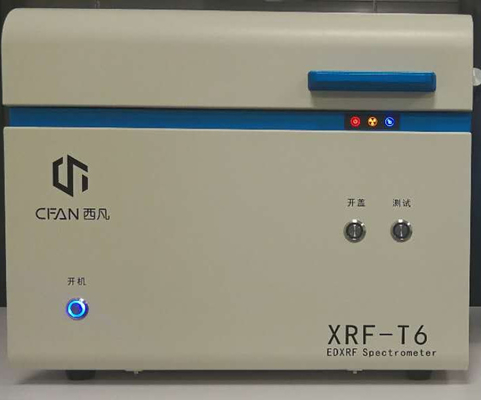

XRF-T6
Instrument advantages
1, the instrument test automatically self-locking and automatically open the lid after completion;
2.Built-in WIFI system, easy to access network printer and remote data debugging;
3, 8 million pixel high-definition camera positioning system, accurate positioning of test points;
4. At the end of the sample test, there is a music reminder to prompt to change the sample to improve work efficiency;
5. Open work curve calibration function, customers can increase test items independently;
6.The software adds a secondary judgment setting for Br and Cr tests exceeding the limit value
7. Added multi-variable editing function of sample information.
8. Added single-sample one-button test function.
9. Multiple report output formats can be customized;
10.Large database to ensure the accuracy of test results;
11. Different customers can set different limit standards to say goodbye to the trouble of tedious replacement of limit values;
12, integrated data statistics function, to facilitate the quality department to screen statistics suppliers, material names, parts and test conditions in different time periods;
13. One-click backup restore function of analysis data, to avoid loss caused by misoperation or other reasons, to ensure the safety of data and system files;
14. Support the function of large sample test and design with process guide.
XRF-T6 parameter
| |
|
|
Mearuing range : |
From P-U to U-elements
RoHS regulated harmful element Pb / Hg / Cd / Cr / Br + halogen
Alloy: copper, iron alloy, nickel alloy, tin alloy, titanium alloy, precious metal
Coating: Ag / Sn / Au / Ni—Cu, Cr / Zn / Ni / Ag / —Fe
|
|
|
Sample type: |
Solid (plating), liquid (component), |
|
|
testing time: |
60s-200s(Software automatic adjustment) |
|
|
Camera positioning system: |
5 million true pixels HD positioning system； |
|
|
X ray tube: |
Model: KEW
Place of production: Shanghai
Window material: metallic beryllium
Service life: more than 20000 hours
|
|
|
Detector: |
Model: X55
Manufacturer: American Amptek
Electric cooling SI-PIN detector
Resolution: 135ev ± 5
1mil beryllium window thickness
|
|
|
High voltage power supply: |
Model: X3513
Manufacturer: Xianyang Westman
0-50kev, 0-2mA maximum 50W
|
|
|
High voltage protection measures |
Over-voltage protection, self-recovery |
|
|

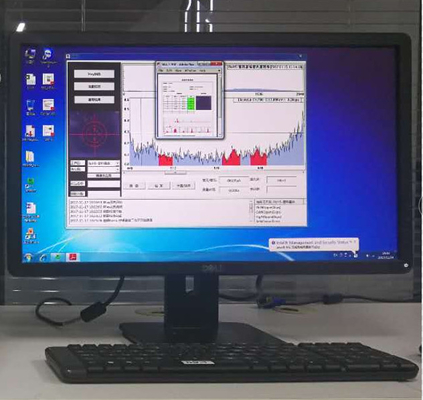

Integrated Industrial Computer:
(Computer All-in-One)
|
2G memory, 1.6G dual-core CPU
Operating system: Genuine Windows7 (no external computer required)
|
|
|
Working temperature: |
Temperature: 15-30 ℃; Humidity: ≤75% (non-condensing) |
|
|
Input power: |
AC 220V±15%,50Hz |
|
|
Instrument size: |
450(L)×410(W)×400(H) |
|
|
Test sample cavity size: |
350(L)×300(W)×100(H) |
|
|
Radiation Protection Standard: |
Much higher than the national standard GB18871-2002 GBZ115-2002 |
