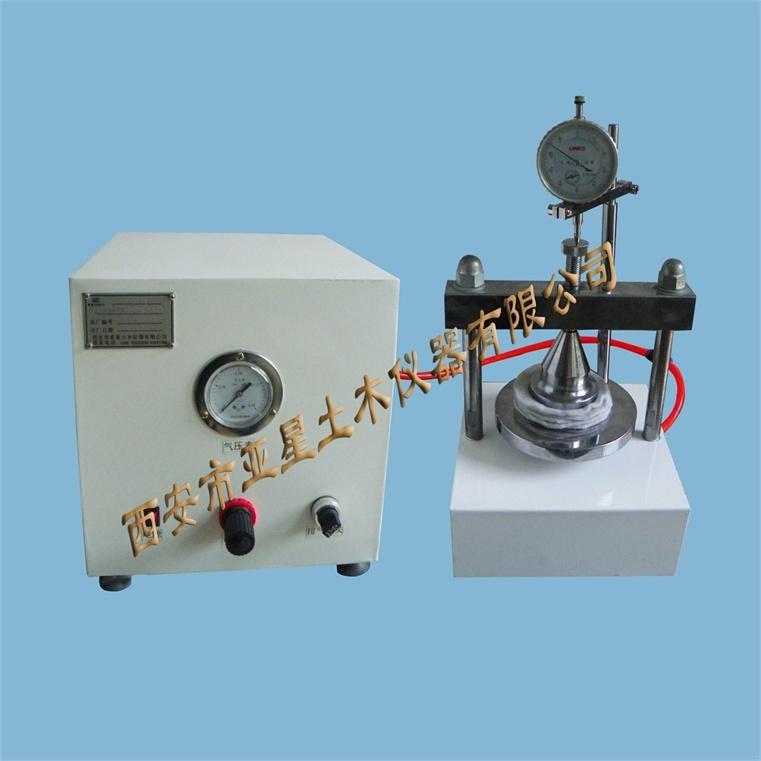

D001 Geosynthetics Thickness Tester

D001 Geosynthetics Thickness Tester

D001 Geosynthetics Thickness Tester

Product Details:

Place of Origin: China
Brand Name: zealchon
Certification: ISO CE
Model Number: D001

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $3000
Packaging Details: wooden box
Delivery Time: 7days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100sets/month
Contact Now
Detailed Product Description
Compact Area: 25cm2 Test Force: Three Commonly Used Pressure Levels: 5N (2kPa), 50N (20kPa), 500N (200kPa)
Pressure Sensor: 0~0.5MPa±0.1kPa Air Pump: 0.8MPa
The Servo Cylinder Is Used For Constant Pressure: 0~0.5MPa±1kPa

Product Description

D001 Geosynthetics Thickness Tester









D001 Geosynthetics Thickness Tester

This instrument is used to test the thickness of geotextile, composite geotextile and related products under specified pressure. Comply with the current national standards for the transportation industry, water conservancy and hydropower industry.
The thickness of geotextile refers to the distance between the front and back of the geotextile under specified pressure.
technical parameter
1. Conventional thickness: the thickness of the sample measured under a 2kPa press block.
2. Compact area: 25cm2.
3. Test force: three commonly used pressure levels: 5N (2kPa), 50N (20kPa), 500N (200kPa), with an accuracy of 0.1kPa.
4. The servo cylinder is used for constant pressure 0~0.5MPa±1kPa, and the constant load can be set
5. Pressure sensor: 0~0.5MPa±0.1kPa.
6. Displacement sensor: the thickness of the collected sample varies from 0 to 12.7mm±0.01mm
7. Air pump: 0.8MPa

Automatic collection geosynthetic material thickness tester (air pressure) TXT-A
On the basis of the TXT model, the automatic collection function is added: the test data is fed back to the computer through the data collection box and sensor; the upper computer software collects display, record, time, and deformation in real time, saving labor and improving efficiency.
