Product Description

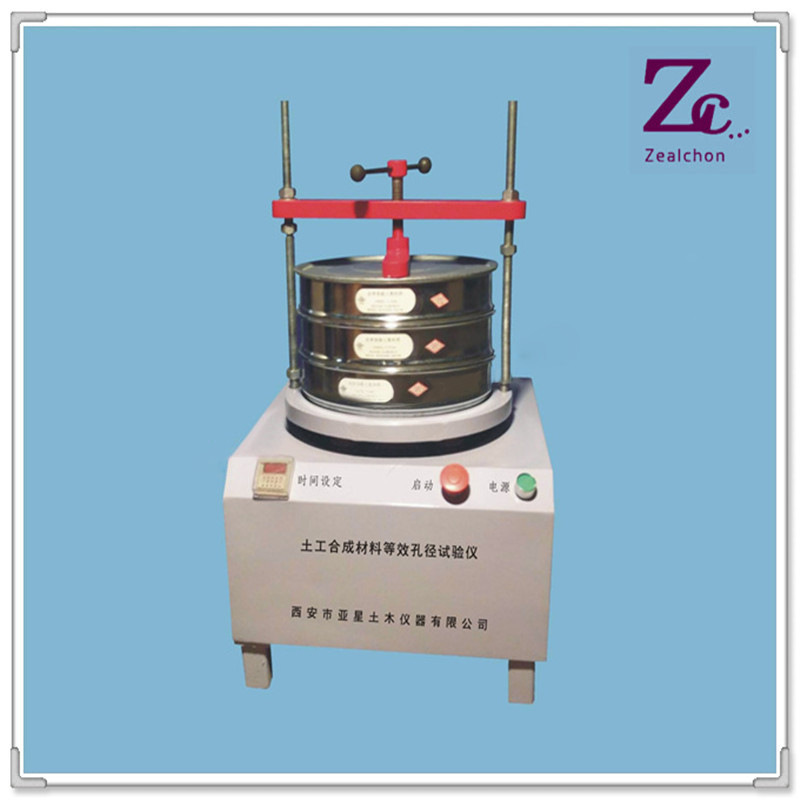

D006 Geosynthetic Materials Equivalent Aperture Tester
The dry sieve method was used to determine the pore size of the geotextiles and composite geotextiles.
Technical Parameters
1. Timer: It can stop for 1 ~ 9999 minutes according to the set working time.
2. Transverse vibration frequency: 227 times / min
3. Turning radius: 12mm ± 1mm
4. Vertical vibration frequency: 48 times / min
5. Amplitude: 8mm ± 2mm
6. Swing width: 25mm
7. Voltage: 380V 220V Power: 750W 50Hz
8. Weight: 80kg
8. Test sieve (optional): Φ200mm (Φ300mm), including geotextile foot (the inner bottom of the screen is pressed to prevent particles from remaining)
9. Dimensions: 600mm × 400mm × 880mm
