Product Description

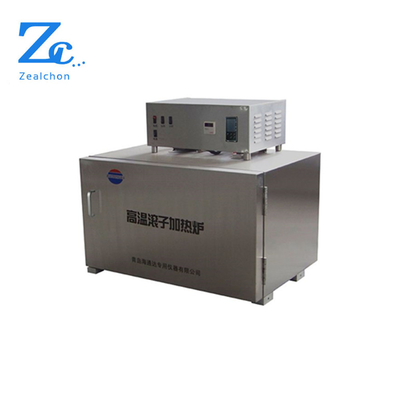

GRL-BX3 Digital Display Automatic Portable Aging Roller Oven for Drilling Fluids
Specifications : GRL—BX3
no name specification
1 Power supply 220V±5% 50Hz
2 Motor power 120W
3 Heating power 500W
4 Temperature range used 0℃~300℃
5 Temperarture precision ±5℃
6 Roller speed 50r/min,
7 Flow rate of sample in the cell 0.16 m/s,
8 Quantity and capacity.of aging cell 2*500ml (option)
9 Working volume 300×260×210mm
Valid date 12.31.2014
10 Overall dimension 520×460×400mm
Technical parameters: Working temperature: 50℃-300℃ Roller rotation speed: 112±5r/min Heating
efficiency: 500W Working area: 300×250×220mm Overall size: 660×334×270mm
Purpose & characters: The temperature control part of heating furnace adopts the digital electric
regulator. Display accuracy of digital LED is high. The temperature can be set directly. It is easy to operate
and carry for its small volume. It can be used to research into the basic ion exchange reaction (Ga +
disposed slurry) in the newly prepared slurry and determine the stability of adjuvant in slurry (such as all
kinds of thinner and organic glue). It can also be used to mix the chemical medicine, liquid and powder
substance and remove the gas from the liquid.
