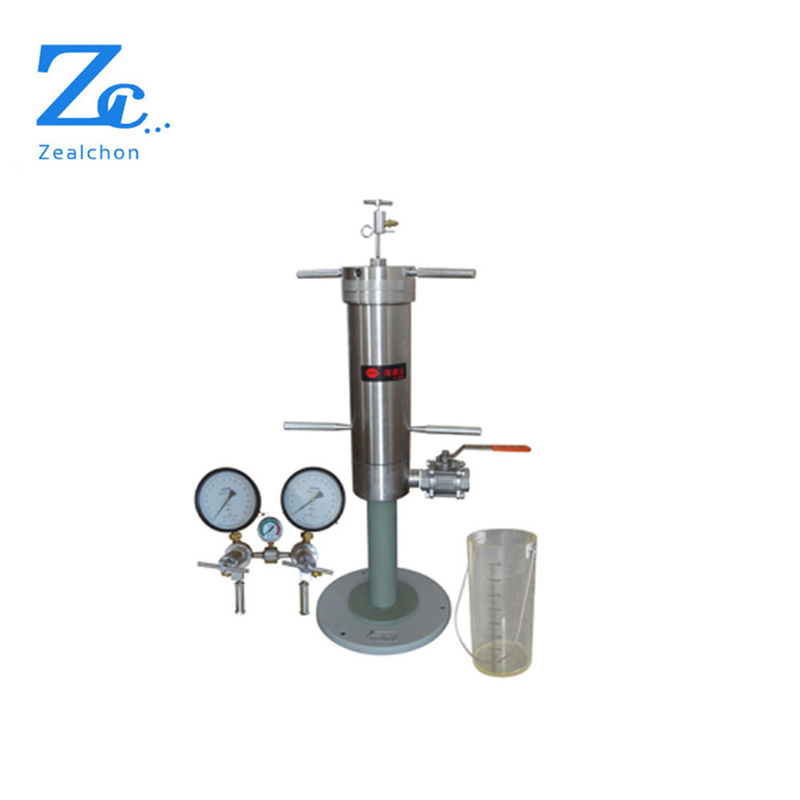

QD-2 Lost circulation material experiment device

QD-2 Lost circulation material experiment device

QD-2 Lost circulation material experiment device

Product Details:

Place of Origin: China
Brand Name: zealchon
Certification: ISO CE
Model Number: QD-2

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $1500
Packaging Details: wooden box
Delivery Time: 7days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100sets/month
Contact Now
Detailed Product Description
Cylinder Capacity: 4000ml Air Source: Nitrogen
Working Pressure: (1000 ± 10)psi Gap PlateSpecification: No.1~No.6(The No.6 Is A Full Size Ring)

Product Description

QD-2 Lost circulation material experiment device









QD-2 Lost circulation material experiment device





According to API, Lost circulation material experiment device QD-2 adds lost circulation pressure reverse exhaust device to test reverse destroying plugging force so as to study lost circulation materials structure strength and provide reliable basis for choosing lost circulation materials. Besides, It has small volume, easy structure, convenient application and can simulate and test loss parameter in different conditions.





Working principle



In the selection of plugging material suitable when determining the material is very important for leakage plugging capacity loss layer, which changes with the pore size need plugging stratum, therefore must size on plugging material to be chosen, the instrument is mainly used to help to re build material for circulation to evaluate, through the use of a series gap plate and different size bed layer, therefore can effectively simulate all kinds of different strata, in order to determine the efficiency and plugging plugging formed before the formation of the leakage volume.





Main technical parameters



Name Technical parameters
Cylinder capacity 4000ml
Air source Nitrogen
Working pressure (1000 ± 10)psi
Gap plateSpecification No.1~No.6(The No.6 is a full size ring)
Plugging depth measurement/span> 0~77mm













Detailed Images



Trade Shows





Packing and Shipping







After-Sales Service



Certifications





Contact Us





Service:



1. Warranty 1 year of replacement and return.



1, Providing factory visit and study, technical training



2, 24-hour technical support by e-mail or phone



3, Providing laboratory construction program design guidelines



4, Providing product design and OEM service
