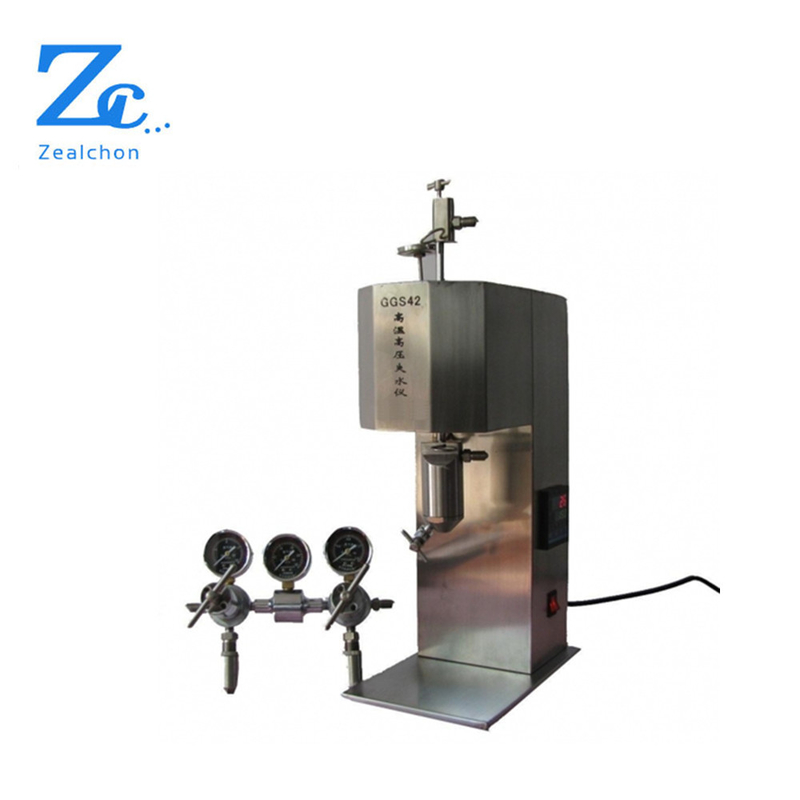

GGS42-2 HTHP FILTER PRESS for test filter loss of drilling fluid or cement slurry

GGS42-2 HTHP FILTER PRESS for test filter loss of drilling fluid or cement slurry

GGS42-2 HTHP FILTER PRESS for test filter loss of drilling fluid or cement slurry

Product Details:

Place of Origin: China
Brand Name: zealchon
Certification: ISO
Model Number: GGS42-2

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: $1500
Packaging Details: wooden box
Delivery Time: 7days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Power Supply: 220V±5% 50Hz .Power: 400W
Working Temperature: ~150°C(300F) Working Pressure Of Mud Sample Cup: 4.2MPa(600PSI)
Pressure Of Back-pressure Tester: 0.7MPa(100PSI)

Product Description

GGS42-2 HTHP FILTER PRESS for test filter loss of drilling fluid or cement slurry







High Temperature and High Pressure Static Filter Press Model GGS42-1



Description:


The Model GGS42-1 HTHP Filter Press is used to measure the filtration rate of drilling fluids under the simulation status of deep wells (HTHP).At the same time,it can be used to make filter cake under the HTHP conditions. It possesses the characters of high precision, small error, simple operation and accurate measured data. The apparatus has been used extensively in various oil-fields, research institutions and laboratories.

Technical parameters:
1.Power supply:220V±5% 50Hz
2.Power:400W
3.Working temperature:~150°C(300F)
4.Working pressure of mud sample cup:4.2MPa(600PSI)
5.Pressure of back-pressure tester:0.7MPa(100PSI)
6.Effective area of filtration:22.6cm2
7.Limiting pressure of mud sample cup:6MPa(870PSI)
8.Gas source:Nitrogen gas, carbon dioxide (Not contain oil and water)





GGS42-2 HTHP FILTER PRESS for test filter loss of drilling fluid or cement slurry



specification:





Name Technical parameters
Rated Frequency AC110/220V±5% 50/60Hz
Power 400W
Operating Temperature Room temperature to 210 ℃
Capacity 175ml
Environmental Temperature ≥18℃
Effective filtration area 22.6 cm2
Air source Nitrogen, carbon dioxide
