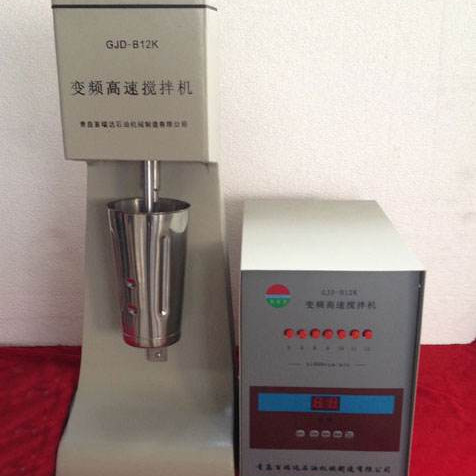

GJ-B12K series of variable frequency high-speed agitator is used for oil, exploration, chemical, and other
specialized laboratory equipment. Is mainly used for high-speed mixing a variety of drilling fluids used in oil
drilling, chemical reagent and so on. Is the ideal high-speed mixing equipment.
The series agitators have GJD-B12K, GJS-B12K-type. Using advanced frequency conversion technology
and microcomputer technology. On a regular basis, constant speed, single axis and multi-axis operation
and other functions at the same time. Mixing blades with API standard production. Simple operation, large
starting torque, stable speed, low noise and so on.
2. size
NO TYPE NAME CONFIGURATION
1 GJD-B12K SINGLE AGITATOR SINGLE AXIS.SINGLE CUP
2 GJS-B12K DOUBLE AGITATOR DOUBLE AXIS.DOUBLE CUPS
3.GJSS-B12K FOUR AGITATOR FOUR AXIS.FOUR CUPS
4. SPECIFICATION
iterm GJD-B12K GJS-B12K GJSS-B12K
power 220V±5% AC；50Hz
Power rate 200 W 200W×2 200W×4
No-load speed 3000,4000,6000,8000,10000,11000,12000r/min
Volume of mixing 350ml 350ml×2 350ml×4
Timing scope 1～99min
Ambient temperature ～40℃；
Ambient humidity 10～85RH%
Service:
1. Warranty 1 year of replacement and return.
1, Providing factory visit and study, technical training
2, 24-hour technical support by e-mail or phone
3, Providing laboratory construction program design guidelines
4, Providing product design and OEM service
Related Equipment:
Asphalt sampler, asphalt furnace.
