Place of Origin: | CHINA |
Brand Name: | zealchon |
Certification: | ISO CE |
Model Number: | c133 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | $50 |
Packaging Details: | wooden box |
Delivery Time: | within 7days |
Payment Terms: | L/C, Western Union, T/T, MoneyGram |
Supply Ability: | 10 sets/ month |
Measuring Range: | 0.7-2.4g/cm³ | Measuring Accuracy: | 0.01g/cm³(0.1lb/gal) |
---|---|---|---|
Bowl Capacity: | 140cm³ | Outline Dimension: | 540×110×110 Mm |
Package Size: | 590×110×110 Mm |

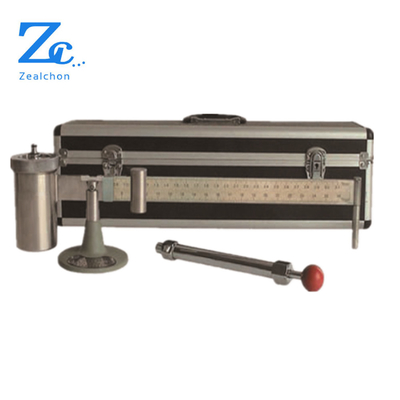

Mud density balance is a special instrument used to test drilling fluid and other fluid’s density. Its scale is single-format, scale is metric g/cm³. The instrument is lightweight and durable; easy to take with and read, which is used in some big oil field, geological survey and labs widely to analyze and test fluid’s density.
Measuring range | 0.7-2.4g/cm³ |
Measuring accuracy | 0.01g/cm³(0.1lb/gal) |
Bowl Capacity | 140cm³ |
Outline Dimension | 540×110×110 mm |
Package Size | 590×110×110 mm |
Net Weight | 0.8kg |
Gross Weight | 1.05kg |

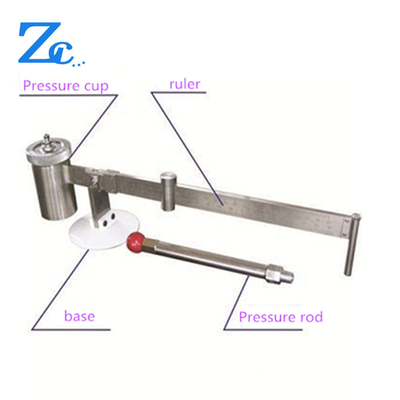

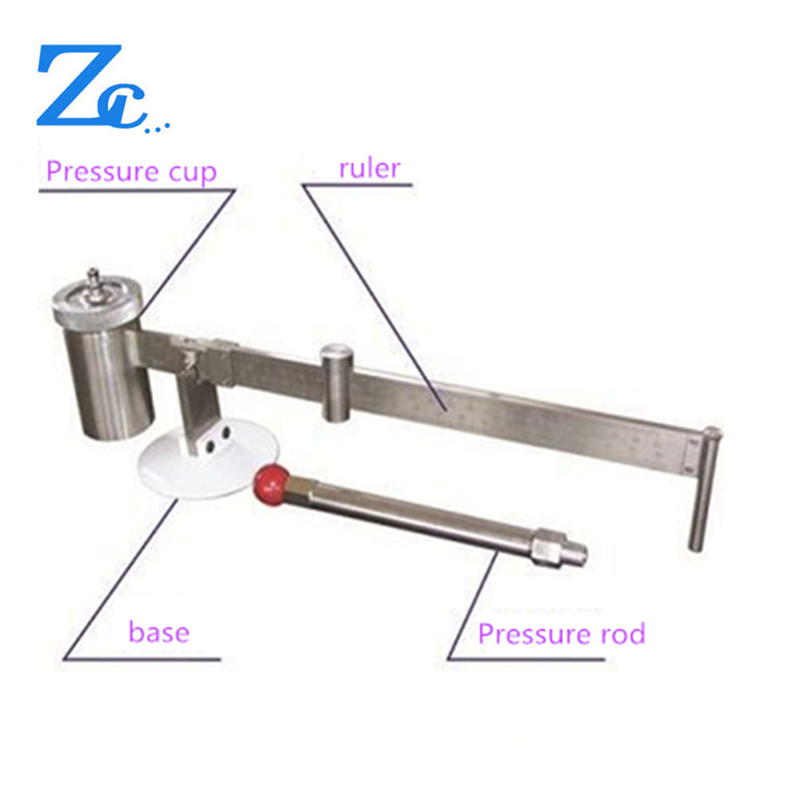

It is a scale with unequal arm. Its lever knife edge is put on the base of workbench. The lever on the left side is graduated Rider device. You can read the mud weight directly from the level when move the rider. balance of the lever is decided by Level bubble indicators at the top of the level.
