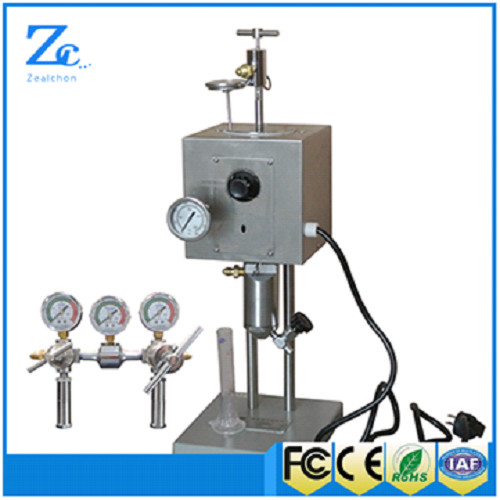

GGS42-2 HPHT high temperature and high pressure filtration instrument

GGS42-2 HPHT high temperature and high pressure filtration instrument

GGS42-2 HPHT high temperature and high pressure filtration instrument

Product Details:

Place of Origin: China
Brand Name: ZEALCHON
Certification: ISO
Model Number: GGS42-2

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $2000
Packaging Details: wooden box
Delivery Time: within 7days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Rated Frequency: AC110/220V±5% 50/60Hz Power: 400W
Capacity: 175ml Effective Filtration Area: 22.6 Cm2
Air Source: Nitrogen, Carbon Dioxide

GS42-2 HPHT high temperature and high pressure filtration instrument





Application:





HPHT filter press is an equipment which can simulate deep well to test filter loss of drilling fluid or cement slurry in high temperature and high pressure. Pressure and temperature have an important impact on controlling filtering fluid. So, HPHT filter loss testing is an important target in drilling fluid control technology. HPHT filter press is designed according to API, which has high accuracy, little repetitive error, easy operation and precise testing data. It is widely used in various oil field, scientific research rooms and labs.



GGS42-2 HPHT high temperature and high pressure filtration instrument



specification:





Name Technical parameters
Rated Frequency AC110/220V±5% 50/60Hz
Power 400W
Operating Temperature Room temperature to 210 ℃
Capacity 175ml
Environmental Temperature ≥18℃
Effective filtration area 22.6 cm2
Air source Nitrogen, carbon dioxide









Service:



1. Warranty 1 year of replacement and return.



1, Providing factory visit and study, technical training



2, 24-hour technical support by e-mail or phone



3, Providing laboratory construction program design guidelines



4, Providing product design and OEM service



GGS42-2 HPHT high temperature and high pressure filtration instrument





Related Equipment:




Asphalt sampler, asphalt furnace.



Packing and Shipping:



GGS42-2 HPHT high temperature and high pressure filtration instrument





Trade Show:



GGS42-2 HPHT high temperature and high pressure filtration instrument



Certification:



GGS42-2 HPHT high temperature and high pressure filtration instrument
