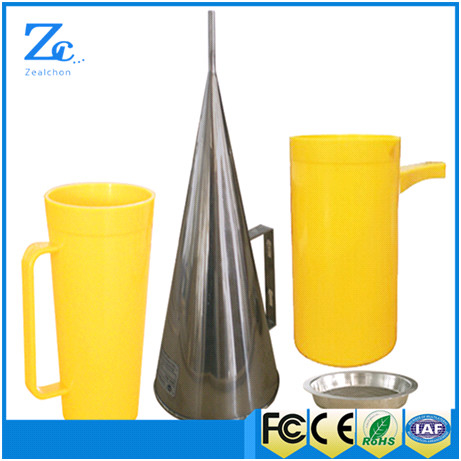

MLN-3A Marsh Funnel Viscometer used for measure drilling fluid's relative viscosity

MLN-3A Marsh Funnel Viscometer used for measure drilling fluid's relative viscosity

MLN-3A Marsh Funnel Viscometer used for measure drilling fluid's relative viscosity

Product Details:

Place of Origin: China
Brand Name: ZEALCHON
Certification: ISO
Model Number: MLN-3A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $1200
Packaging Details: wooden box
Delivery Time: 7days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Mesh Filter Diameter: 1.6mm(12 Mesh) Funnel Capacity: 1500±15ml
Accuracy: When To Funnel The Standard Of 1500ml Of Distilled Water, Out Of 946ml Standard Distilled Water In Time For The 26±0.5s

Application:



MLN Marsh funnel viscometer is a common instrument used for measure drilling fluid’s relative viscosity(compared with water) produced in accordance with API. Viscosity and gel strength are all related to fluid’s flow quality. It has been used for many years in this field. Its standard : 946ml standard distilled water is 26±5S in 20±2℃. HaiTongDa funnel viscometer is produced by sturdy and durable materials which can guarantee measurement accuracy. We design three different Marsh funnel configurations and every group is divided by plastic funnel and stainless steel. You can choose one according to your actual needs.





No.ModelConfiguration
136-02MLN-2Plastic funnel , Measuring cups , Measuring cups with a mouth
136-03MLN-2APlastic funnel , Measuring cup , Stainless steel cup
136-04MLN-3Plastic funnel , Measuring cups , Measuring cups with a mouth , Electronic stopwatch
136-12MLN-3AStainless steel funnel , Measuring cup , Measuring cup with a mouth
136-13MLN-4Stainless steel funnel , Measuring cup , Stainless steel cup
136-14MLN-4AStainless steel funnel , Measuring cup , Measuring cup with a mouth , Electr onic stopwatch





NameTechnical parameters
Mesh filter diameter1.6mm(12 mesh)
Funnel Capacity1500±15ml
AccuracyWhen to funnel the standard of 1500ml of distilled water,
out of 946ml standard distilled water in time for the 26±0.5s




ModelPackage SizeNet WeightGross Weight
MLN-2385×205×230mm0.8 kg1.25 kg
MLN-3385×205×230mm1 kg1.45 kg
MLN-4385×205×230mm1 kg1.45 kg
MLN-2A385×205×230mm1.15 kg1.6 kg
MLN-3A385×205×230mm1.35 kg1.8 kg
MLN-4A385×205×230mm1.35 kg1.8 kg





Service:


1. Warranty 1 year of replacement and return.

1, Providing factory visit and study, technical training

2, 24-hour technical support by e-mail or phone

3, Providing laboratory construction program design guidelines

4, Providing product design and OEM service

MLN-3A Marsh Funnel Viscometer used for measure drilling fluid's relative viscosity


Related Equipment:

Asphalt sampler, asphalt furnace.

Packing and Shipping:

MLN-3A Marsh Funnel Viscometer used for measure drilling fluid's relative viscosity


Trade Show:

MLN-3A Marsh Funnel Viscometer used for measure drilling fluid's relative viscosity

Certification:

MLN-3A Marsh Funnel Viscometer used for measure drilling fluid's relative viscosity
