Place of Origin: | China |
Brand Name: | ZEALCHON |
Certification: | ISO |
Model Number: | DLA-2 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | $2000 |
Packaging Details: | wooden box |
Delivery Time: | 7days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 100 sets/month |
Rotate Speed: | Adjustable And A Constant (0~150r/min) | Lateral Force: | 30~200N Continuous Adjustable (refer To Appendix) |
---|---|---|---|
Maximum Vacuum Degree: | -0.1MPa | Differential Pressure: | 0~0.69MPa |
Application:

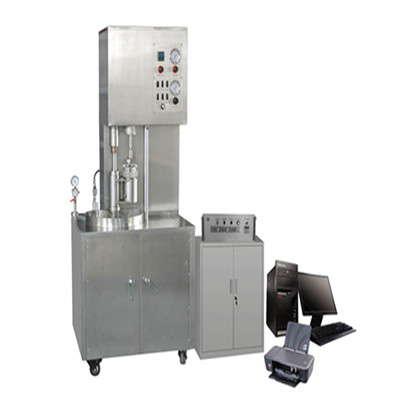

DLA-II Drilling fluid lubricating property analyzer is special equipment to evaluate drilling fluid’s lubricating property. It can test drilling tools’ lubricating property when touching mud cakes during the time of forming mud cakes in the surface of rocks. And It can analyze and evaluate different lubricant( liquid or solid) in improving lubricating property. Lubricating property of drilling fluid is very important to increase drilling speed, guarantee normal drilling and safety underground and reducing energy consumption. DLA-Ⅱ is very important for them. It can test lubricating property in time and it’s an important way to study and improve drilling fluid’s lubricating property. So it is necessary in drilling fluid company, manufacturing drilling fluid lubricant company and higher education institutes and scientific research places.
Name | Technical parameters |
Flow | Stepless speed |
Rotate speed | Adjustable and a constant (0~150r/min) Measuring accuracy is ±1 r/min |
Range | 0~5N.m |
Lateral Force | 30~200N continuous adjustable (refer to Appendix) |
Maximum vacuum degree | -0.1MPa |
Accuracy | ≤0.5%F·S |
Differential pressure | 0~0.69MPa |
Service:
1. Warranty 1 year of replacement and return.
1, Providing factory visit and study, technical training
2, 24-hour technical support by e-mail or phone
3, Providing laboratory construction program design guidelines
4, Providing product design and OEM service
Related Equipment:
Asphalt sampler, asphalt furnace.
