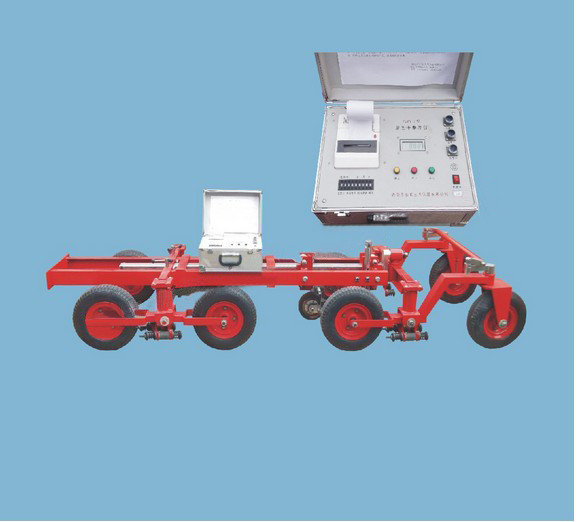

B002 Road Flatness Level Test: Road Pavement Profilometer

Product Details:

Place of Origin:	China
Brand Name:	zealchon
Certification:	ISO
Model Number:	B002

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$1500
Packaging Details:	wooden box
Delivery Time:	7days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100 sets/month

Contact Now

Detailed Product Description

Sampling Spacing:	0.1 M	The Maximum Speed:	25 Km/h
Appearance Size:	4061 * 600 * 600 (mm)	Shorten:	2450 Mm

B002 Road Pavement Profilometer

Application:

Continuous flatness gauge is used to measure the σof surface roughness , expressed in mm, calculatio
interval length is 1000 m and printing results is convenient (less than 100 m press close button to print the results).

B002 Road Flatness Level Test: Road Pavement Profilometer

specification:

Parameters	Details
Flatness meter testing baseline length	3 m error: ± 1%
Sensors	0-25 mm ± 0.01 mm
Working environment	- 10 ℃~+ 40 ℃
Sampling spacing	0.1 m
The maximum speed	25 km/h
Appearance size	4061 * 600 * 600 (mm)
Elongation	4061 mm
Shorten	2450 mm
Voltage	12 V Built-in battery, work for 12 h
Apparatus, weight	235 kg
Controller weight	6 kg, can be used in setting road number, pile number of mileage number
Sampling interval	0.1 m error: 0.1 mm
Resolution	0.01 mm
Out-of-tolerance setting	0-15 mm k + k - positive and negative value H ,unit,mm ;cumulative value s,unit, cm2
