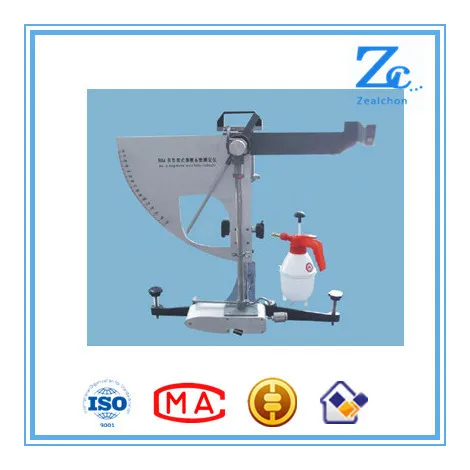

B017 British Pendulum skid Resistance Tester
Application:
The instrument is used to measure the resistance value of the asphalt pavement marking, stone, or other material (specimen)and to assess anti-sliding ability of the road and the road surface material (specimen) in wet or humid conditions.
Specification:
| Parameters |
Details |
| Pendulum Weight |
1500g±30g |
| Distance of the center of gravity of Pendulum |
410mm±5g |
| The positive static pressure of Gliding block (rubber) to pavement |
22.2N±0.5N |
| Rubber size |
6.35mm×25.4mm×76.2mm(pavement) |
| The gliding block size (rubber) Stone (coarse aggregate) used |
31.75mm×25.4mm×6.35mm |
| Sliding length On the road surface |
126mm±1mm |
| Rubber end to swing center distance |
510mm±2mm |
| Rubber Shaw hardness |
55±5 |
| Measure gauge |
30mm |
Service:
1. Warranty 1 year of replacement and return.
2, Providing factory visit and study, technical training
3, 24-hour technical support by e-mail or phone
4, Providing laboratory construction program design guidelines
5, Providing product design and OEM service
