A61 Large Digital marshall stability testing machine for asphalt testing machine

A61 Large Digital marshall stability testing machine for asphalt testing machine

    • A61 Large Digital marshall stability testing machine for asphalt testing machine
    • A61 Large Digital marshall stability testing machine for asphalt testing machine
    • A61 Large Digital marshall stability testing machine for asphalt testing machine
    • A61 Large Digital marshall stability testing machine for asphalt testing machine
    • A61 Large Digital marshall stability testing machine for asphalt testing machine
    • A61 Large Digital marshall stability testing machine for asphalt testing machine
  • A61 Large Digital marshall stability testing machine for asphalt testing machine

    Product Details:

    Place of Origin: China
    Brand Name: zealchon
    Certification: ISO
    Model Number: A61

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: $4000
    Packaging Details: wooden box
    Delivery Time: 7days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100 sets/month
    Contact Now
    Detailed Product Description
    Instrument Load Rating: 30 KN Load Sensor Rising Speed: 50 Mm/min
    Motor Power: 750 W, 220V Displacement Sensor: 0 To 30 Mm, Precision 0.2% FS

    Product Description

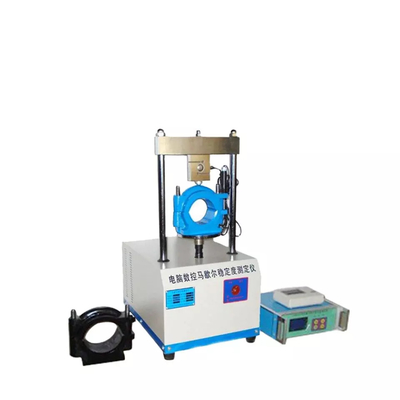

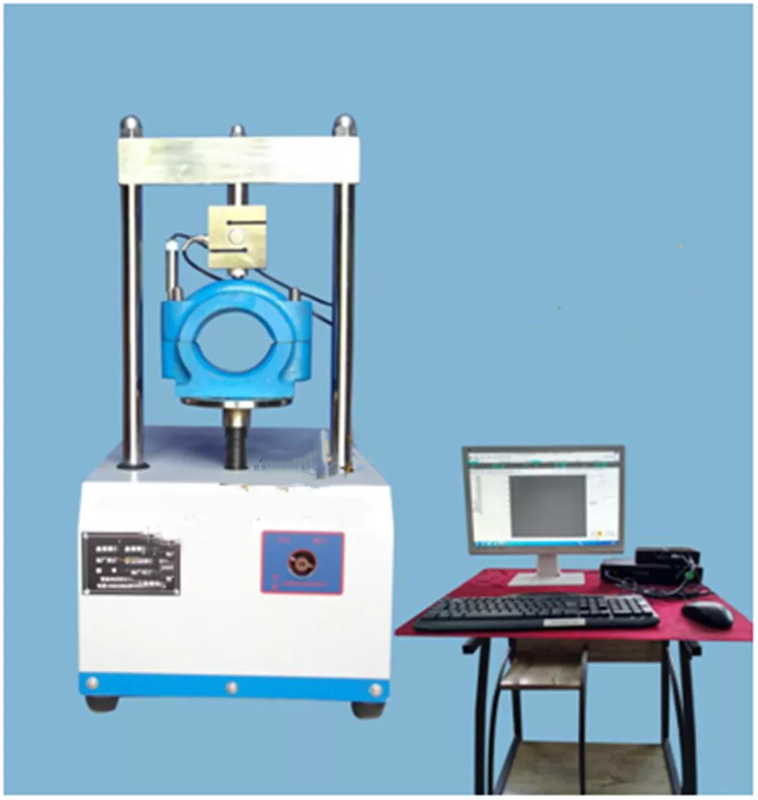

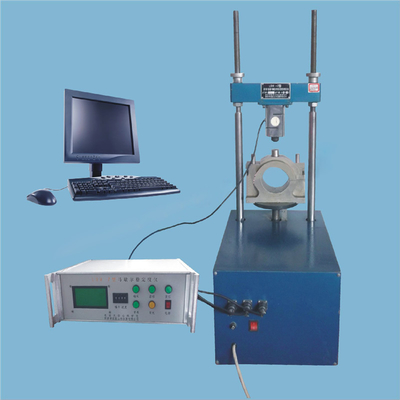

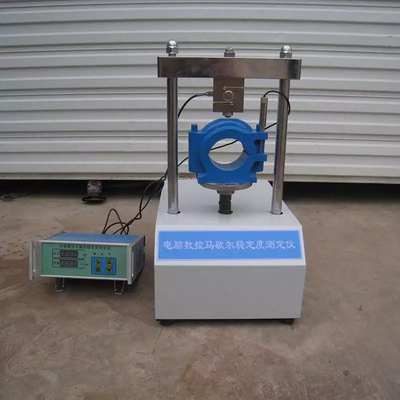

    A61 Large Digital marshall stability testing machine for asphalt testing machine
    A61 Large Digital marshall stability testing machine for asphalt testing machine
    A61 Large Digital marshall stability testing machine for asphalt testing machine
    Specification
    A61 Automatic Asphalt Marshall Stability compressive Tester

    Features

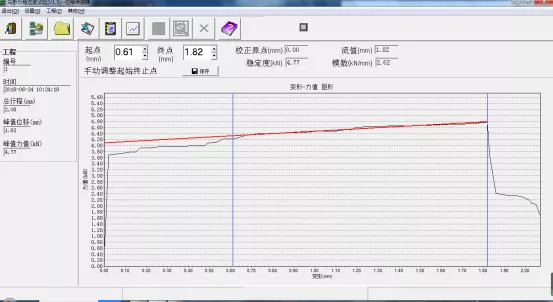

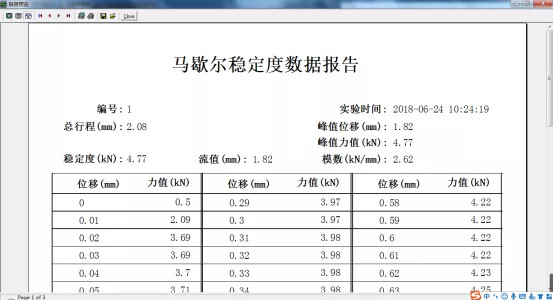

    Computer controls the test, deformation data and curves are storage by computer, can be printed.
    Powerful analysis software, automatic calculation of best asphalt dosage, can be printed.

    Technical specifications

    Lifting rate: 50±5mm/min
    Pressure head dia.: 101.6±0.2mm, 152.4±0.2mm
    Max. pressure: 50kn
    Accuracy: ±1%
    Flow value range: 0-15.00mm
    Accuracy: ±0.1mm
    Power supply: AC 220V, 50Hz

    item
    value
    Warranty
    1 year
    Certification
    ISO
    Customized support
    OEM
    Place of Origin
    China

    Shaanxi
    Brand Name
    Zealchon
    Model Number
    A61
    Power
    Electronic
    Instrument load rating
    30 and 50
    Rising speed
    50 mm/min
    motor power
    750 W, 2
    Displacement sensor
    0 to 30 mm, precision 0.2% FS
    Dimension
    350 mm * 600 mm * 970 mm
    Product name
    marshall stability compressive machine
    Application
    Asphalt
    Power supply
    220V 50Hz
    Packing & Delivery
    A61 Large Digital marshall stability testing machine for asphalt testing machine
    A61 Large Digital marshall stability testing machine for asphalt testing machine
    a. Inner package: dust-proof plastic bag b. Outer package: standard export wooden case with pallet c. Special package: according to buyer's requirements d. The packages suitable for international transport by sea, by air or by any other delivery methods
    Company Profile
    A61 Large Digital marshall stability testing machine for asphalt testing machine
    A61 Large Digital marshall stability testing machine for asphalt testing machine
    A61 Large Digital marshall stability testing machine for asphalt testing machine
    Xi 'an Zealchon electronic technology co., LTD, located in new technology industry development zone in Xi'an, an ancient city in China. It covers an area of 7500 square meters of building area. Zealchen specialize in civil engineering research and experimental apparatus; another is the semiconductor laser research and development.On one hand, currently based on civil experimental instrument research, the research team is founded by the personnel who come from Chang 'an university, Xi 'an polytechnic university, Xi 'an petroleum university, which has the top technology in this expertise. In addition, its research and development has accomplished a series of leading domestic and international standards, first-class technology of asphalt and asphalt mixture, road, bridge deck, geotechnical, structural testing instruments, even more, some of the products fill the blank of similar equipment at home and abroad, won national, ministerial, provincial awards.

    Our technical support team, marketing, and web development teams make their homes in china as well, and are dedicated to providing comprehensive customer support and services.
