Place of Origin: | China |
Brand Name: | ZEALCHON |
Certification: | ISO |
Model Number: | A63 |
Price: | $3000 |
---|---|
Packaging Details: | WOODEN BOX |
Delivery Time: | within 12 days |
Payment Terms: | t/t |
Supply Ability: | 100 set pr month |
Minimum Order Quantity: | 1 set |
Highlight: | Marshall stability tester,Marshall stability tester,Marshall stability tester |
---|

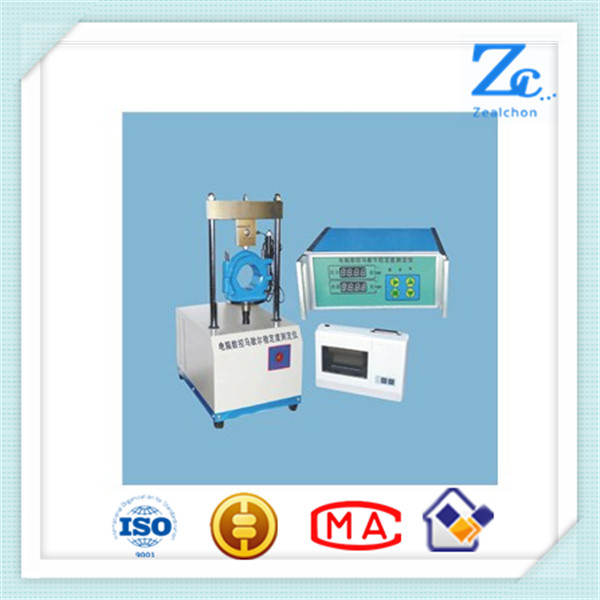

A063 Fully automatic Marshall stability tester
Application:
It’s suitable for the determination of the thermal stability of asphalt mixture and the ability to resist plastic deformation, stability and flow values. Provide accurate basis for mix proportion design of asphalt mixture. Specimen loaded clip and press the run key, the tester will automatically load, display the data process and
test results, print the peak load and flow value and can draw load and deformation curve, automatic unloading.
With a serial port and computer connection which can store up to 15 set of test results. It’s suitable for the size
of the two kinds of Marshall specimen test.
Specification:
Technical Parameters | |
Parameter Names | Details |
Pressure measuring range | 0 to 30 KN load sensor (suitable for small Marshall test) |
0 to 50 KN load sensor (suitable for big Marshall test) | |
Accuracy | 10 N |
Flow value measuring range | 0-15 mm |
Displacement sensor precision | 0.01 mm |
Load increase speed | 50± 0.5 mm/min |
Voltage | 220 V±20 V, 50 HZ |
The machine power | 700 W or less |
Weight | 100 kg |
Dimensions | 400 * 550 * 900 mm |
Service:
1. Warranty 1 year of replacement and return.
1, Providing factory visit and study, technical training
2, 24-hour technical support by e-mail or phone
3, Providing laboratory construction program design guidelines
4, Providing product design and OEM service
Related Equipment:
Asphalt sampler, asphalt furnace.
