Place of Origin: | China |
Brand Name: | ZEALCHON |
Certification: | ISO |
Model Number: | A78 |
Price: | $8000 |
---|---|
Packaging Details: | WOODEN BOX |
Delivery Time: | within 12 days |
Payment Terms: | t/t |
Supply Ability: | 100 set pr month |
Minimum Order Quantity: | 1 set |
Highlight: | Asphalt Mixture electro-hydraulic wheel crushed machines,Wheel Tracking Forming Machine,Wheel Tracking Forming Machine |
---|
Asphalt Mixture electro-hydraulic wheel crushed machines
This product is suitable for the production of physical mechanics in the laboratory method using wheels grind Asphalt Mixture test pieces, measuring Asphalt Mixture temperature rutting resistance, asphalt mix design properties such as high temperature stability Trials. Meet the People's Republic of China Ministry of Transportation industry standard "JTG E20-2011 asphalt and asphalt testing procedures, T0703-2011 Asphalt Mixture test pieces production methods (round grind Act)."
The product consists of a temperature control module, pressure control module, the number of Roller Compacted control module, hydraulic, servo cylinders, Roller Compacted wheels, the standard test mold and so on. You can set the temperature of Roller Compacted wheel, Roller Compacted and compacting the number of line loads.
halt Mixture test pieces, measuring Asphalt Mixture temperature rutting resistance, asphalt mix design properties such as high temperature stability Trials. Meet the People's Republic of China Ministry of Transportation industry standard "JTG E20-2011 asphalt and asphalt testing procedures, T0703-2011 Asphalt Mixture test pieces production methods (round grind Act)."
Technical Parameters
test mold Size: 300mm × 300mm × 50mm; 300mm × 300mm × 100mm
compaction line loads control range: 200 ~ 400 N / cm (factory setting is: 300 N / cm). Compaction line loads control accuracy: ± 2 N / cm
Roller Compacted Length: 300mm
Roller Compacted times can be set from 0 to 9999 times
Roller Compacted speed: 17 per minute round trip (one round trip per Roller Compacted about 3.5S)
Temperature control range: 50 ~ 200 ℃ (factory setting is: 100 ℃).
Temperature control accuracy: ± 5 ℃. Oil heating.
Rated power: 3.5kW 380V AC,
Ambient temperature: 5 ~ 40 ℃.
Dimension: 1340 × 700 × 2000mm
Weight: 600 kg

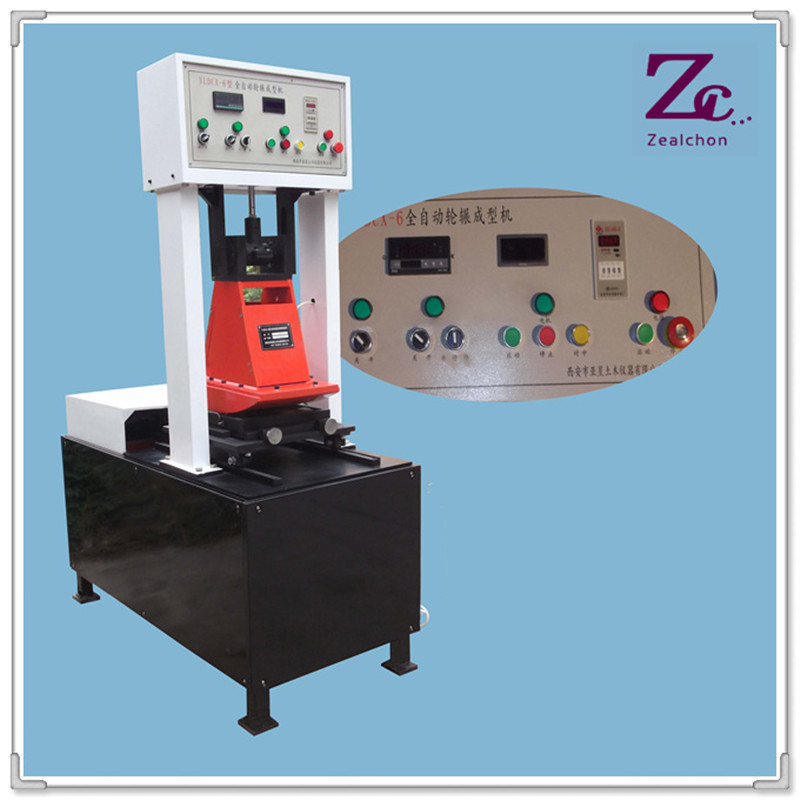

Product pictures:
The warranty is one year, within 1 year, if there is any problems, we will follow you to slove it, and could do the
replacement for the parts and accessoires.
if still does not working after checking, the machine could be send back.
Anyway, we will try our best to make sure your after-service is totally fufilled if there is any concern
