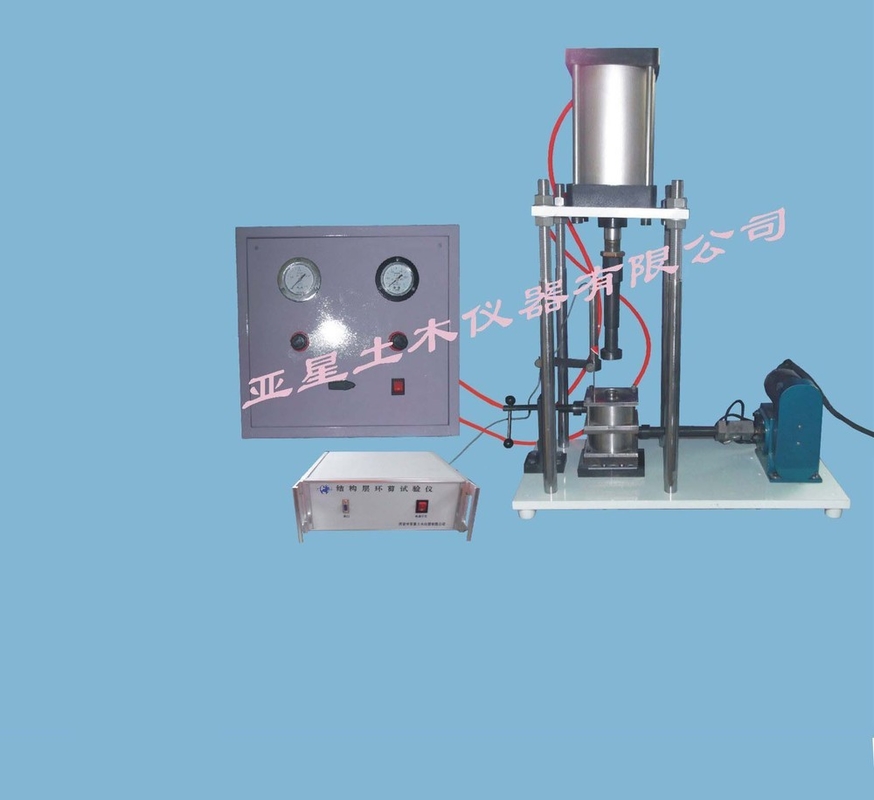

C062 YZJ - 2 manual hydraulic rock direct shear apparatus

C062 YZJ - 2 manual hydraulic rock direct shear apparatus

C062 YZJ - 2 manual hydraulic rock direct shear apparatus

Product Details:

Place of Origin: China
Brand Name: zealchon
Certification: ISO
Model Number: C062

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $15000
Packaging Details: wooden box
Delivery Time: 7days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Pressurized Hydraulic: 300KN Vertical Deformation: 0-12.7mm±0.001mm
Horizontal Shear Load: 500KN Horizontal Displacement Digital Display: 0-12.7mm±0.001mm

Description



-Test purposes in order to calculate the rock (a specimen) along the sliding surface normal stress and shear stress relationship, provides the basis of the calculation for the rock foundation.

-Direct shear test of rock is a set of the same class of rock specimens under different normal load horizontal shear, according to the coulomb's law expression to determine the rock shear strength parameters. This experiment is suitable for rock structure plane, such as the joint surface, bedding face, schistosity planes and cleavage surface, position) on the surface of the rock and concrete, mortar and bond direct shear test.





Technical indicators



Technical Parameters
Parameter Names Details
Test size ¢50 mm x 50 mm (square: 70 mm * 70 mm * 70 mm / 150 mm * 150 mm * 150 mm optional)
Pressurized hydraulic 300KN
Vertical deformation 0-12.7mm±0.001mm
Horizontal shear load 500KN
Horizontal displacement digital display 0-12.7mm±0.001mm
Work mode Hand hydraulic loading pump maximum load 60MPa
Sample shear box material Made by high strength steel
High cleaning machinery hydraulic oil NO.46





Product pictures:



C062 YZJ - 2 manual hydraulic rock direct shear apparatus







Company Information



Service:





1. Warranty 1 year of replacement and return.



1, Providing factory visit and study, technical training



2, 24-hour technical support by e-mail or phone



3, Providing laboratory construction program design guidelines



4, Providing product design and OEM service



C062 YZJ - 2 manual hydraulic rock direct shear apparatus





Related Equipment:




Asphalt sampler, asphalt furnace.



Packing and Shipping:



C062 YZJ - 2 manual hydraulic rock direct shear apparatus





Trade Show:



C062 YZJ - 2 manual hydraulic rock direct shear apparatus



Certification:



C062 YZJ - 2 manual hydraulic rock direct shear apparatus
