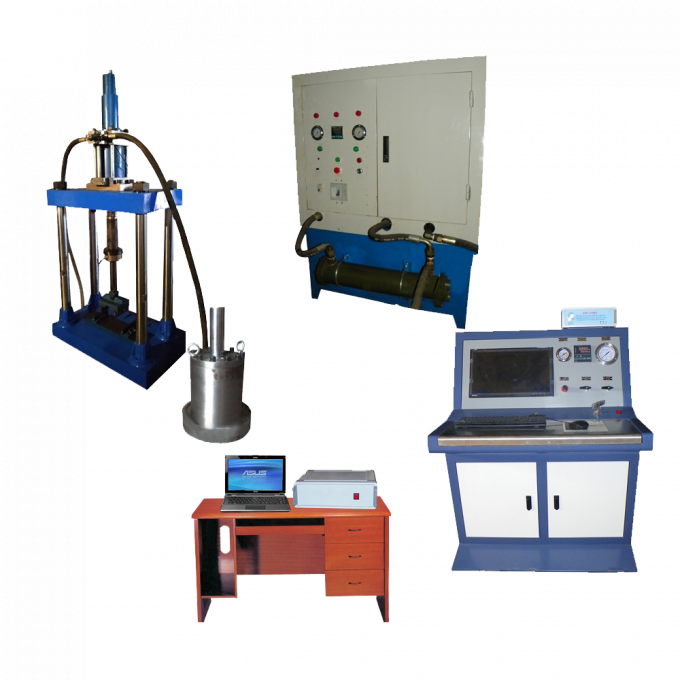

C143 Rock Dynamic Triaxial Rheological Testing Machine
The dynamic triaxial test of rock and concrete is the field of rock mechanics to study the mechanical characteristics and pore characteristics in various environments. Test rock uniaxial compression, triaxial compression, a variety of tests, can automatically collect, real-time storage, display compressive strength, rebound, creep, Poisson's ratio, seepage, triaxial shear, the software automatically draws the process of stress-strain Curve and sine wave graphics, storage. The servo controller has multiple measurement channels, which can control any one of the channels, and can switch the control channel without impact during the test. The controller is easy to operate, has strong fault tolerance, accurate measurement and complete protection functions. System composition: 1. The structure of the testing machine adopts four columns. In order to improve the function of the testing machine, various tests of three axes can be completed under the vertical servo actuator. The pressure chamber is pushed on the guide rail to load and unload samples in the three-axis pressure chamber. 2. Axial loading system: including main engine, force sensor, axial deformation sensor, radial and confining pressure deformation sensor, oil cylinder (actuator), displacement sensor, measuring controller and software, sine wave loading, servo oil source control . 3. Lateral (confining pressure) loading system: including triaxial pressure chamber, servo pressurization system, supercharger, 4. Microcomputer system: special software for testing Triaxial compression test:
1. Axial compression under constant confining pressure, multi-stage confining pressure sine wave waveform stress-strain cycle test. 2. Rock concrete triaxial compression, triaxial circulation, triaxial rheology, triaxial whole process 3. Rock concrete triaxial residual strength, elastic modulus, Poisson's ratio and other characteristic parameters 4. Software and control triaxial stress-strain waveform curve and various related data graphics of stored peak value 5. Back pressure infiltration and automatic water seepage system optional Technical Parameters: 1. Axial loading: ultimate test force: 1000kN±20N; dynamic detection force: 1kN-800kN; measurement accuracy ≤±1% FS 2. Axial deformation: 0~10mm; radial direction: 0~8mm±0.001mm; oil cylinder actuator stroke 0~200mm±0.1mm 3. Dynamic control waveform: sine wave 4. Axial control mode Stress and strain: 13 stress programs and waveforms can be edited. 5. Confining pressure: 0~50MPa, precision 0.1MPa, liquid crystal display, numerical control, adjustable, constant 6. Frequency: 0.1Hz～10Hz 7. Amplitude: 0.2～1.2mm 8. Force loading rate: 0.01-100kN/s 9. Displacement loading rate: 0.05-10mm/min 10. The computer measurement and control device software displays the measurement parameters of each channel in real time, and draws and displays various curves in real time. Data can also be stored and read by number. 11. Rock concrete sample size: ￠25×100 ￠50×100 ￠100mm×200mm optional 12. Pressure chamber material: high-strength special steel 13. Confining pressure medium: hydraulic oil 14. Control method: Pressure control Sine wave: ≤±1/5000 15. Put the tested sample into the deformation gauge, then connect the deformation gauge and the sample into the circular pressure chamber, add the confining pressure and axial pressure 16. Deformation gauge working temperature: -40-50℃±5℃ Rheological system: 1. Can complete triaxial rheological test 2. Continuous work is more than 100 hours 3. Fluctuation degree of rheological control (long time) test force ≤±0.1% 4. Pressure: ≤±0.05% 5. Deformation: ≤±0.1%
