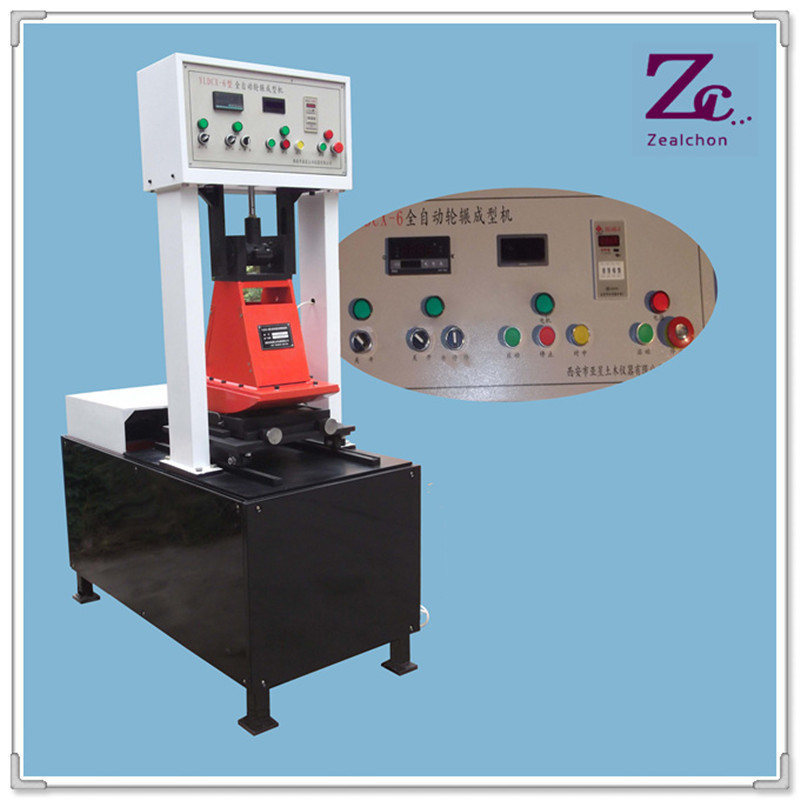

A078 Asphalt Hydraulic rutting test molding machine for asphalt testing machine

Product Details:

Place of Origin:	china
Brand Name:	zealchon
Certification:	iso
Model Number:	a78

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$5000
Packaging Details:	wooden box
Delivery Time:	7days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100 sets/month

Contact Now

Detailed Product Description

Test Mold Size:	300mm × 300mm × 50mm	Compaction Line Loads Control Range:	200 ~ 400 N / Cm
Roller Compacted Length:	300mm	Roller Compacted Speed:	17 Per Minute Round Trip (one Round Trip Per Roller Compacted Is About 3.5S)

A078 Asphalt Hydraulic Wheel Tracking device

Application:

This product is suitable for using wheels grinding method to make asphalt mixture test specimen in the laboratory, measuring asphalt Mixture temperature rutting resistance, and asphalt mix designproperties such as high temperature stability Trials. Meet thePeople's Republic of China Ministry of Transportation industry standard "JTG E20-2011 highway asphalt and asphalt mixture testing procedures, T0703-2011 Asphalt Mixture test pieces production methods (round grind Act)."

The product consists of a temperature control module, pressure control module, the number of Roller Compacted control module, hydraulic, servo cylinders, Roller Compacted wheels, the standard test mold and so on. You can
set the temperature of Roller Compacted wheel, Roller Compacted and compacting the number of line loads.

A078 Asphalt Hydraulic rutting test molding machine

Specification:

Technical Parameters
Parameters Name	Details
Test mold Size	300mm × 300mm × 50mm; 300mm × 300mm × 100mm
Compaction line loads control range	200 ~ 400 N / cm (factory setting is: 300 N / cm)
Compaction line loads control accuracy	± 2 N / cm
Roller Compacted Length	300mm
	Roller Compacted times can be set from 0 to 9999 times
Roller Compacted speed	17 per minute round trip (one round trip per Roller Compacted is about 3.5S)
Temperature control range	50 ~ 200 ℃ (factory setting is: 100 ℃)
Temperature control accuracy	± 5 ℃. Oil heating
Rated power	3.5kW 380V AC
Ambient temperature	5 ~ 40 ℃
Dimension	1340 × 700 × 2000mm
Weight	600 kg

Service:

1. Warranty 1 year of replacement and return.

1, Providing factory visit and study, technical training

2, 24-hour technical support by e-mail or phone

3, Providing laboratory construction program design guidelines

4, Providing product design and OEM service

A078 Asphalt Hydraulic rutting test molding machine for asphalt testing machine

Related Equipment:

Asphalt sampler, asphalt furnace.
