A48 Emulsified asphalt slurry seal load wheel rolling tester for asphalt testing machine

Product Details:

Place of Origin:	china
Brand Name:	zealchon
Certification:	iso
Model Number:	a48

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$1500
Packaging Details:	wooden box
Delivery Time:	7days
Payment Terms:	L/C, L/C, T/T, Western Union
Supply Ability:	100sets/month

Contact Now

Detailed Product Description

The Main Motor Speed:	1750 R/min	Reducer Gear Ratio:	40:1
Rolling Frequency:	44 Times/min	Rotate The Crankshaft Radius:	150 Mm

Packaging & Delivery

Packaging Details:

Standard Wooden Case and Carton/according to customer's requirement for Mixture Rolling Tester

Delivery Detail:

within 7days

parameters	details
The main motor speed	1750 r/min
Reducer gear ratio	40:1
Rolling frequency	44 times/min
Rotate the crankshaft radius	150 mm
Active foot wheel turn the horizontal distance of 610 mm
Rubber casters rubber hardness	60-70 - h RC + 1 HRC
Rubber wheel width	26.0 mm
Steel grit size within the framework	38 * 355 * 5 mm
Four electronic counter, compaction times can be set.
the thickness of sample	3 mm to 5 mm 6 mm to 8 mm to 10 mm to 6.4 mm to 12.7 mm on demand to choose
Tester internal dimension	50 mm x 380 mm
Tester length * width * height:	1600 mm * 460 mm * 460 mm

Emulsified asphalt slurry seal load wheel rolling tester

The tester is in line with the industry standard of the People's Republic of China "regulations of highway engineering asphalt and asphalt mixture test JTG E20-2011", and comply with industry standard of the People's Republic of China "the micro table place and slurry seal technology guide.

Wheel load tester is used to measure the emulsified bitumen slurry seal mixture of whether there is an excess of asphalt, which is to determine one of the biggest slurry mixture asphalt dosage, with wet wheel wear tester can determine the optimum asphalt dosage of emulsified bitumen slurry seal.

Rolling test:After molding of the slurry mixture, grind 1000 times under 57 kg load, simulate vehicle to roll, and then to spread hot sand on the specimen, rolling 100 times again, showing by absorption to sand amount per square meter.

Product pictures:

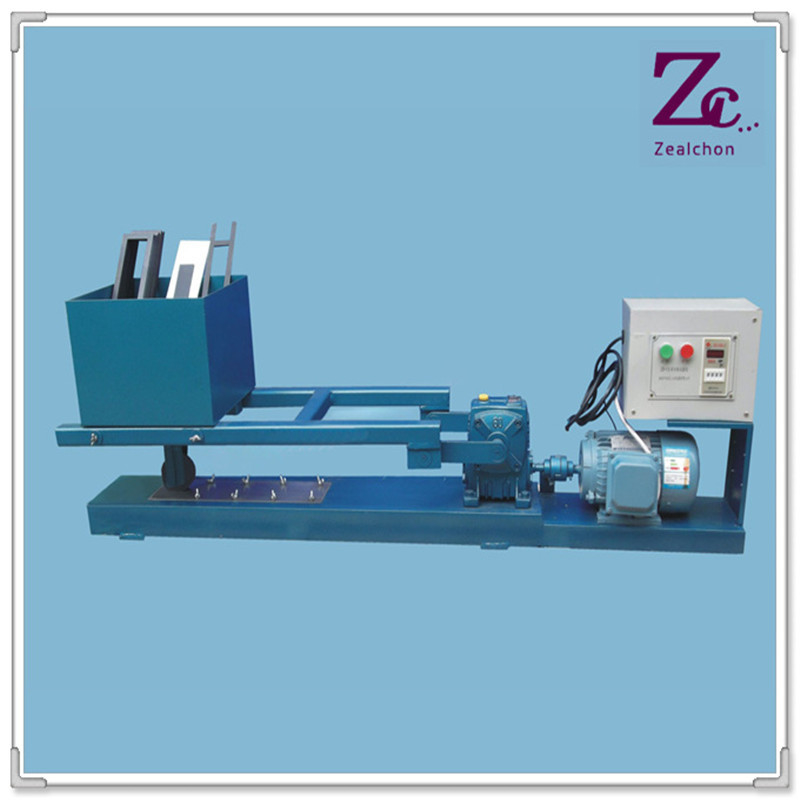

A48 Emulsified asphalt slurry seal load wheel rolling tester
