Place of Origin: | china |
Brand Name: | zealchon |
Certification: | iso |
Model Number: | GHF-16T |
Minimum Order Quantity: | 1 set |
---|---|
Price: | $1500 |
Packaging Details: | wooden box |
Delivery Time: | 7days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 100 sets/month |
Input Power: | 16kw | Melting Time: | 6 Minutes |
---|---|---|---|
Max Temperature: | 1500C--2000C. |

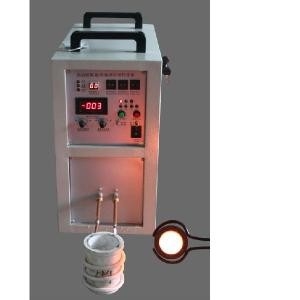

:Features of induction heating melting furnace:
1.Induction heating melting furnace use crucible high temperature to heat metal.then can melt,refine,casting,etc production.
2.Can melt platinum, rhodium and palladium,gold,silver,copper,steel,aluminium, Activated carbon, gold dust sands, electrolysis mud, gold and silver powder, tin ash tin slag etc.
3.Induction heating melting furnace can melt weight from 0.001KG--500KG per time.melting time from 5--40 minutes.max temperature will be 1500C--2000C.
4.Induction heating melting furnace have fixed type,push out type,auto pouring type,furnace up down moving type.
C:Induction melting Furnace advantage :
1.IGBT(INFINEON) technology, high conversion efficiency;
2.Energy saving 15%-30% , compared to SCR/KGPS technology Much more efficient than gas-fired and coal-fired method
100% start-up success rate; power factor > 95%
3.Perfect and complete protection functions, increasing machine's reliability & stability
4.No special foundations required, Low operating cost, Easy operation
5.Modular design, ease of maintaining and repairing
D:induction furnace Main applications:
Heat treatment: Hardening, annealing, tempering of auto parts, motorcycles, hardware tools, gears, sprockets, pneumatic, hydraulic accessories.
Hot forming: Diathermy of small workpiece, hot forging and hot rolling of twist drill.
Welding: The welding of turning/woodworking tools, drill bits, serrated blade, steel, copper wall, similar metal.
Metal melting: (Vacuum) molding, casting molding and evaporation coating of gold, silver, Fe, Al and other metals.
Other applications: The production of semiconductor single crystal, with hot, bottle sealing, sealing toothpaste, powder coating, metal embedded in plastic and so on
Standard induction furnace main parameter :
NO |
Steel, iron, nickel, chromium |
Gold, silver |
Copper, tin, antimony, lead, zinc and germanium |
Aluminum, silicon, titanium and magnesium |
Voltage |
Input power |
melting time |
HTM-15 | 200G | 2KG | 2KG | 500G | 220v | 7kw | ≤8minutes |
HTM-25 | 500G | 3-5KG | 3-5KG | 0.5KG | 380v | 15kw | ≤8minutes |
HTMM-15 | 2KG | 10KG | 10KG | 5KG | 380v | 15kw | ≤20minutes |
HTMM-25 | 4KG | 20KG | 20KG | 10KG | 380v | 25kw | ≤20minutes |
HTMM-35 | 8KG | 40KG | 40KG | 20KG | 380v | 35kw | ≤30minutes |
HTMM-45 | 15KG | 60KG | 60KG | 30KG | 380v | 45kw | ≤30minutes |
HTMM-70 | 25KG | 100KG | 100KG | 40KG | 380v | 70kw | ≤30minutes |
HTMM-90 | 45KG | 120KG | 120KG | 50KG | 380v | 90kw | ≤30minutes |
HTMM-110 | 60KG | 150KG | 150KG | 60KG | 380v | 110kw | ≤40minutes |
HTMM-160 | 100KG | 180KG | 180KG | 75KG | 380v | 160kw | ≤40minutes |
