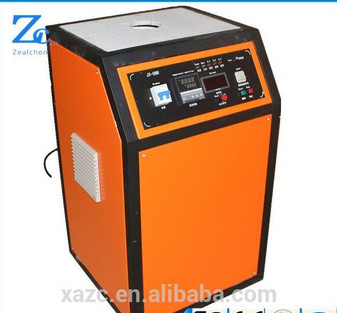

Melting electrical Furnace for Melting 0.5-5kg of Gold, Silver, Copper, Bronze

Melting electrical Furnace for Melting 0.5-5kg of Gold, Silver, Copper, Bronze

Melting electrical Furnace for Melting 0.5-5kg of Gold, Silver, Copper, Bronze

Product Details:

Place of Origin: China
Brand Name: ZEALCHON
Certification: ISO
Model Number: JXG-08T/16T

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $2000
Packaging Details: wooden box
Delivery Time: 7days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Input Voltage: 220VAC 50 Or 60HZ Single Phase Input Power: 8KW
Output Frequency: 30--60KHZ Maximum Melting Capacity Of Copper, Gold,silver Or Bronze: 0.5-2KG

asic Info.

Model NO.:JXG-08T/16T
Type:Steel Rolling Equipment
Certification:ISO, CE
Trademark:geelly china
Specification:CE
Origin:China
HS Code:85144000

Product Description

Main model:
GHF-08T With temperature display 1-3KG
GHF-16T With temperature display 1-5KG
List of Accessories In the Package
Item Name of machine or parts Specification Amount
1 JL-15/25KW Generator - 1 pc
2 Foot pedal 3 core 1 pc
3 Induction Coil - 1 set
4 Graphite and ceramic crucible   1 set
5 Instruction Manual - 1 pc
6 Product catalog - 2 sets






Pre-sale service:


Main features:
Ease of use: Just plug in the power and connect the water cooling system,
Digital PID temperature controller built into the unit which will prevent you from vaporizing the gold, keeping more money in your pocket.
Designed for ultra fast melting (normally in 3-5 minutes).
Light weight, portable, instant heat and up to 90% energy savings.
Precise control with digital temperature and current displays.
Graphite crucible with jacket included for immediate use.
Specifications Model Input voltage input power Output Frequency Maximum melting capacity of copper, gold,silver or bronze Size(CM) Weight(KG)
Desktop melting furnace GHF-08 220VAC 50 or 60HZ single phase 8KW 30--60KHZ 0.5-2KG 48*48*45 40
GHF-16 380VAC 50 or 60HZ three phase 16KW 0.5-5KG 48*48*50 45
With temperature display GHF-08T 220VAC 50 or 60HZ single phase 8KW 0.5-2KG 48*48*96 50
GHF-16T 380VAC 50 or 60HZ three phase 16KW 0.5-5KG 48*48*96 65
