A79 Bitumen Wheel Tracking Test Equipment (EN 12697-22 and AASHTO T324)

A79 Bitumen Wheel Tracking Test Equipment (EN 12697-22 and AASHTO T324)

A79 Bitumen Wheel Tracking Test Equipment (EN 12697-22 and AASHTO T324)

Product Details:

Place of Origin: China
Brand Name: zelachon
Certification: ISO
Model Number: A079

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 10000 per set
Packaging Details: wooden box
Delivery Time: 7days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 set /month
Contact Now
Detailed Product Description
Standard: AASHTO-T324 Sample Size: 80 X 340 Mm 300 X 300 Mm
Sample Height: 40-100 Mm Test Load Up To: 705 N

A79 Universal DWT bitumen Double Wheel Trackers AASHTO T324







Description



Simulation and testing of wheel track on road pavement following testing standards AASHTO T324 and EN 12697-22, Applies specified load, speed and temperature while the development of the rut profile is monitored at specified intravels during the test simultaneous testing of two samples computer controlled testing , data acquisition and reporting.

Performance

Permit testing to both AASHTO-T324 and EN 12697-22

Simultaneous testing of two samples

Test modes – Wet, Wet heat, Dry and Dry heat computer controlled for fully automatic operation including display of test result on computer screen

Sample size : 280 x 340 mm 300 x 300 mm

Sample height : 40-100 mm

Test load up to 705 N

Temperature range of water : 30-70 ºC

Uniformity and accuracy of temperature ± 1ºC

Measuring range of wheel track : 0-20 mm , 0.1 mm accuracy

Robust construction, stainless steel

Components

Main tester (Wheel Tracking Test Apparatus Air/Water)

Hood for safety and kit temperature control

Rubber wheel dia 203 x 50 mm with for EN 2 wheels

Steel wheel dia 203 x 47 mm with for AASHTO: 2 wheels

Clamps for prepared samples : 2 Sets

Clamps for cored samples : 2 sets

Computer and control/analysis software

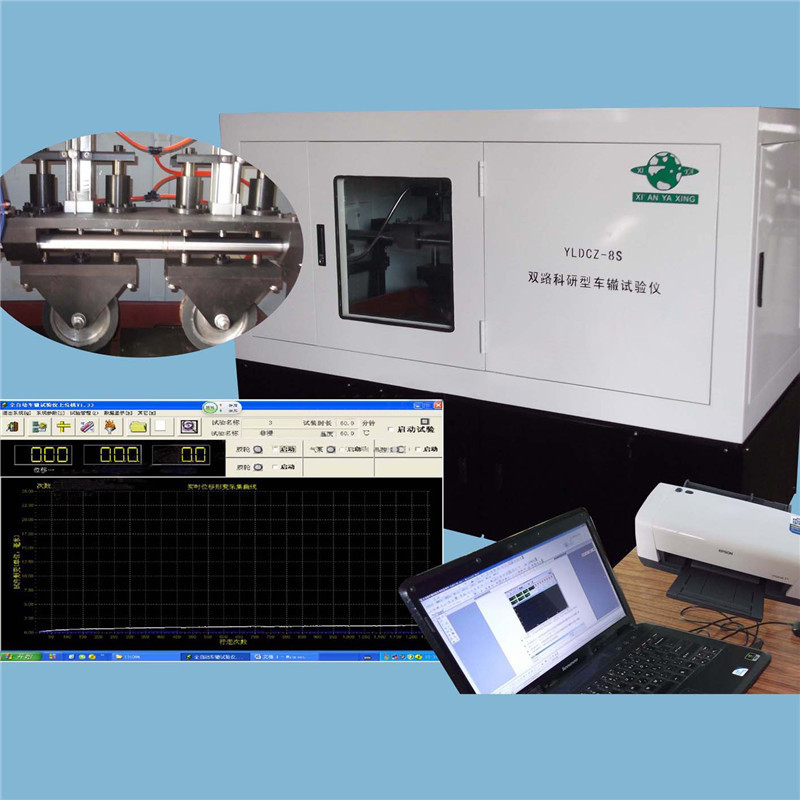

Product pictures:



A79 Bitumen Wheel Tracking Test Equipment (EN 12697-22 and AASHTO T324)









Service:





1. Warranty 1 year of replacement and return.



1, Providing factory visit and study, technical training



2, 24-hour technical support by e-mail or phone



3, Providing laboratory construction program design guidelines



4, Providing product design and OEM service



A79 Bitumen Wheel Tracking Test Equipment (EN 12697-22 and AASHTO T324)





Related Equipment:




Asphalt sampler, asphalt furnace.



Packing and Shipping:



A79 Bitumen Wheel Tracking Test Equipment (EN 12697-22 and AASHTO T324)





Trade Show:



A79 Bitumen Wheel Tracking Test Equipment (EN 12697-22 and AASHTO T324)



Certification:



A79 Bitumen Wheel Tracking Test Equipment (EN 12697-22 and AASHTO T324)
