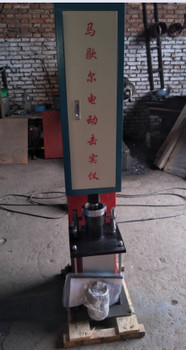

A59 Automatic asphalt marshall compactor
The instrument conforms to the law of the People's Republic of China,ministry of communications industry standard "JTG E20-2011 road asphalt and asphalt mixture test regulation, is a special equipment for asphalt
mixture experiment specimen molding. Apply to the standard compaction method,
For asphalt mixture laboratory physical and mechanical properties test, Such as Marshall test.
Specification:
Technical parameters
Parameter |
SizeZMJ-1 |
SizeZMJ-2 |
Hammer weight |
10210g±10g |
4536±9g |
Hammer bottom diameter |
149.4mm±0.1mm |
98.5mm±0.5mm |
Heavy hammer head
|
457.2mm±2.5mm |
457.2±1.5mm |
The compaction speed
|
60/min |
60/min |
compaction times
|
Can preset, setting range: 0-99, has the preset number memory function
|
Can preset, setting range: 0-99, has the preset number memory function
|
Specimen size |
152.4mm*95.3mm |
101.6mm*63.5mm |
Specimen mold
|
152.4.mm
115mm;
12.7mm;172mm
155.6mm
83mm
|
101.6mm
87mm;
120.6mm;
104.8mm
70mm
|
Power voltage
|
220V±10% 50HZ |
220V±10% 50HZ |
Power
|
370W |
370W |
Boundary Dimension |
540mm×540mm×1650mm |
540mm×540mm×1650mm |
Service:
1. Warranty 1 year of replacement and return.
1, Providing factory visit and study, technical training
2, 24-hour technical support by e-mail or phone
3, Providing laboratory construction program design guidelines
4, Providing product design and OEM service
A59 Automatic marshall compaction machine with two weight hammer
The instrument conforms to the law of the People's Republic of China,ministry of communications industry standard "JTG E20-2011 road asphalt and asphalt mixture test regulation, is a special equipment for asphalt
mixture experiment specimen molding. Apply to the standard compaction method,
For asphalt mixture laboratory physical and mechanical properties test, Such as Marshall test.
item
|
value
|
Warranty
|
1 year
|
Certification
|
ISO
|
Customized support
|
OEM
|
Place of Origin
|
China
|
|
Shaanxi
|
Brand Name
|
Zealchon
|
Model Number
|
A59
|
Power
|
Electronic
|
Hammer weight
|
10210g±10g
|
Hammer bottom diameter
|
149.4mm±0.1mm
|
Heavy hammer head
|
457.2mm±2.5mm
|
The compaction speed
|
60/min
|
Specimen size
|
152.4mm*95.3mm
|
Product name
|
Marshall Impact Compactor
|
Application
|
Asphalt
|
Standard
|
BS.EN.ASTM
|
a. Inner package: dust-proof plastic bag b. Outer package: standard export wooden case with pallet c. Special package: according to buyer's requirements d. The packages suitable for international transport by sea, by air or by any other delivery methods
