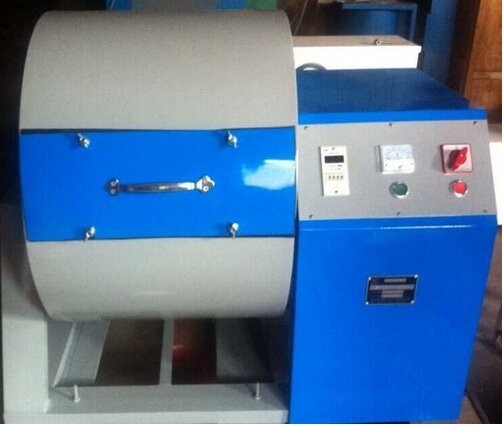

C068 Los Angeles Abrasion Testing Machine

C068 Los Angeles Abrasion Testing Machine

C068 Los Angeles Abrasion Testing Machine

Product Details:

Place of Origin: China
Brand Name: zealchon
Certification: iso
Model Number: c068

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 1000-1200 usd
Packaging Details: wooden box
Delivery Time: 7 days
Payment Terms: L/C, Western Union, T/T
Supply Ability: 100 sets/ month
Contact Now
Detailed Product Description
Voltage: 380V±5V Sample Cylinder Inner Diameter: 710mm±5mm
Inside Length: 510mm±5mm Sample Tube Rotary Speed: 30r/min-33r/min

C068 Angeles Abrasion Testing Machine,los angeles abrasion machine



Measureunder the standard condition,coarse aggregate (sand) resistance to friction and impact , abrasion loss expressed by percentage . Los Angeles abrasion loss method is an important index, especially for the stones using performance of concrete and asphalt mixture and grass-roots stone rutting resistance, compressive strength, abrasion resistance and durability are closely related. Usually small aggregate of abrasion loss is stiffness, durability, but contains more weak particle s concentration, weathering more serious, stone smash seriously after abrasion test, Los Angeles abrasion tester is an important waystochoose good stone.



Technical Parameters
Parameter Names Details
Voltage 380V±5V
Sample cylinder inner diameter 710mm±5mm
Inside length 510mm±5mm
Sample tube rotary speed 30r/min-33r/min
Steel ball wheel test
Diameter 46.8mm
Mass 390g—445g
The total mass of 12 abrasion test ball 5000g±25g





Packaging & Shipping

C068 Los Angeles Abrasion Testing Machine



Company Information



Packaging & Shipping

Service:





1. Warranty 1 year of replacement and return.



1, Providing factory visit and study, technical training



2, 24-hour technical support by e-mail or phone



3, Providing laboratory construction program design guidelines



4, Providing product design and OEM service



C068 Los Angeles Abrasion Testing Machine





Related Equipment:




Asphalt sampler, asphalt furnace.



Packing and Shipping:



C068 Los Angeles Abrasion Testing Machine





Trade Show:



C068 Los Angeles Abrasion Testing Machine



Certification:



C068 Los Angeles Abrasion Testing Machine
