|Place of Origin:||China|
|Minimum Order Quantity:||1 set|
|Packaging Details:||wooden box|
|Delivery Time:||7 days|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||100 sets/ month|
|Drum Speed:||30-33 Rpm||Capacity:||5,000 G|
|Net Weight:||882 Lbs.||Standards:||ASTM C131|

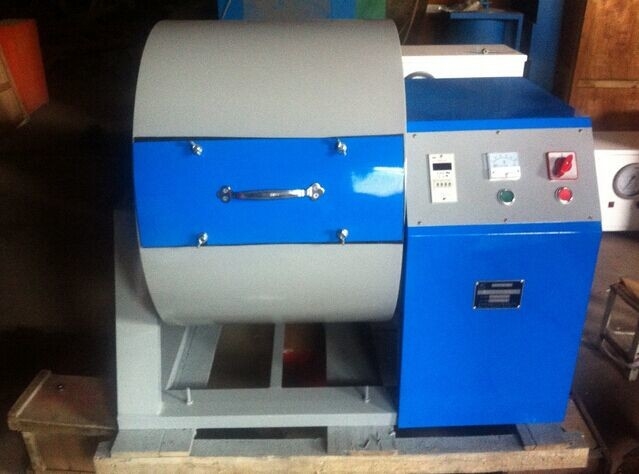

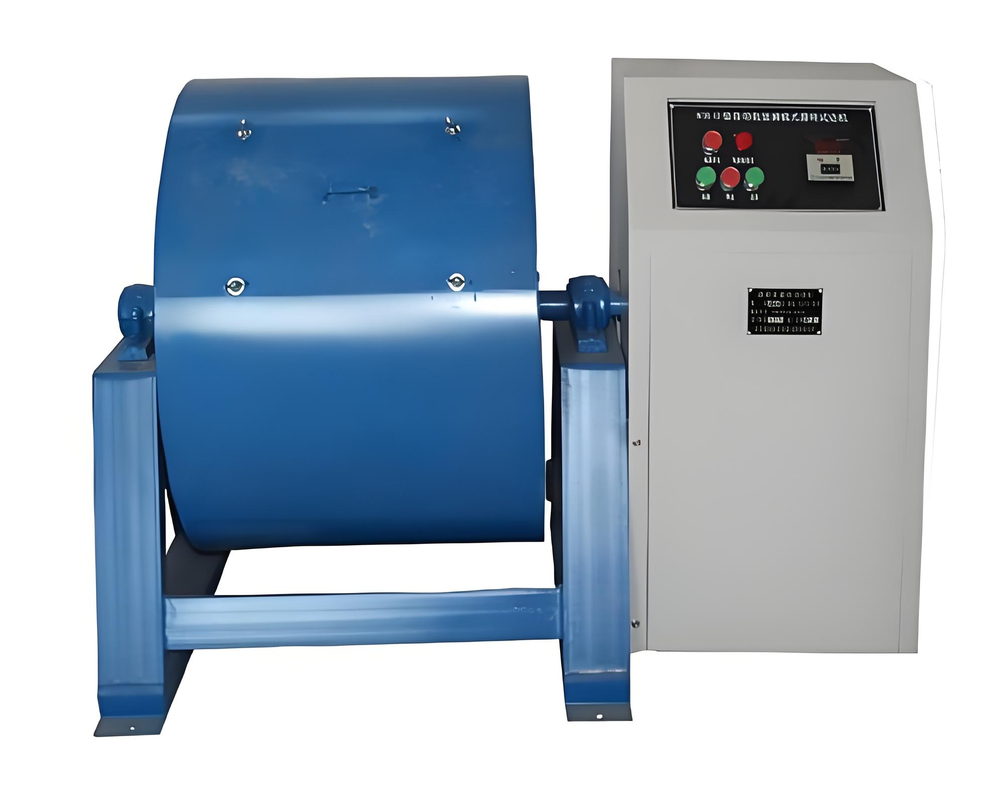

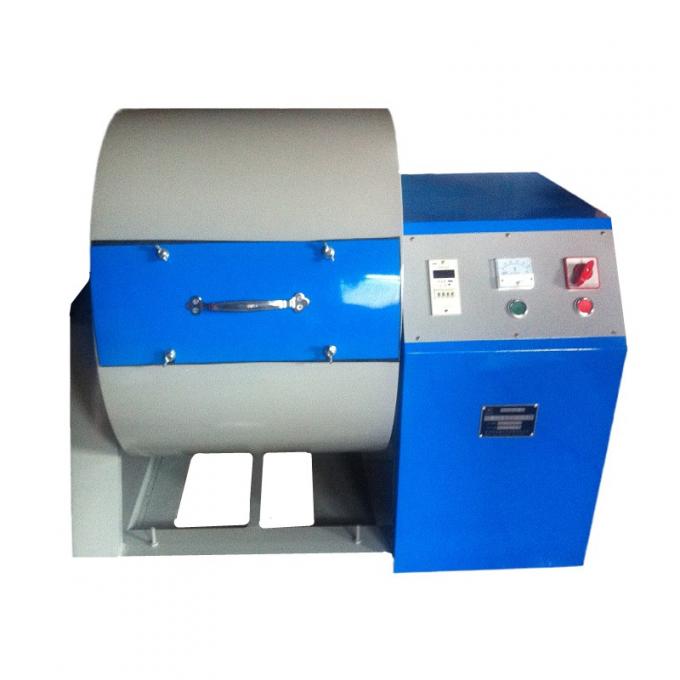

los angeles abrasion testing machine
Use: Aggregate resistance to abrasion; Should be housed in a soundproof and protection cabinet.
EN 1097-2, NF P18-573, ASTM C131
Capacity of 5,000 g each of aggregate and charge.
Drum Speed 30-33 rpm.
Welded structural steel frame
Adjustable; automatic shut-off; push-button reset and adjustment counter
Magnetic motor starter with overload protection and integral On-Off switches.
Dimensions of 980 x 920 x 980 mm (38.6" w. x 36.2" d. x 38.6" h).
Net weight 882 lbs. (400 kg).
Power: 220-240vAC, 60 Hz
Set of 12 abrasive charges conforming to ASTM Standards stated above.
1. Warranty 1 year of replacement and return.
2, Providing factory visit and study, technical training
3, 24-hour technical support by e-mail or phone
4, Providing laboratory construction program design guidelines
5, Providing product design and OEM service
Packing and Shipping:
Sample size: curvature inner diameter: 152.4mm ± 0.2mm, distance between upper and lower indenters 19.05mm ± 0.1mm; curvature inner diameter 101.6mm ± 0.08mm, distance between upper and lower indenters 19.05mm ± 0.1mm
Axial load: 0 ~ 50kN ± F.S 0.5%
Axial displacement acquisition: built-in displacement sensor range 0-15mm accuracy: 0.01mm
Stress rate: 1N ~ 5000N / S. Constant stress can be set
