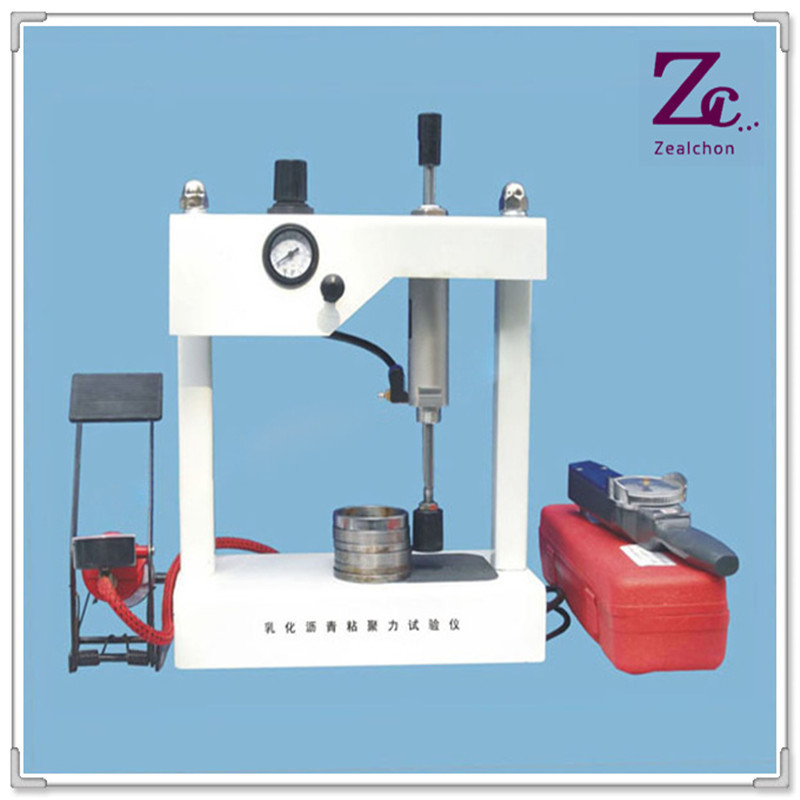

A53 Emulsified bitumen slurry seal cohesive force tester
Application:
This tester confirms to the ministry of communications , the ministry of water resources, the ministry of railways current standards of the People's Republic of China. It is used to determine time needed for the emulsified bitumen slurry seal mixture reach safety curing, which is time to open road after emulsified bitumen slurry seal paving the road.
Specification:
| parameters |
details |
| The pressure head diameter |
Φ 28 mm |
| head thickness |
28.6 mm |
| the rubber gasket at the bottom of the pressure head |
diameterΦ28.6 mm thickness 6.4 mm hardness 60 HRC |
| The pressure head pressure |
the pressure on the style stage is 128.5 N± 1.0 N head falling speed is not more than 8 cm/s |
| The torque wrench torque range |
not less than 3.5 N•m |
| Air pressure gauge range |
1 Mpa. |
| Ring mould: the inside diameter |
60 mm thickness of 6 mm respectively, 10 mm. |
| The small pump |
0 ~ 1 Mpa, the pressure is adjustable. |
Service:
1. Warranty 1 year of replacement and return.
2, Providing factory visit and study, technical training
3, 24-hour technical support by e-mail or phone
4, Providing laboratory construction program design guidelines
5, Providing product design and OEM service
