Place of Origin: | china |
Brand Name: | zealchon |
Certification: | iso |
Model Number: | A61 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | 1000-1200 usd |
Packaging Details: | wooden box |
Delivery Time: | 7 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 100 sets/ month |
Instrument Load Rating: | 30 KN Load Sensor | Rising Speed: | 50 Mm/min |
---|---|---|---|
Motor Power: | 750 W, 220V | Displacement Sensor: | 0 To 30 Mm, Precision 0.2% FS |

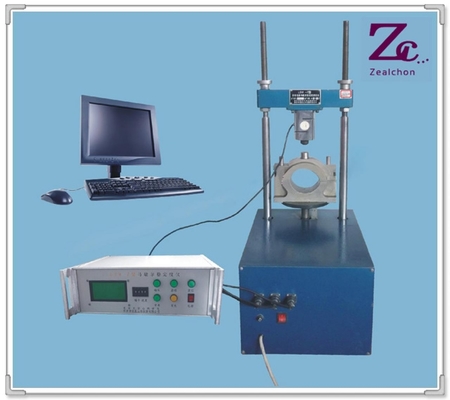

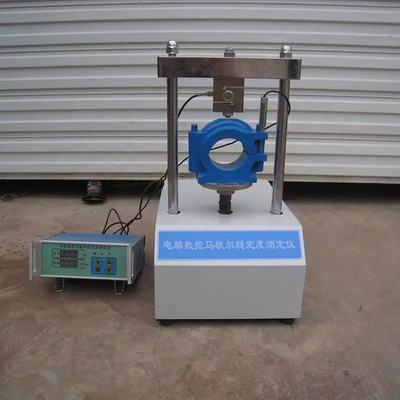

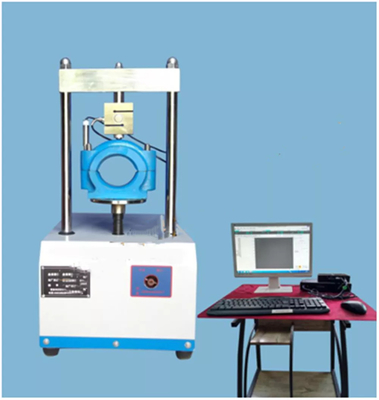

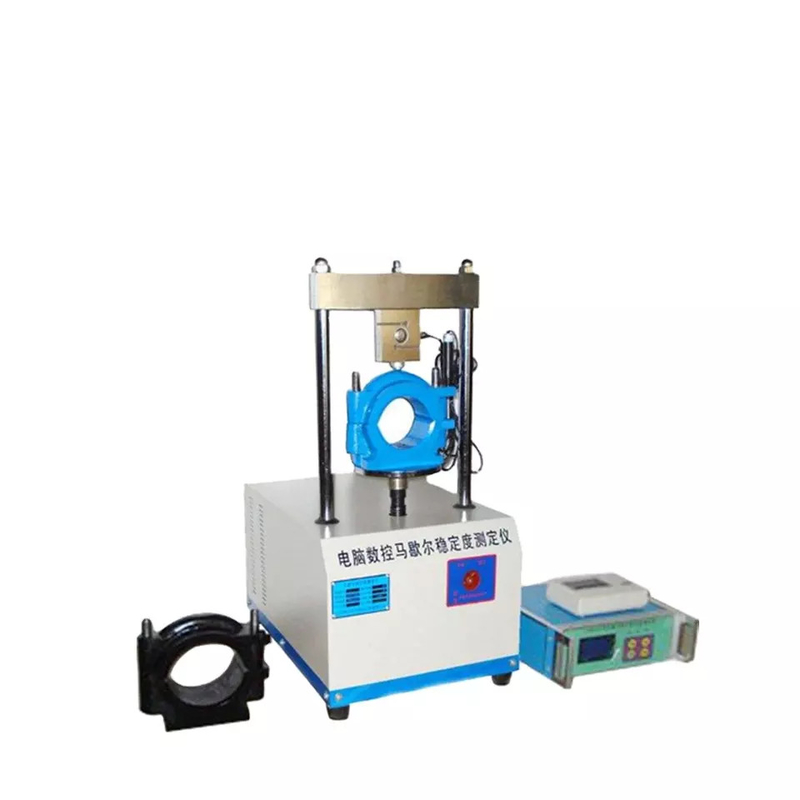

Digital marshall stability testing machine
Application:

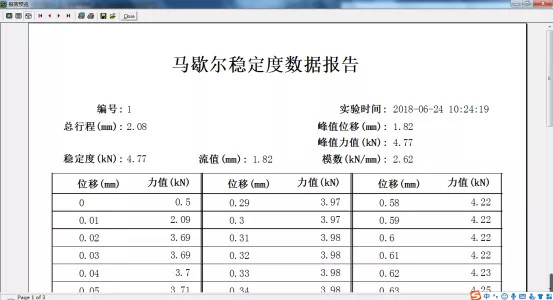

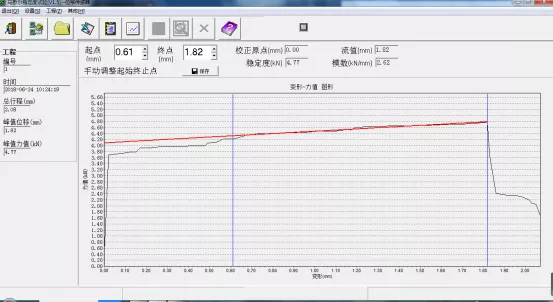

It is suitable for the determination of the thermal stability of asphalt mixture and the ability to resist plastic deformation,——stability and flow values. For the mix proportion design of asphalt mixture composition to provide accurate basis. This tester is the LED digital display, it can realize measurement of stability and flow values. The machine is equipped with the micro printer, for data and micro pattern printing. It’s suitable for the small diameter 101.6 * 63.5 of Marshall specimen test.
Technical Parameters | |
Parameter Names | Details |
Instrument load rating | 30 KN load sensor |
precision 0.5% FS | |
Also can chooose 50 KN sensor | |
Rising speed | 50 mm/min |
motor power | 750 W, 220V |
Displacement sensor | 0 to 30 mm, precision 0.2% FS |
Dimension | 350 mm * 600 mm * 970 mm |
Service:
1. Warranty 1 year of replacement and return.
1, Providing factory visit and study, technical training
2, 24-hour technical support by e-mail or phone
3, Providing laboratory construction program design guidelines
4, Providing product design and OEM service
Packing and Shipping:
Trade Show:
Certification:
