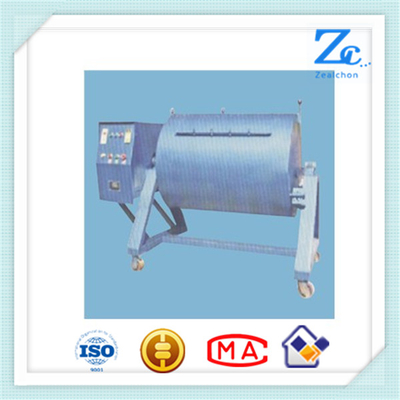

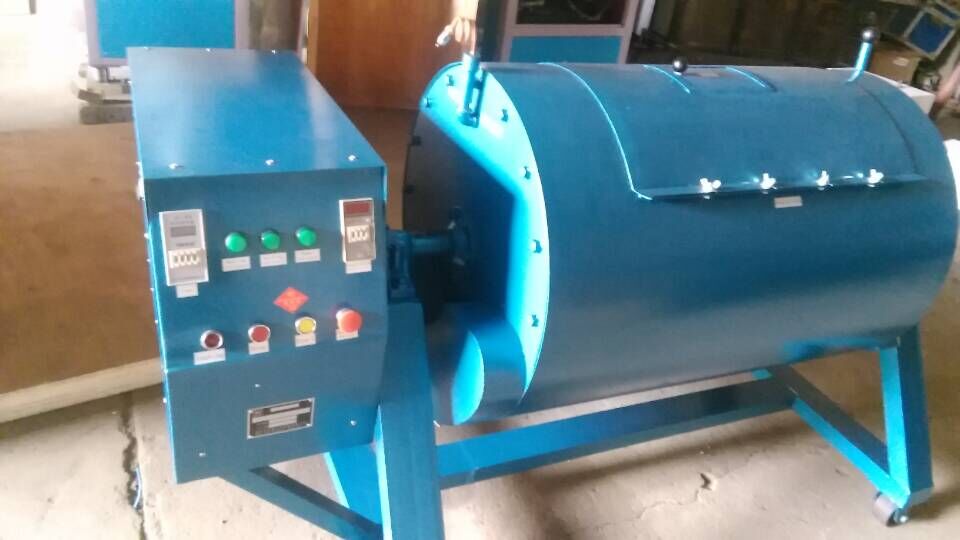

A054 laboratory asphalt mixer(Drum-type)
Application:
The instrument can be used to mix asphalt and modified asphalt and asphalt mixture in the mixing,
This machine is easy to operate, high mixing efficiency, small amount of residual and discharging is
convenient, easy to clean,The function of the electric control system including start, point to move,
stop, heating, timing control.Belong to the asphalt foam machine equipment
Specification:
| Parameters | Type BH-30 | Type BH-60 | Type BH-100 |
| Mixing capacity | 30L | 60L | 100L |
|
| Mixing time(can be set) | 1S~99H | 1S~99H | 1S~99H |
|
| Heating temperature | room temperature~300℃±2℃ | room temperature~300℃±2℃ | room temperature~300℃±2℃ |
|
| Heating method | oil heating | oil heating | oil heating |
| Agitator rotational speed | 35r/min | 35r/min | 35r/min |
|
| Motor Power | 1500W | 2200W | 3000W |
|
| Power voltage | 380V | 380V | 380V |
| Boundary Dimensions | 1600*1100*1300 | 1700*1200*1450 | 2300*1230*1570 |
Service:
1. Warranty 1 year of replacement and return.
1, Providing factory visit and study, technical training
2, 24-hour technical support by e-mail or phone
3, Providing laboratory construction program design guidelines
4, Providing product design and OEM service
Related Equipment:
Asphalt sampler, asphalt furnace.
