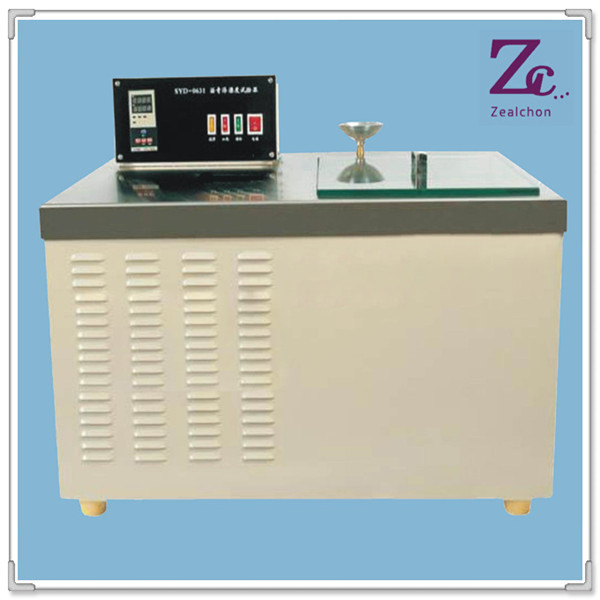

A30 Asphalt float Tester
Standard:ASTM D139
Application:
This apparatus is designed and manufactured according to the requirement of ASTM D139.It is used to test floatability degree of slow curing liquid petroleum distillation residues and coal tar pitch, etc.Floating degree of pitch is the time when specimen gradually softened until water break through, since put it in a certain temperature water tank of float apparatus, expressed in s. Without specify, liquid petroleum asphalt distillation residues test temperature is 50℃, coal tar pitch test temperature is 32 ° c or 50 ° c.
The tester not only can do the asphalt float test but also can be used as a constant temperature water bath.
Specification:
| Main Technical Indicators |
| Parameter Names | Details |
| Power supply | AC 220V 50Hz |
| Water bath capacity | Length 370x Width 300x Height: 300 (mm) |
| Water volume | 28L |
| Heating equipment | Electric heater, power 1300W |
| Refrigeration equipment | Refrigeration compressor |
| Temperature range | 5 ° c ~80 ° c |
| Temperature accuracy | ± 0.1 ° c |
| Wall thickness of floating disc | 1.4mm ± 0.1mm |
| Mass of floating disc | 9.8g ± 0.2G |
| wall thickness of copper tube | Mass 37.9G ± 0.2G |
| Mass of copper tube | 9.8g ± 0.2G |
| External dimensions | Length 750x Width 540x Height: 580 (mm) |
Service:
1. Warranty 1 year of replacement and return.
1, Providing factory visit and study, technical training
2, 24-hour technical support by e-mail or phone
3, Providing laboratory construction program design guidelines
4, Providing product design and OEM service
Related Equipment:
Asphalt sampler, asphalt furnace.
