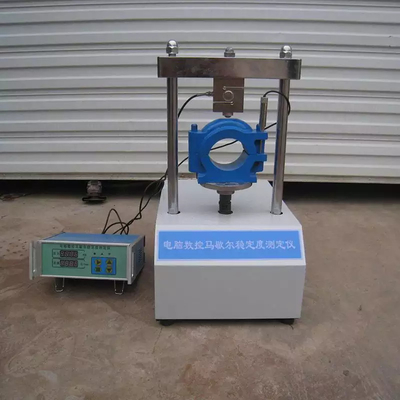

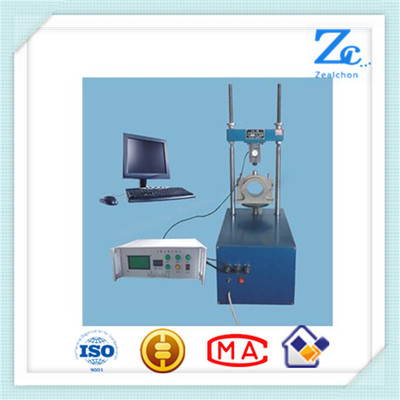

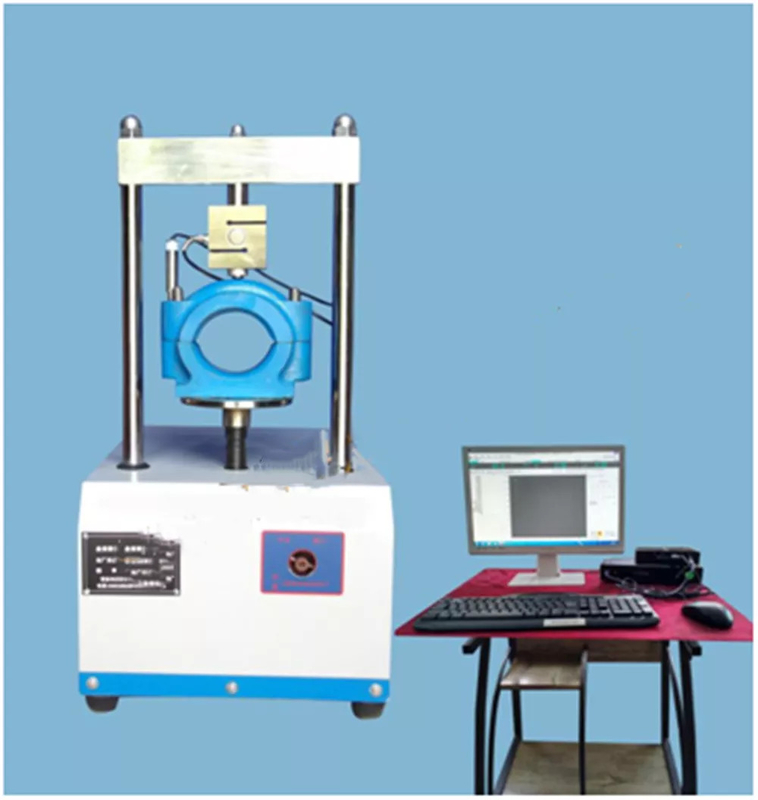

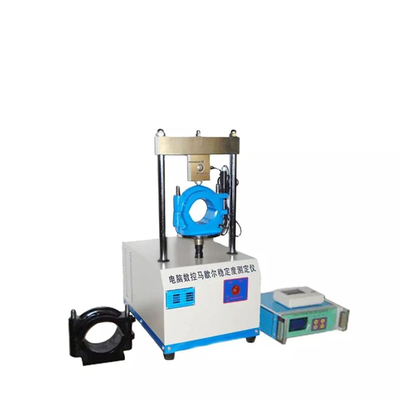

A61 Automactic Marshall Stability Test Apparatus(30KN AND 50KN)
Features

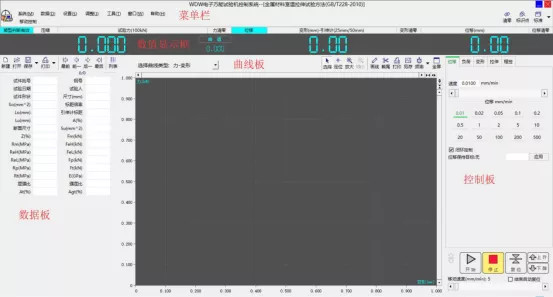

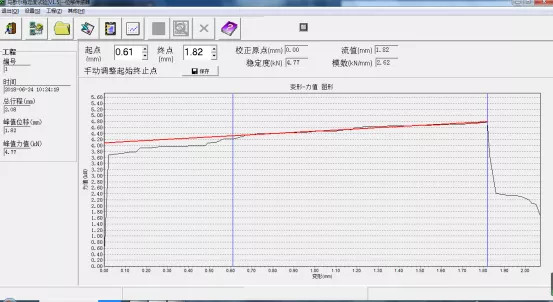

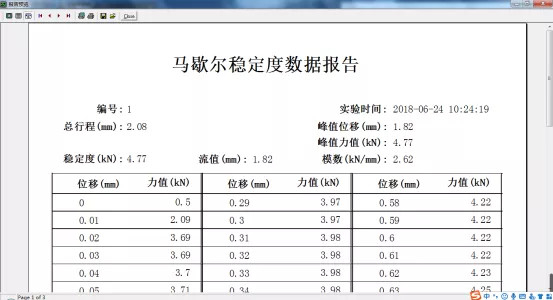

Computer controls the test, deformation data and curves are storage by computer, can be printed.
2. Powerful analysis software, automatic calculation of best asphalt dosage, can be printed.
Technical specifications
Lifting rate: 50±5mm/min
Pressure head dia.: 101.6±0.2mm, 152.4±0.2mm
Max. pressure: 50kn
Accuracy: ±1%
Flow value range: 0-15.00mm
Accuracy: ±0.1mm
Power supply: AC 220V, 50Hz
Specification:
|
Technical Parameters |
|
Parameter Names |
Details |
|
Instrument load rating |
30 KN load sensor |
|
|
precision 0.5% FS |
|
|
Also can chooose 50 KN sensor |
|
Rising speed |
50 mm/min |
|
motor power |
750 W, 220V |
|
Displacement sensor |
0 to 30 mm, precision 0.2% FS |
|
Dimension |
350 mm * 600 mm * 970 mm |
Service:
1. Warranty 1 year of replacement and return.
1, Providing factory visit and study, technical training
2, 24-hour technical support by e-mail or phone
3, Providing laboratory construction program design guidelines
4, Providing product design and OEM service
Related Equipment:
Asphalt sampler, asphalt furnace.
Packing and Shipping:
Trade Show:
Certification:
